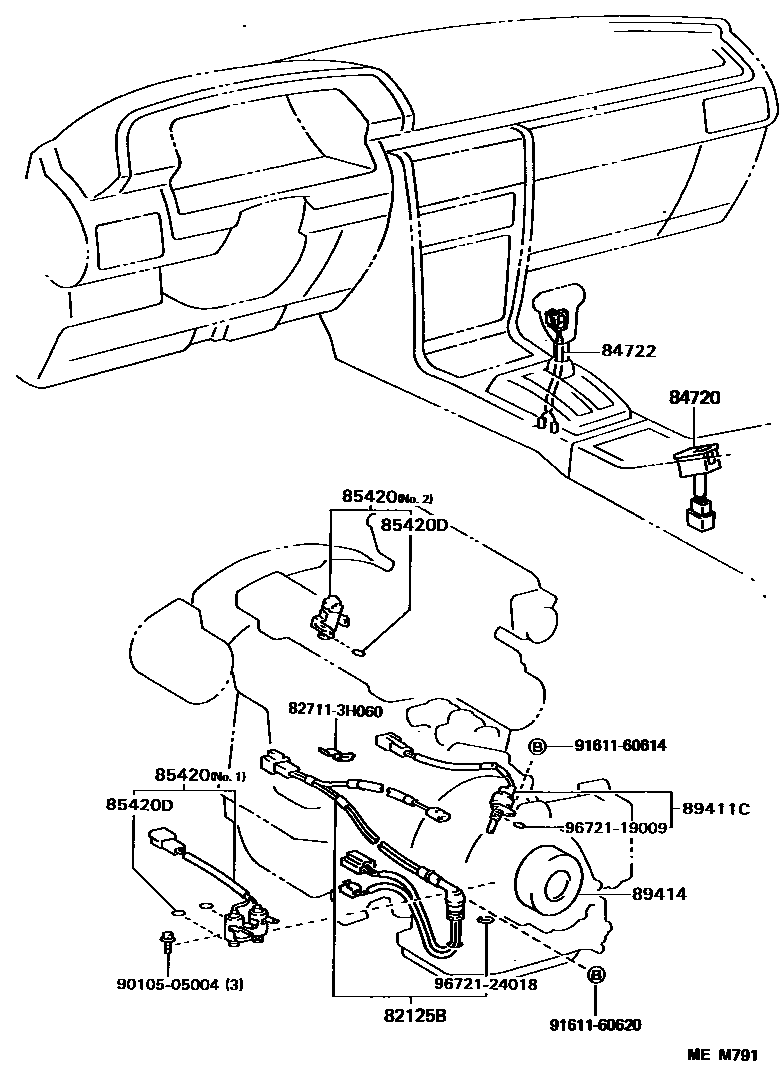

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-32030iVZV21..4FC198906-199107

84720SWITCH ASSY, PATTERN SELECT

main84720-32050-01iVZV21..4FC198906-199107

BRACK,TRIM1#

sub84720-32050

main84720-32050-02iVZV21..4FC198906-199107

MAROON,TRIM3#

sub84720-32050

main84720-32050-04iVZV21..4FC198906-199107

DARK BLUE,TRIM8#

sub84720-32050

main84720-32050-05iVZV21..4FC198906-199107

GRAIGE,TRIM0#

sub84720-32050

84722SWITCH, TRANSMISSION CONTROL

main84722-32040-01iVZV21..4FC198906-199107

BLACK,TRIM1#

sub84722-32040

main84722-32040-05iVZV21..4FC198906-199107

GRAIGE,TRIM0#

sub84722-32040

main84722-32040-D0iVZV21..4FC198906-199107

MAROON,TRIM3#

sub84722-32040

main84722-32040-J0iVZV21..4FC198906-199107

DARK BLUE,TRIM8#

sub84722-32040

main84722-32050iVZV21..4FC198906-199107

W(POWER SEAT)

85420SOLENOID ASSY, TRANSMISSION

main85420-32102iVZV21..4FC198906-199107

NO.1

main85420-32120iVZV21..4FC198906-199107

NO.2

sub85420-32121

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iVZV21..4FC198906-199107

89411CSENSOR, SPEED

main89411-32020iVZV21..4FC198906-199107

89414ROTOR, SENSOR

main89414-32020iVZV21..4FC198906-199104

main89414-33010iVZV21..4FC199104-199107

827113H060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H060

9010505004

main90105-05004

9161160614

main91611-60614

9161160620

main91611-60620

9672119009

main96721-19009

9672124018

main96721-24018

13 parts on this diagram · 1 diagram in section
