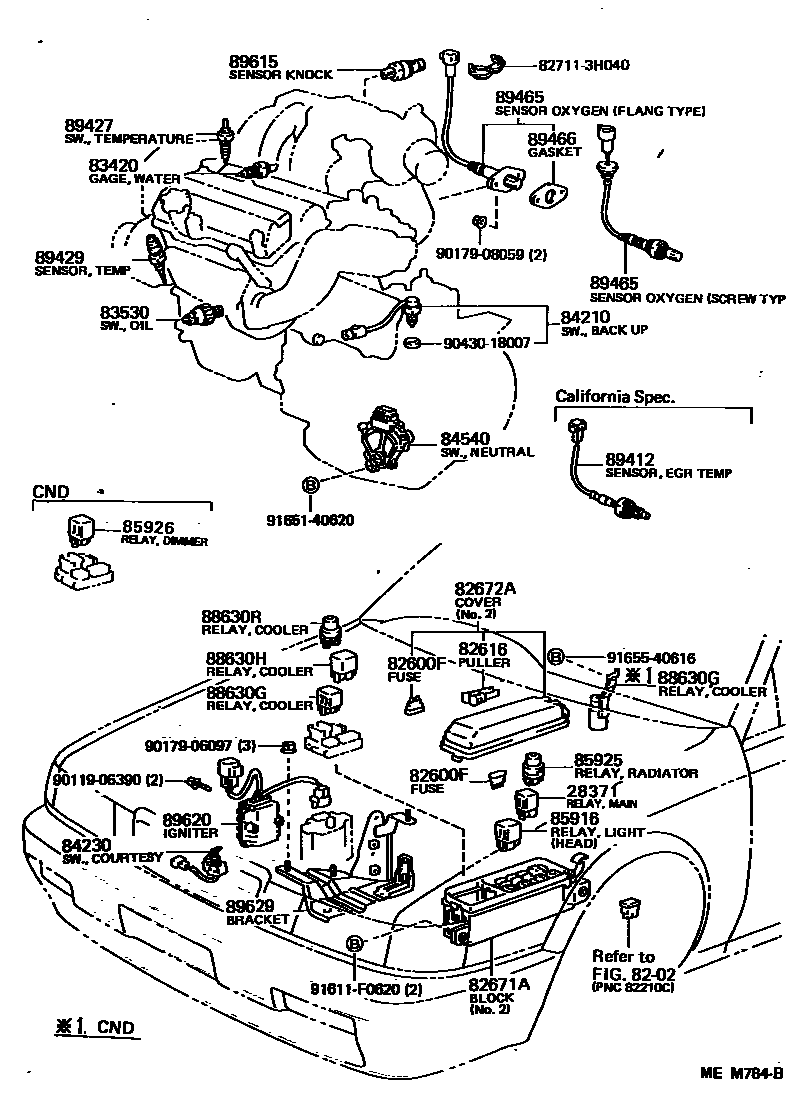

SWITCH & RELAY & COMPUTER
28371RELAY, IGNITION, NO.1
8202
82600FFUSE, FUSE BLOCK
10A
15A
20A,YELLOW
7.5A
82616PULLER, FUSE
82672ACOVER, JUNCTION BLOCK
NO.3
NO.1
NO.2
NO.1
NO.2
NO.2
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
sub83530-60040
84210SWITCH ASSY, BACK-UP LAMP
sub84210-52050
84230SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM)
84540SWITCH ASSY, NEUTRAL START
85916RELAY, LIGHT CONTROL
MARUKO,TAIL
NIPPONDENSO,TAIL
HEAD LAMP
85925RELAY, RADIATOR FAN
85926RELAY, HEADLAMP DIMMER
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
88630RRELAY ASSY, COOLER, NO.3
89412SENSOR, E.G.R GAS TEMPERATURE
89427SWITCH, TEMPERATURE DETECT
89429SENSOR, OIL TEMPERATURE
89465SENSOR, OXYGEN
FLANGE TYPE
SCREW TYPE
89466GASKET, OXYGEN SENSOR
89615SENSOR, KNOCK CONTROL
89620IGNITER ASSY
89629BRACKET, IGNITER ASSY
827113H040WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3H040
9011906390
main90119-06390
9017906097
main90179-06097
9017908059
main90179-08059
9043018007
main90430-18007
91611F0620
main91611-F0620
9165140620
main91651-40620
9165540616
main91655-40616
33 parts on this diagram · 5 diagrams in section
