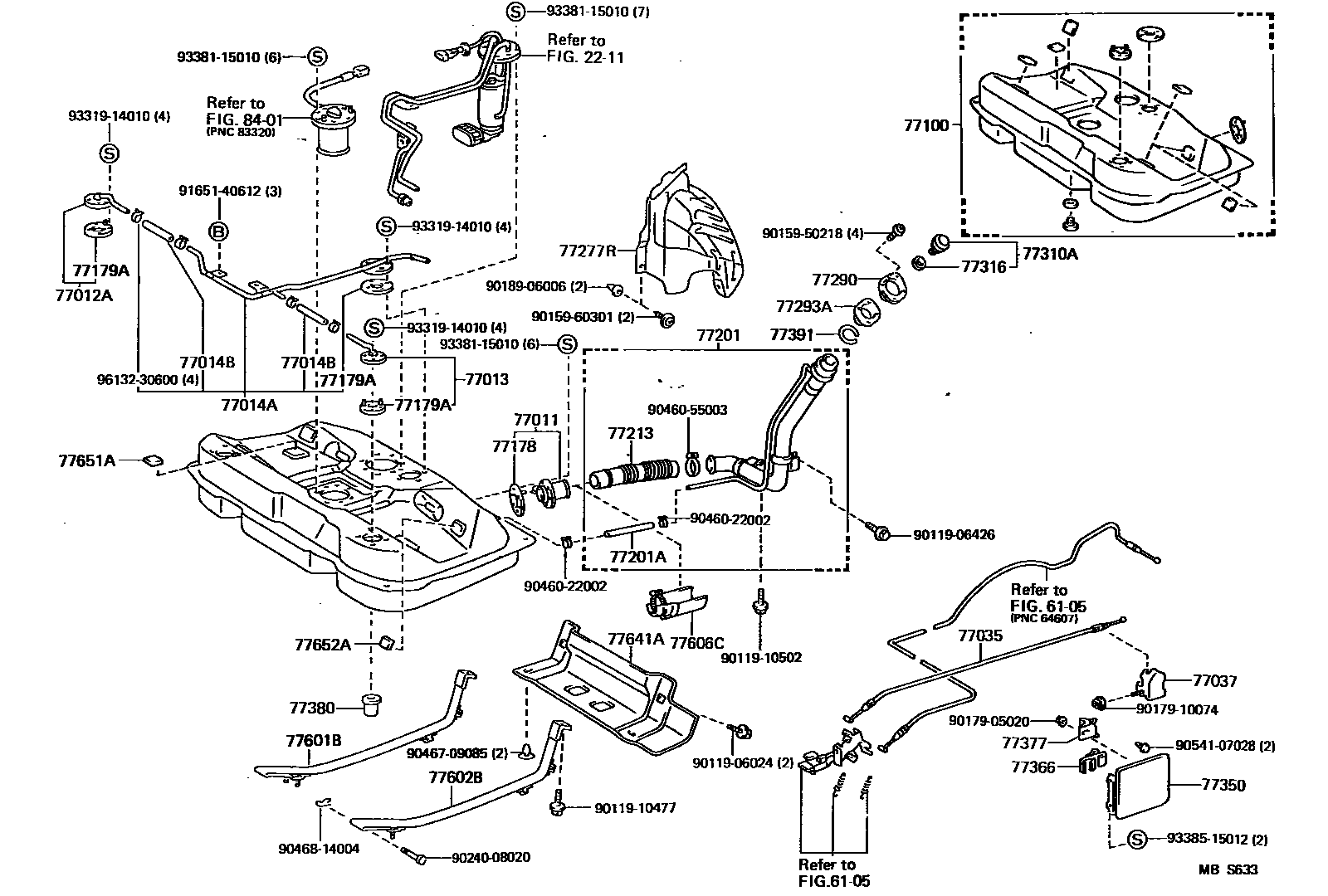

FUEL TANK & TUBE
2211
6105
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77014BHOSE, FUEL (FOR FUEL TANK BREATHER TUBE)
L=100
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
sub77037-38010
77100TANK ASSY, FUEL
sub77001-39285
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
sub77201-32080
sub77213-32020
sub77216-32030
sub77217-32021
sub77218-32020
sub77281-32010
sub90119-06347
sub90159-60357
sub90445-22002
sub90460-22002
sub90460-55003
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=200
77213HOSE, FUEL TANK SUB INLET
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606CPROTECTOR, FUEL TANK, NO.2
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
8401
9011906024
main90119-06024
9011906426
main90119-06426
9011910477
main90119-10477
9011910502
main90119-10502
9015950218
main90159-50218
9015960301
main90159-60301
9017905020
main90179-05020
9017910074
main90179-10074
9018906006
main90189-06006
9024008020
main90240-08020
9046022002
main90460-22002
9046055003
main90460-55003
9046709085
main90467-09085
9046814004
main90468-14004
9054107028
main90541-07028
9165140612
main91651-40612
9331914010
main93319-14010
9338115010
main93381-15010
9338515012
main93385-15012
9613230600
main96132-30600
52 parts on this diagram · 2 diagrams in section
