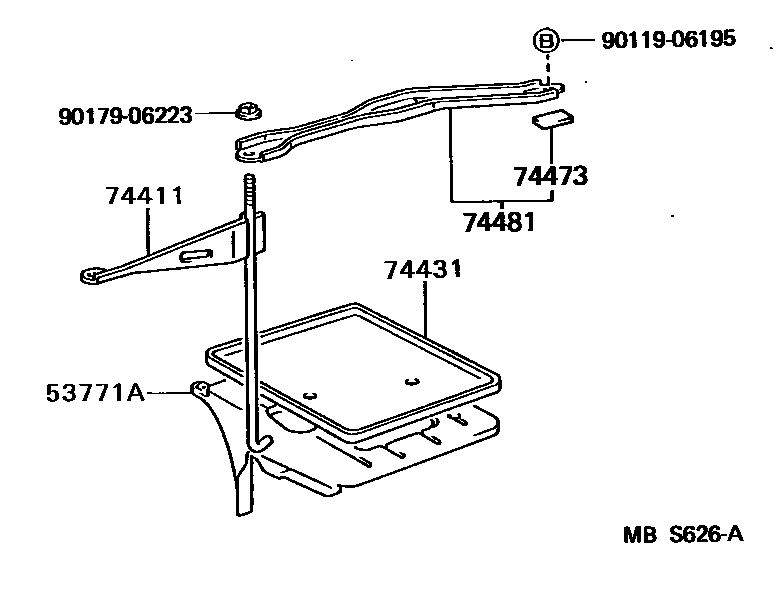

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53771-32020iVZV21198906-199107

74411CARRIER, BATTERY

main74403-32050iVZV21198906-199107

74431TRAY, BATTERY

main74431-14030iVZV21198906-199107

sub74431-52040

74473SPACER, BATTERY

main74473-22010iVZV21198906-199107

74481CLAMP, BATTERY HOLD DOWN

main74404-32080iVZV21198906-199107

9011906195

main90119-06195

9017906223

main90179-06223

7 parts on this diagram · 1 diagram in section
