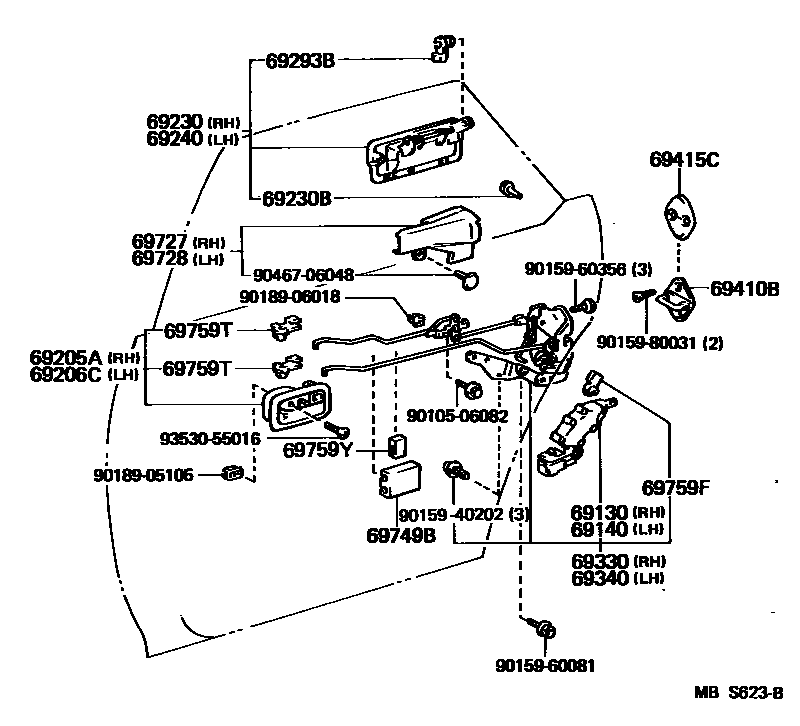

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GRAIGE,TRIM0#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
BLACK,202
DEEP RED MC,3H8
GRAY M.,184
GRAISH BLUE M.,8D6
BEIGE MC M.,4J1
DARK GREEN M. I. O.,6K4
WHITE PEARL MC,051
DARK BLUE MC M.,8G5
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
BLACK,202
DEEP RED MC,3H8
GRAY M.,184
GRAISH BLUE M.,8D6
BEIGE MC M.,4J1
DARK GREEN M. I. O.,6K4
WHITE PEARL MC,051
DARK BLUE MC M.,8G5
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
69759TSNAP, REAR DOOR INSIDE HANDLE
LH
RH
69759YSILENCER, REAR DOOR LOCK LINK
9010506082
main90105-06082
9015940202
main90159-40202
9015960081
main90159-60081
9015960356
main90159-60356
9015980031
main90159-80031
9018905105
main90189-05105
9018906018
main90189-06018
9046706048
main90467-06048
9353055016
main93530-55016
27 parts on this diagram · 1 diagram in section
