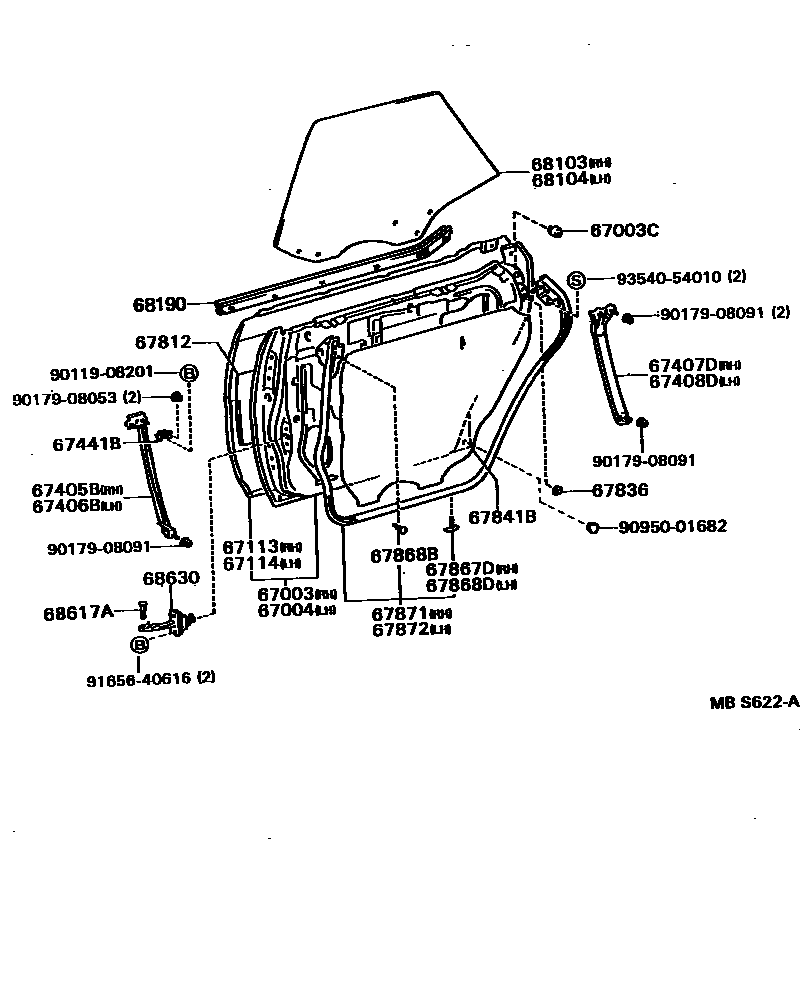

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67441BPLATE, REAR DOOR FRONT GUIDE, UPPER
sub67441-32030
67812PAD, REAR DOOR SILENCER
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67841BCOVER, REAR DOOR SERVICE HOLE
RH
LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
sub67867-12150
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
sub67867-12150
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=5.0
*TT,T=5.0,BRONZE
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=5.0
*TT,T=5.0,BRONZE
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
RH
LH
68630CHECK ASSY, REAR DOOR
9011908201
main90119-08201
9017908053
main90179-08053
9017908091
main90179-08091
9095001682
main90950-01682
9165640616
main91656-40616
9354054010
main93540-54010
29 parts on this diagram · 3 diagrams in section
