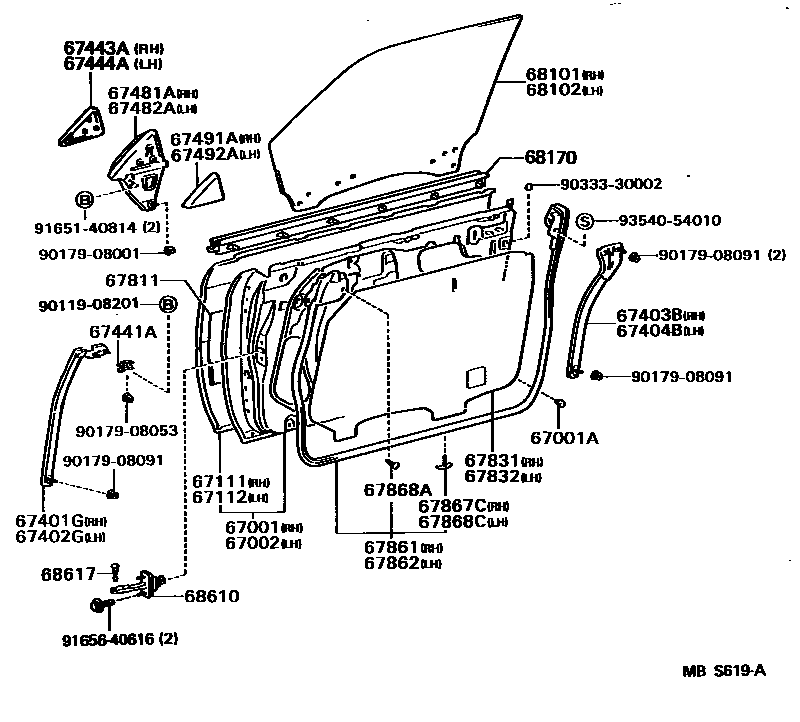

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
sub90541-09006
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401GGUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT RH
67402GGUIDE SUB-ASSY, FRONT DOOR WINDOW, FRONT LH
67403BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH
67404BGUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH
67441APLATE, FRONT DOOR FRONT GUIDE, UPPER
sub67441-32030
67443APLATE, FRONT DOOR WINDOW OPENING, OUTER RH
sub67495-32050
67444APLATE, FRONT DOOR WINDOW OPENING, OUTER LH
sub67496-32050
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
sub67831-32060
67832COVER, FRONT DOOR SERVICE HOLE, LH
sub67831-32060
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
sub67867-12150
67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
sub67867-12150
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=5.0
*TT,T=5.0,BRONZE
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=5.0
*TT,T=5.0,BRONZE
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
LH
68610CHECK ASSY, FRONT DOOR
9011908201
main90119-08201
9017908001
main90179-08001
9017908053
main90179-08053
9017908091
main90179-08091
9033330002
main90333-30002
9165140814
main91651-40814
9165640616
main91656-40616
9354054010
main93540-54010
37 parts on this diagram · 3 diagrams in section
