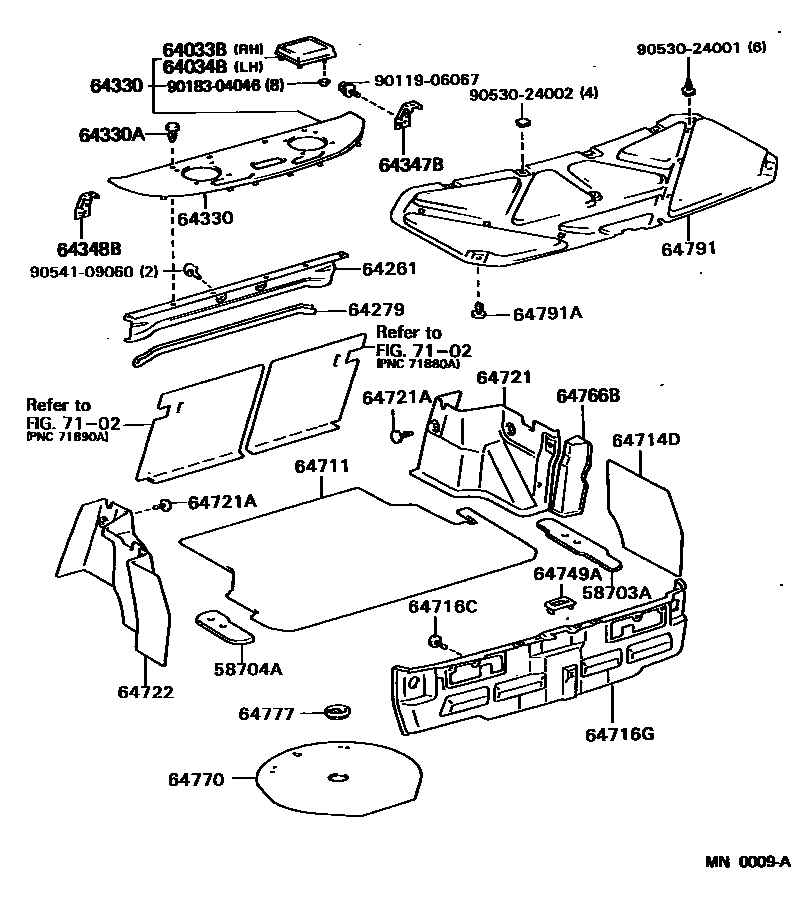

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
64261GARNISH, ROOM PARTITION
BLACK,TRIM1#
MAROON,TRIM3#
DARK GRAY,TRIM8#
GREIGE,TRIM0#
64279PROTECTOR, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64347BBRACKET, PACKAGE TRAY REINFORCEMENT, RH
64348BBRACKET, PACKAGE TRAY REINFORCEMENT, LH
64711MAT, LUGGAGE COMPARTMENT FLOOR
LIGHT GRAY,TRIM0#,1#,3#,8#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
LIGHT GRAY,TRIM0#,1#,3#,8#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
LIGHT GRAY,TRIM0#,1#,3#,8#
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
LIGHT GRAY,TRIM0#,1#,3#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
LIGHT GRAY,TRIM0#,1#,3#,8#
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
LIGHT GRAY,TRIM0#,1#,3#,8#
64766BCOVER, QUARTER TRIM JACK
LIGHT GRAY,TRIM0#,1#,3#,8#
64770COVER ASSY, SPARE WHEEL
64777CLAMP, SPARE WHEEL COVER
64791COVER, BACK DOOR TRIM
LIGHT GRAY,TRIM0#,1#,3#,8#
64791ACLIP(FOR BACK DOOR TRIM)
7102
9011906067
main90119-06067
9018304046
main90183-04046
9053024001
main90530-24001
9053024002
main90530-24002
9054109060
main90541-09060
29 parts on this diagram · 1 diagram in section
