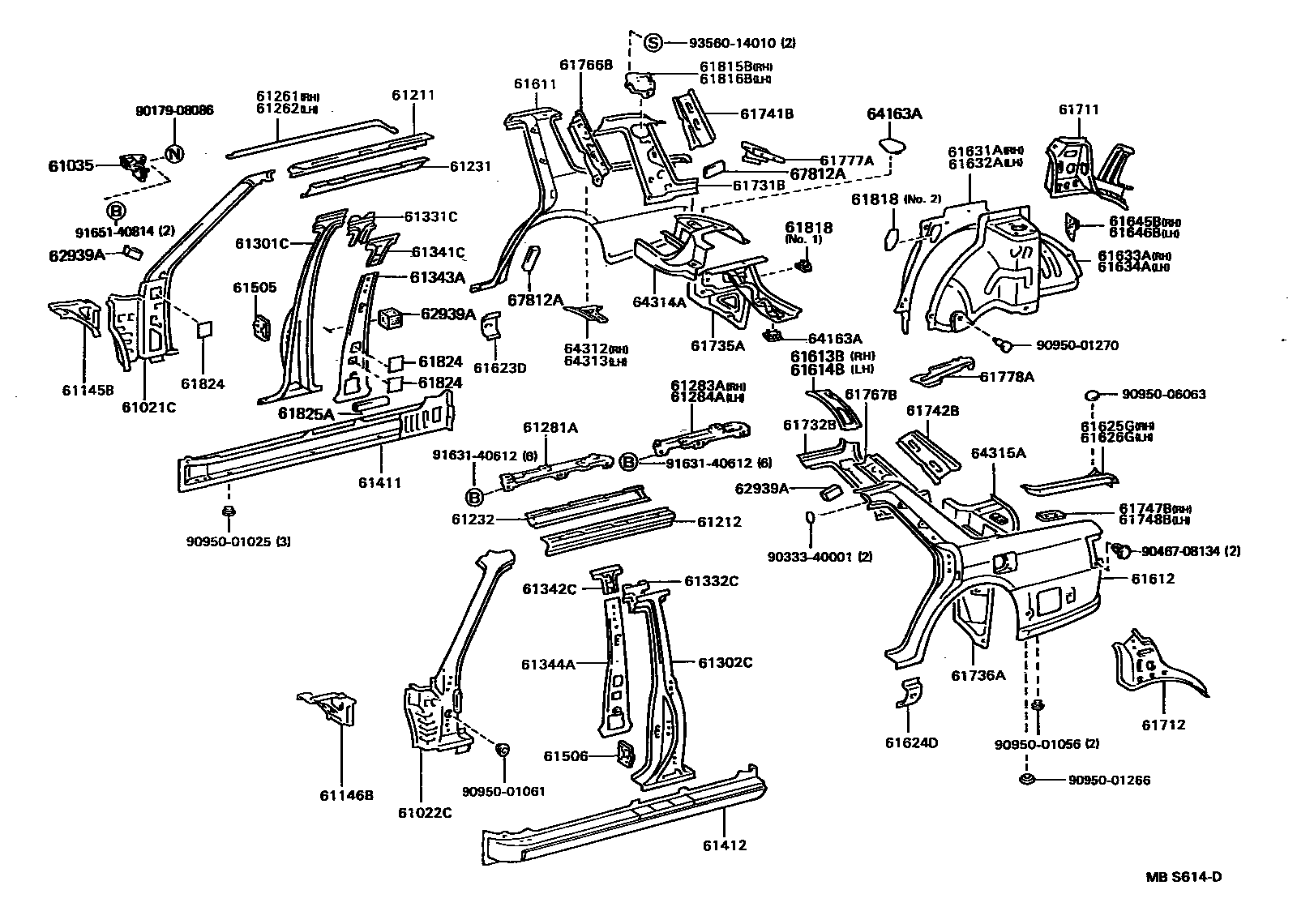

SIDE MEMBER

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-32400iVZV21198906-199107

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-32290iVZV21198906-199107

main61022-32420iVZV21198906-199107

W(MOON ROOF)

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-32010iVZV21198906-199107

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-32010iVZV21198906-199107

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-32010iVZV21198906-199107

61211RAIL, ROOF SIDE, OUTER RH

main61211-32050iVZV21198906-199107

61212RAIL, ROOF SIDE, OUTER LH

main61212-32050iVZV21198906-199107

61231RAIL, ROOF SIDE, INNER RH

main61231-32230iVZV21198906-199107

main61231-32240iVZV21198906-199107

W(MOON ROOF)

61232RAIL, ROOF SIDE, INNER LH

main61232-32240iVZV21198906-199107

61261CHANNEL, ROOF DRIP, RH

main61261-32050iVZV21198906-199107

61262CHANNEL, ROOF DRIP, LH

main61262-32050iVZV21198906-199107

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-32050iVZV21198906-199107

RH

main61282-32010iVZV21198906-199107

LH

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-32050iVZV21198906-199107

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-32050iVZV21198906-199107

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-32902iVZV21198906-199107

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-32902iVZV21198906-199107

61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH

main61331-32020iVZV21198906-199107

61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH

main61332-32020iVZV21198906-199107

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-32060iVZV21198906-199107

61342CPILLAR, CENTER BODY, INNER UPPER LH

main61342-32060iVZV21198906-199107

61343APILLAR, CENTER BODY, INNER RH

main61343-32905iVZV21198906-199107

61344APILLAR, CENTER BODY, INNER LH

main61344-32905iVZV21198906-199107

61411PANEL, ROCKER, OUTER RH

main61401-32080iVZV21198906-199107

61412PANEL, ROCKER, OUTER LH

main61402-32060iVZV21198906-199107

61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

main61505-32020iVZV21198906-199107

61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

main61505-32020iVZV21198906-199107

61611PANEL, QUARTER, RH

main61601-32927iVZV21198906-199107

61612PANEL, QUARTER, LH

main61602-32946iVZV21198906-199107

61613BPANEL, QUARTER, INNER FRONT RH

main61613-32020iVZV21198906-199107

61614BPANEL, QUARTER, INNER FRONT LH

main61614-32020iVZV21198906-199107

61623DEXTENSION, QUARTER PANEL, FRONT RH

main61623-32020iVZV21198906-198911

sub61623-32021

main61623-32021iVZV21198911-199107

61624DEXTENSION, QUARTER PANEL, FRONT LH

main61624-32020iVZV21198906-198911

sub61624-32021

main61624-32021iVZV21198911-199107

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-32010iVZV21198906-199107

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-32010iVZV21198906-199107

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-32060iVZV21198906-199107

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-32060iVZV21198906-199107

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-32903iVZV21198906-199107

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-32903iVZV21198906-199107

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-32030iVZV21198906-199107

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-32020iVZV21198906-199107

61711PANEL, ROOF SIDE, OUTER RH

main61711-32902iVZV21198906-199107

61712PANEL, ROOF SIDE, OUTER LH

main61712-32050iVZV21198906-199107

61731BPANEL, ROOF SIDE, INNER RH

main61731-32100iVZV21198906-199107

W(MOON ROOF)

main61731-32120iVZV21198906-199107

61732BPANEL, ROOF SIDE, INNER LH

main61732-32100iVZV21198906-199107

W(MOON ROOF)

main61732-32120iVZV21198906-199107

61735APANEL, ROOF SIDE, INNER REAR RH

main61071-32010iVZV21198906-199107

61736APANEL, ROOF SIDE, INNER REAR LH

main61072-32010iVZV21198906-199107

61741BREINFORCEMENT, BACK WINDOW OPENING, RH

main61741-32050iVZV21198906-199107

61742BREINFORCEMENT, BACK WINDOW OPENING, LH

main61742-32040iVZV21198906-199107

61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH

main61747-32030iVZV21198906-199107

61748BREINFORCEMENT, ROOF SIDE, INNER REAR, LH

main61748-32030iVZV21198906-199107

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-32050iVZV21198906-199107

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-32060iVZV21198906-199107

61777AGUIDE, ROOF SIDE DRAIN HOSE, NO.2 RH

main61708-32010iVZV21198906-199107

61778AGUIDE, ROOF SIDE DRAIN HOSE, NO.2 LH

main61778-32030iVZV21198906-199107

61815BCOVER, ROOF SIDE, INNER UPPER RH

main61815-32030iVZV21198906-199107

61816BCOVER, ROOF SIDE, INNER UPPER LH

main61816-32010iVZV21198906-199107

61818COVER, ROOF SIDE, INNER UPPER

main61817-32010iVZV21198906-199107

RH,NO.1

main61817-32020iVZV21198906-199107

NO.2

main61818-32010iVZV21198906-199107

LH,NO.1

61824PLATE, NOISE CONTROL, NO.1

main61824-32020iVZV21198906-199107

61825APLATE, NOISE CONTROL, NO.2

main61825-32020iVZV21198906-199107

62939ASILENCER, QUARTER VENT

main62939-32020iVZV21198906-199107

70 X 120

main62939-32030iVZV21198906-199107

70 X 70

64163ACOVER, BACK CORNER, INNER

main64163-32010iVZV21198906-199107

RH

main64164-32010iVZV21198906-199107

LH

64312BRACKET, PACKAGE TRAY, RH

main64312-32030iVZV21198906-199107

64313BRACKET, PACKAGE TRAY, LH

main64313-32030iVZV21198906-199107

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-32900iVZV21198906-199107

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64315-32900iVZV21198906-199107

67812APAD, QUARTER PANEL SILENCER

main67812-32020iVZV21198906-199107

9017908086

main90179-08086

9033340001

main90333-40001

9046708134

main90467-08134

9095001025

main90950-01025

9095001056

main90950-01056

9095001061

main90950-01061

9095001266

main90950-01266

9095001270

main90950-01270

9095006063

main90950-06063

9163140612

main91631-40612

9165140814

main91651-40814

9356014010

main93560-14010

78 parts on this diagram · 1 diagram in section
