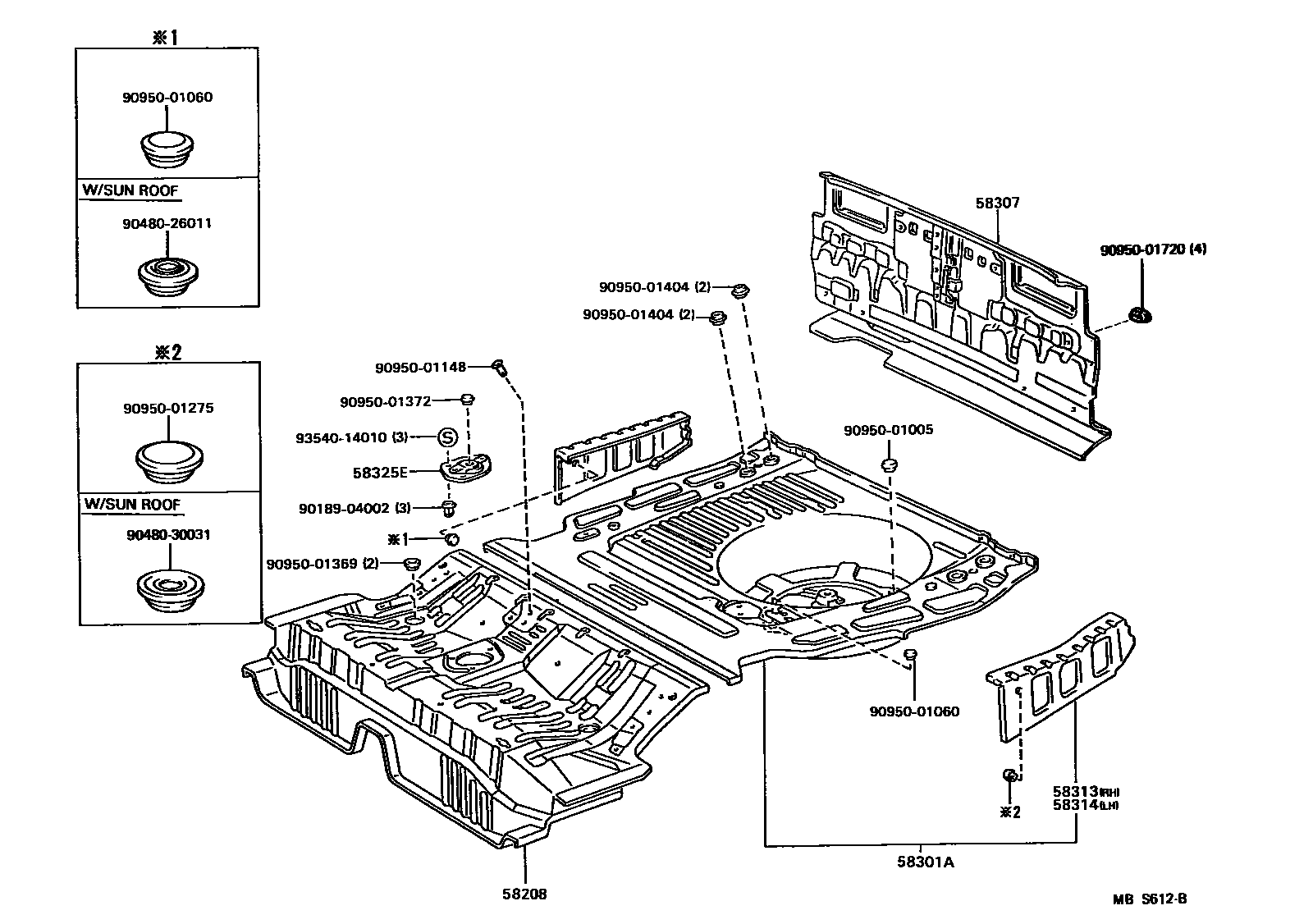

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

58208PAN, CENTER FLOOR

main58201-32061iVZV21198906-199107

58301APANEL SUB-ASSY, REAR FLOOR

main58301-32160iVZV21198906-199107

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-32270iVZV21198906-199107

58313PANEL, REAR FLOOR SIDE, RH

main58313-32050iVZV21198906-198907

main58313-32051iVZV21198907-199107

58314PANEL, REAR FLOOR SIDE, LH

main58314-32050iVZV21198906-198907

main58314-32051iVZV21198907-199107

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-32020iVZV21198906-199107

9018904002

main90189-04002

9048026011

main90480-26011

9048030031

main90480-30031

9095001005

main90950-01005

9095001060

main90950-01060

9095001148

main90950-01148

9095001275

main90950-01275

9095001369

main90950-01369

9095001372

main90950-01372

9095001404

main90950-01404

9095001720

main90950-01720

9354014010

main93540-14010

18 parts on this diagram · 2 diagrams in section
