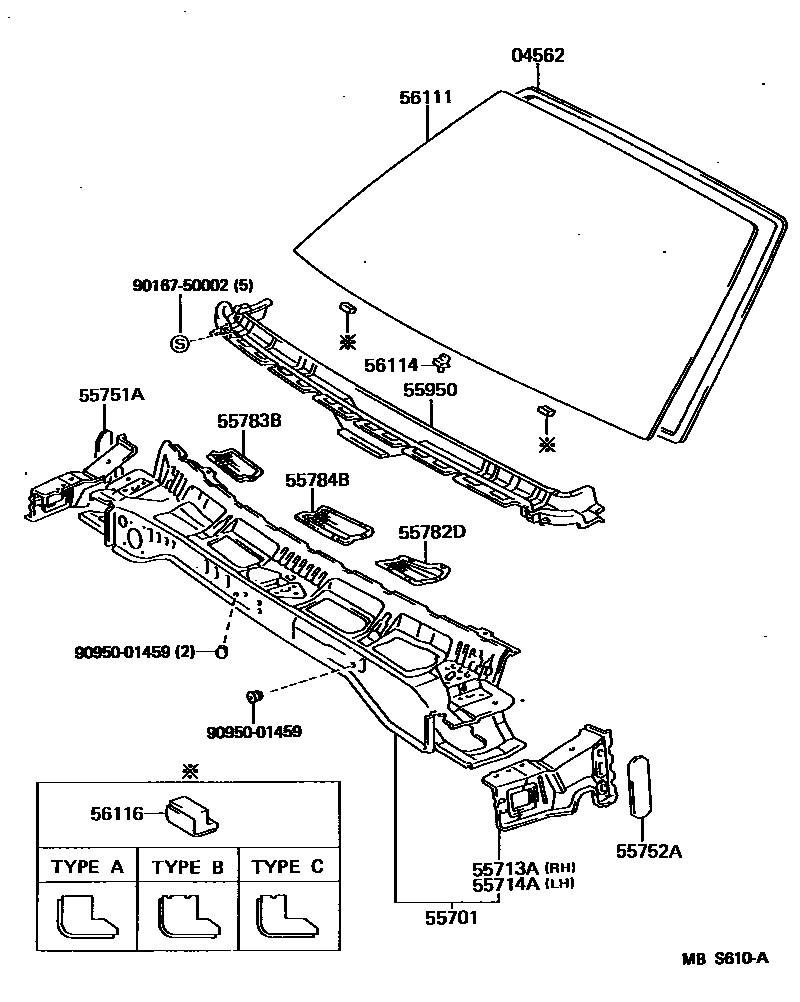

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iVZV21198906-199107

55701PANEL SUB-ASSY, COWL

main55700-32171iVZV21198906-199008

sub55700-32172

main55700-32172iVZV21199008-199107

55713APANEL, COWL TOP SIDE, RH

main55713-32020iVZV21198906-199107

55714APANEL, COWL TOP SIDE, LH

main55714-32020iVZV21198906-199107

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-32010iVZV21198906-199107

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55751-32010iVZV21198906-199107

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-32030iVZV21198906-199107

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-32030iVZV21198906-199107

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-32030iVZV21198906-199107

55950NOZZLE ASSY, DEFROSTER

main55950-32041iVZV21198906-199107

56111GLASS, WINDSHIELD

main56111-32270iVZV21198906-199107

*TL,T=5.3,BLUE

main56111-32280iVZV21198906-199107

*TL,T=5.3,BRONZE

56114RETAINER, WINDSHIELD GLASS

main56114-32010iVZV21198906-199107

56116SPACER, WINDSHIELD GLASS

main56116-32040iVZV21198906-199107

TYPE A

sub56116-32060

main56116-32050iVZV21198906-199107

TYPE B

sub56116-32060

main56116-32060iVZV21198906-199107

TYPE C

9016750002

main90167-50002

9095001459

main90950-01459

15 parts on this diagram · 1 diagram in section
