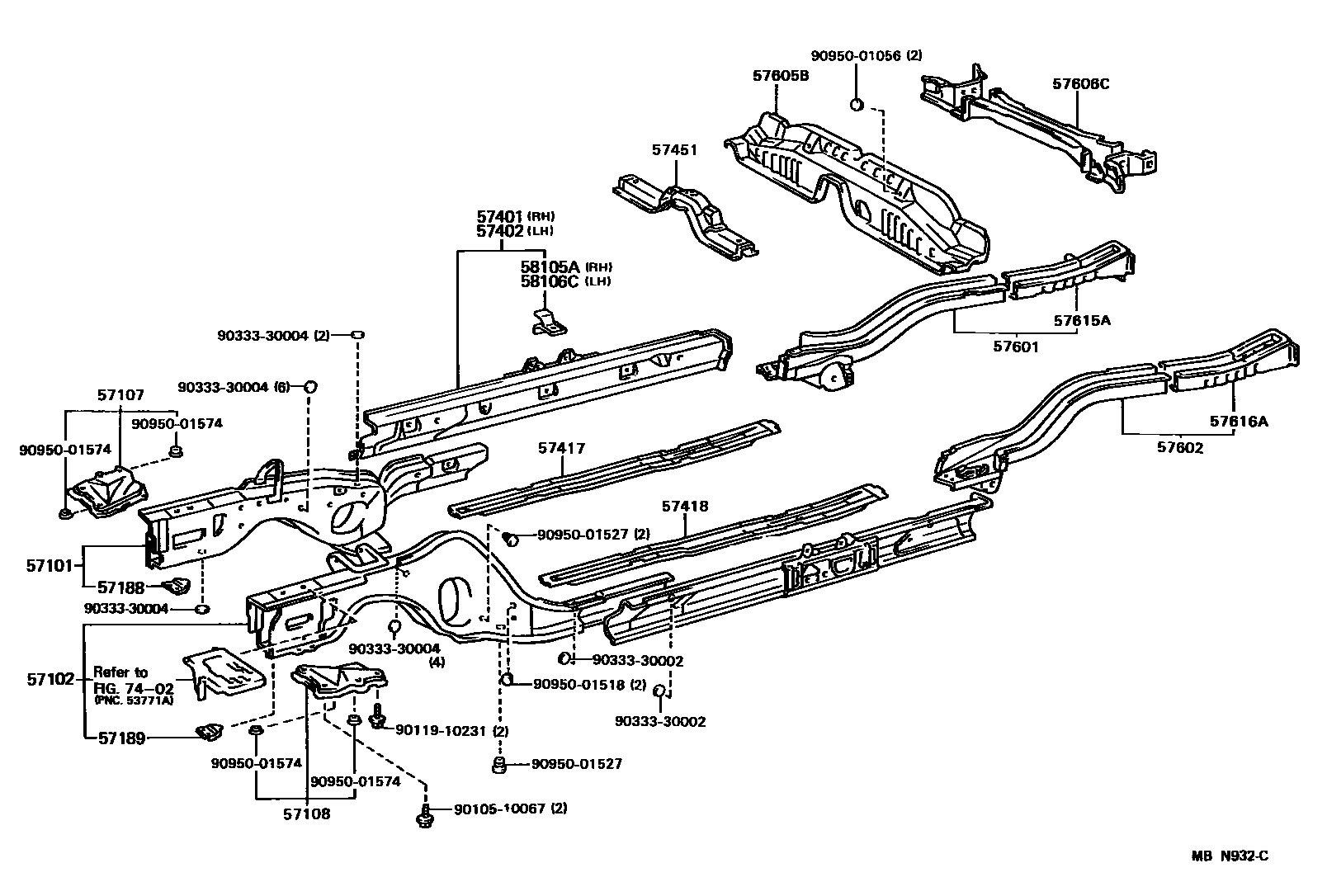

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-32070iVZV21198906-199107

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-32041iVZV21198906-199107

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-32020iVZV21198906-199107

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-32020iVZV21198906-199107

57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-32030iVZV21198906-199107

57189REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-32030iVZV21198906-199107

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-32040iVZV21198906-199107

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-32040iVZV21198906-199107

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-32031iVZV21198906-199107

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-32031iVZV21198906-199107

57451MEMBER, FRONT FLOOR CROSS

main57408-32020iVZV21198906-199107

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-32130iVZV21198906-199107

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-32130iVZV21198906-199107

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-32020iVZV21198906-199107

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-32030iVZV21198906-199107

sub57606-32040

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-32906iVZV21198906-199107

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-32912iVZV21198906-199107

58105ABRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE, RH

main58105-32020iVZV21198906-199107

58106CBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-32020iVZV21198906-199107

7402

9010510067

main90105-10067

9011910231

main90119-10231

9033330002

main90333-30002

9033330004

main90333-30004

9095001056

main90950-01056

9095001518

main90950-01518

9095001527

main90950-01527

9095001574

main90950-01574

28 parts on this diagram · 1 diagram in section
