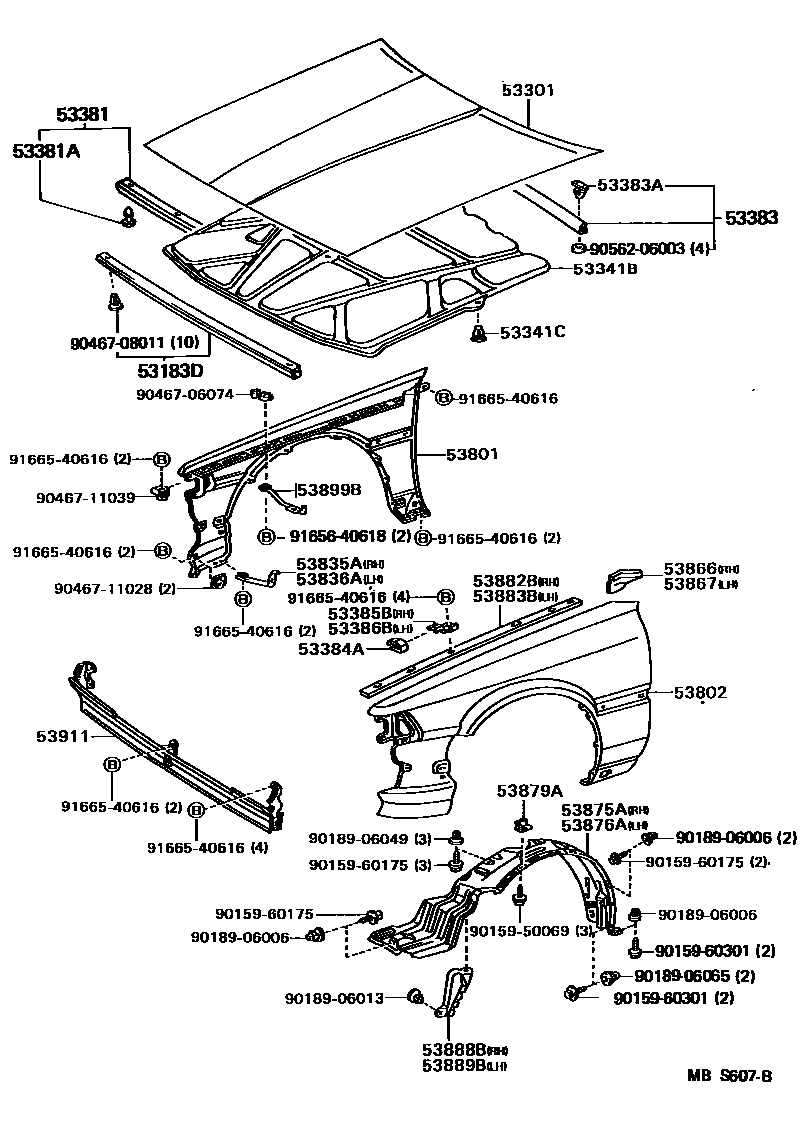

HOOD & FRONT FENDER
53183DSEAL, HEADLAMP COVER TO HOOD
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
sub90467-08011
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53888BSEAL, FRONT FENDER SPLASH SHIELD, RH NO.2
53889BSEAL, FRONT FENDER SPLASH SHIELD, LH NO.2
53899BSUPPORT, FRONT FENDER PANEL
53911PANEL, FRONT VALANCE
9015950069
main90159-50069
9015960175
main90159-60175
9015960301
main90159-60301
9018906006
main90189-06006
9018906013
main90189-06013
9018906049
main90189-06049
9018906065
main90189-06065
9046706074
main90467-06074
9046708011
main90467-08011
9046711028
main90467-11028
9046711039
main90467-11039
9056206003
main90562-06003
9165640618
main91656-40618
9166540616
main91665-40616
40 parts on this diagram · 1 diagram in section
