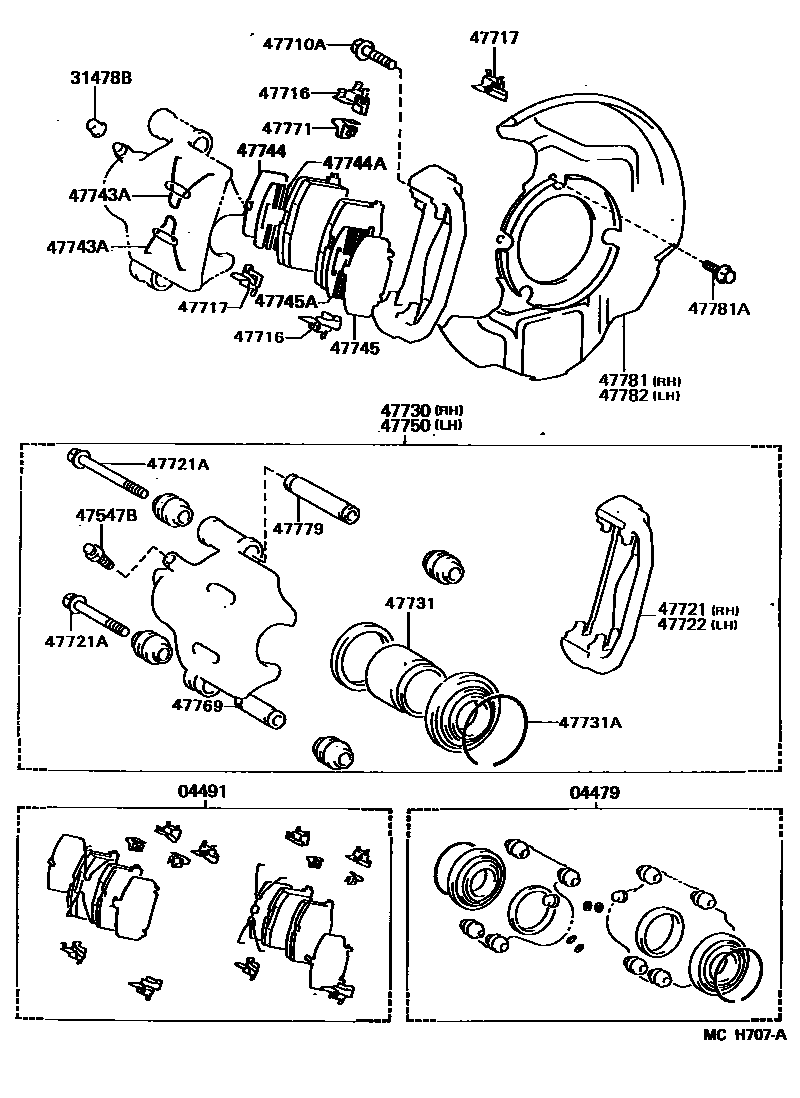

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-32030iVZV21198906-199107

04491PAD KIT, DISC BRAKE, FRONT

main04491-32291iVZV21198906-199004

sub04491-32390

main04491-32390iVZV21199004-199107

sub04465-32170

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iVZV21198906-199107

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iVZV21198906-199107

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iVZV21198906-199107

*12-1.25PX25.5-23

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32041iVZV21198906-199107

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32041iVZV21198906-199107

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-32090iVZV21198906-199107

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-10014iVZV21198906-199107

*10-1.25PX65.5-30

main90119-10249iVZV21198906-199107

*10-1.25PX95.5-30

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-32090iVZV21198906-199107

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-32100iVZV21198906-199107

47731PISTON, FRONT DISC BRAKE

main47731-32040iVZV21198906-199107

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001iVZV21198906-199107

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-32030iVZV21198906-199107

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47745-32020iVZV21199005-199107

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32021iVZV21199005-199107

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32021iVZV21198906-199107

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47742-32022iVZV21198906-199107

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-32100iVZV21198906-199107

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-40010iVZV21198906-199107

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iVZV21198906-199107

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-40010iVZV21198906-199107

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-32050iVZV21198906-199107

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iVZV21198906-199107

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-32050iVZV21198906-199107

25 parts on this diagram · 2 diagrams in section
