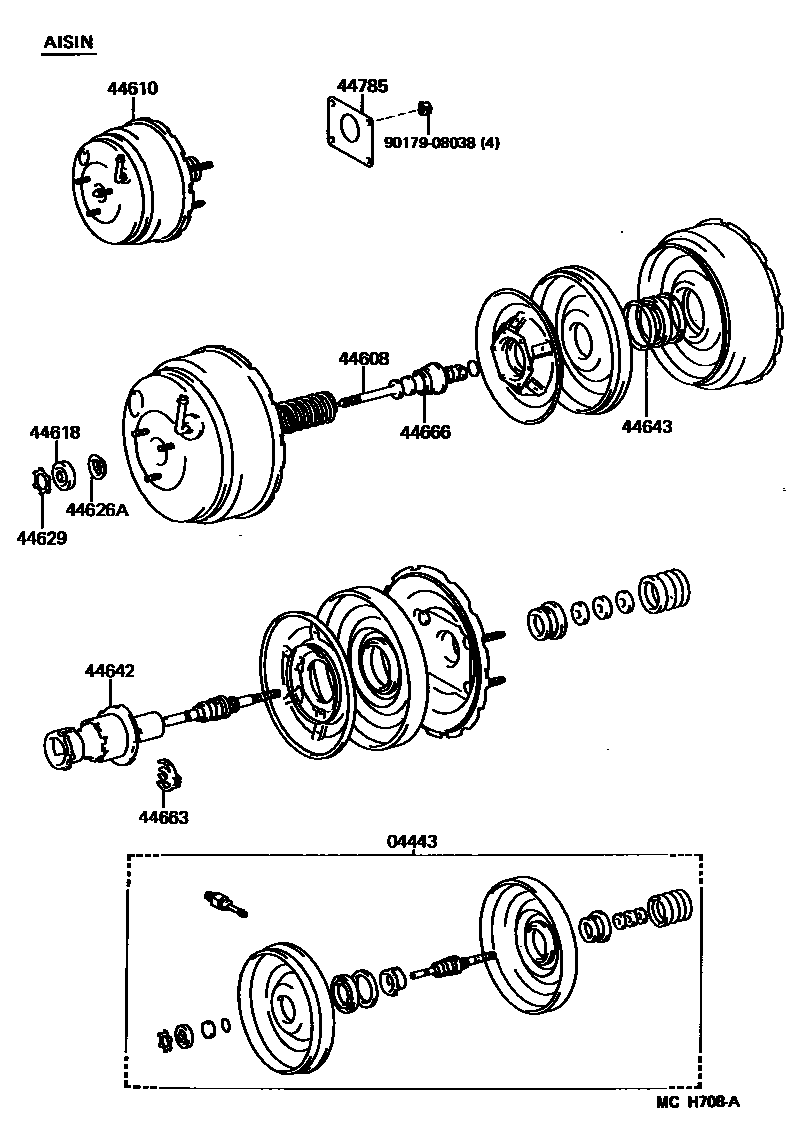

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

04443BOOSTER KIT, BRAKE

main04443-32440iVZV21198906-199107

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-20800iVZV21198906-199107

44610BOOSTER ASSY, BRAKE

main44610-32340iVZV21198906-199107

44618SEAL, BOOSTER BODY

main44621-14030iVZV21198906-199107

44626ARETAINER, BOOSTER BODY SEAL

main44626-60010iVZV21198906-199107

44629RING, CIRCULAR INTERNAL

main44628-60010iVZV21198906-199107

44642PISTON, BRAKE BOOSTER

main44642-20800iVZV21198906-199107

44643RETAINER, DIAPHRAGM

main44643-20800iVZV21198906-199107

44663KEY, VALVE STOPPER

main44635-20800iVZV21198906-199107

44666CASE, REACTION DISC

main44657-50010iVZV21198906-199107

44785GASKET, BRAKE BOOSTER

main44785-32010iVZV21198906-199107

9017908038

main90179-08038

12 parts on this diagram · 2 diagrams in section
