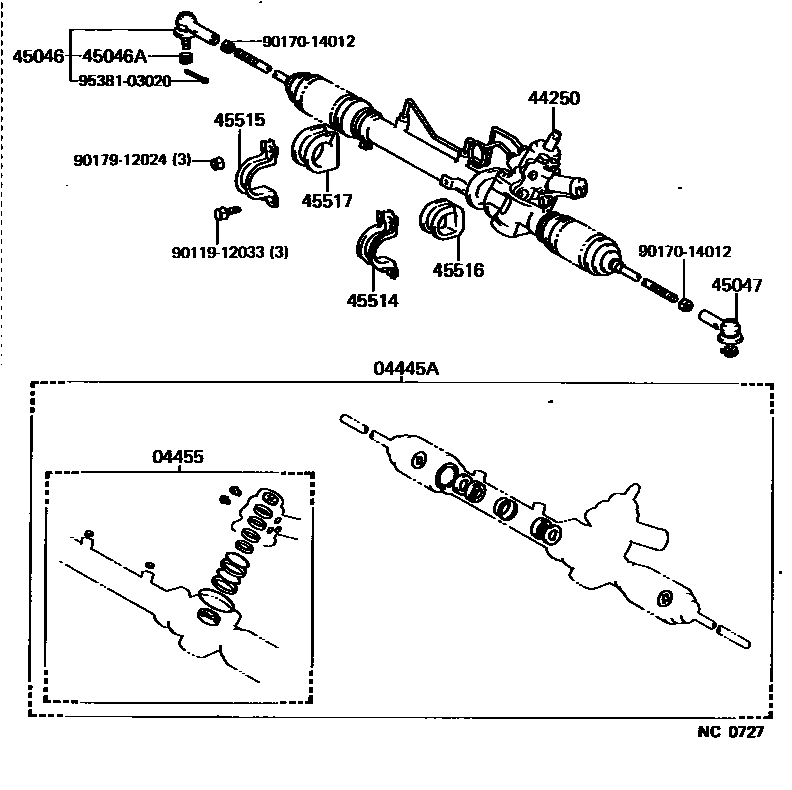

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-32041iVZV21198906-199107

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-32031iVZV21198906-199107

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-32040iVZV21198906-199005

sub44250-32041

sub45517-32050

main44250-32041iVZV21199005-199007

sub44250-32042

sub45514-32121

sub45516-32040

sub45517-32060

main44250-32042iVZV21199007-199107

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iVZV21198906-199107

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iVZV21198906-199107

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iVZV21198906-199107

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-32120iVZV21198906-199007

main45514-32121iVZV21199007-199009

sub45514-32122

main45514-32122iVZV21199009-199107

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-32100iVZV21198906-199107

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-32020iVZV21198906-199007

main45516-32040iVZV21199007-199107

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-32030iVZV21198906-199005

main45517-32050iVZV21199005-199007

main45517-32060iVZV21199007-199107

9011912033

main90119-12033

9017014012

main90170-14012

9017912024

main90179-12024

9538103020

main95381-03020

14 parts on this diagram · 2 diagrams in section
