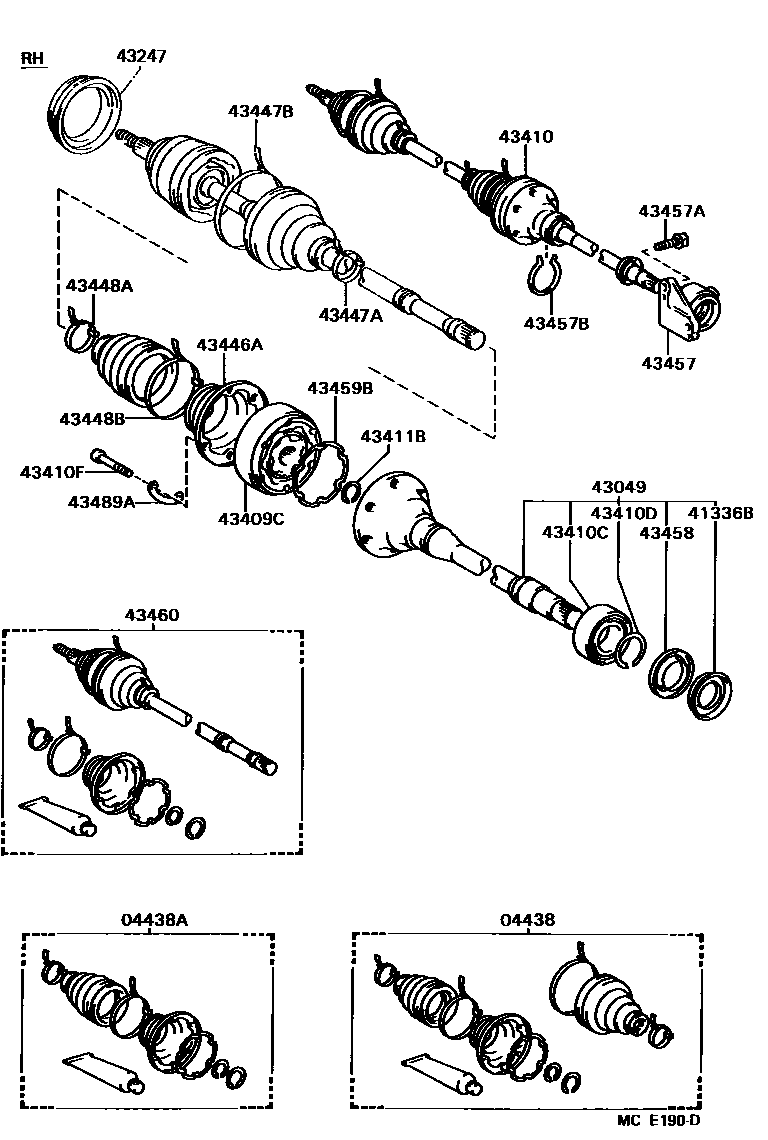

FRONT DRIVE SHAFT
04438BOOT KIT, FRONT DRIVE SHAFT
04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
41336BCOVER, DUST(FOR FRONT DRIVE SHAFT)
RH
LH
43049SHAFT SUB-ASSY, FRONT DRIVE FLANGE
43409CJOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE
43410SHAFT ASSY, FRONT DRIVE, RH
sub43410-32092
43410CBEARING (FOR FRONT DRIVE SHAFT)
sub90363-41002
43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)
43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)
sub90110-10015
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43446ACOVER, FRONT AXLE INBOARD JOINT
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43457BRACKET, DRIVE SHAFT BEARING
43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
*10-1.25PX19.8-8.3
43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
43458COVER, FRONT DRIVE SHAFT DUST
43459BGASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
sub43470-39047
43489AWASHER, CROSS GROOVE JOINT
23 parts on this diagram · 2 diagrams in section
