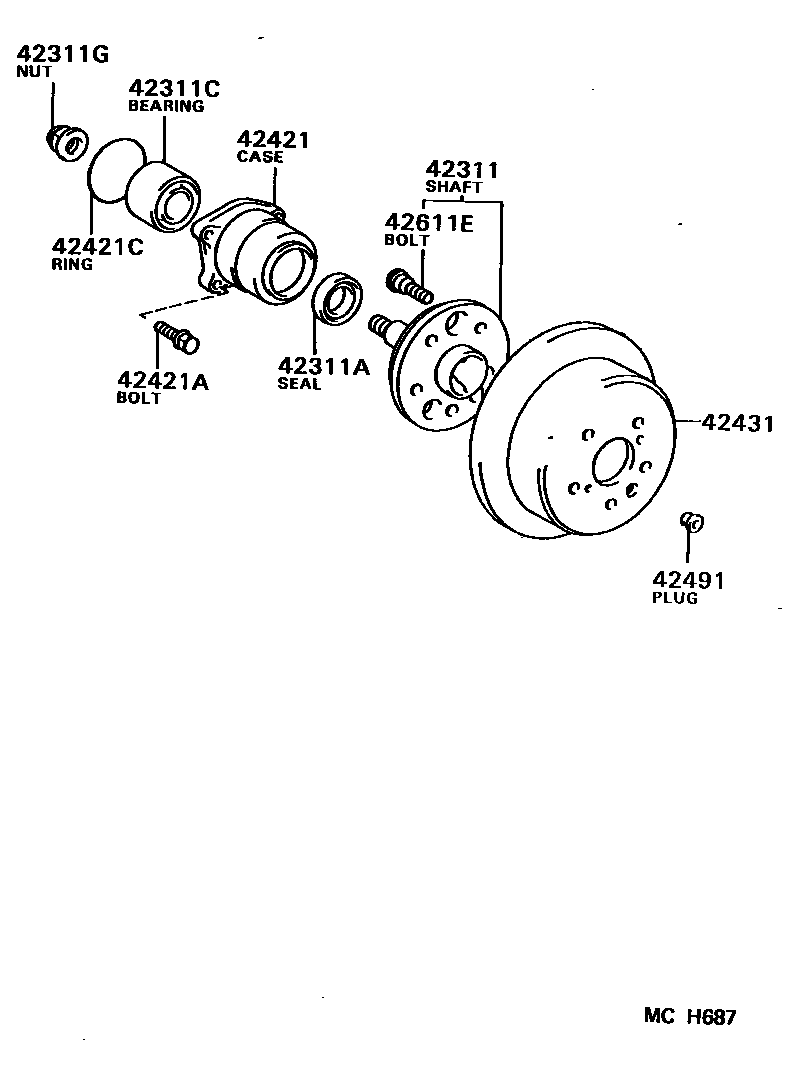

REAR AXLE SHAFT & HUB

42311SHAFT, REAR AXLE

main42301-32020iVZV21198906-199107

sub42410-32050

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iVZV21198906-199107

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iVZV21198906-199107

42311GNUT(FOR REAR AXLE SHAFT)

main90179-20017iVZV21198906-199107

42421CASE, REAR AXLE BEARING

main42421-20020iVZV21198906-199107

sub42409-20010

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124iVZV21198906-199006

main90105-10309iVZV21199006-199107

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003iVZV21198906-199107

sub90301-63006

42431DISC, REAR

main42431-20090iVZV21198906-199107

sub42431-20160

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iVZV21198906-199107

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iVZV21198906-199107

10 parts on this diagram · 1 diagram in section
