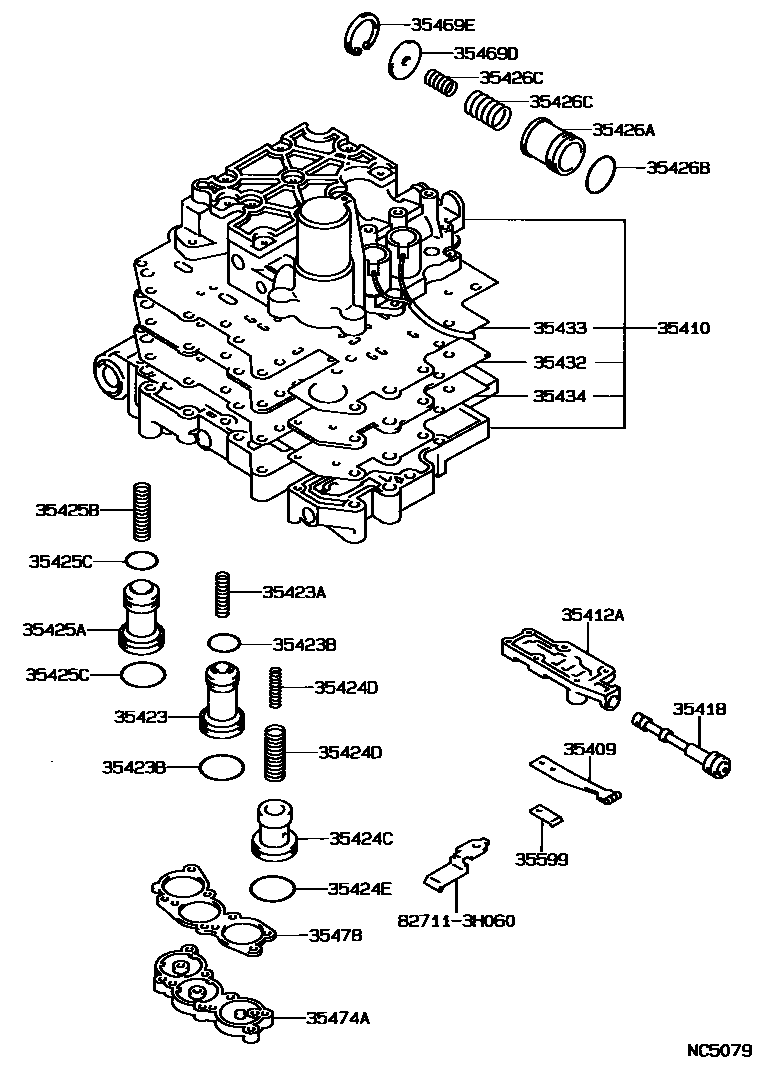

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-32020iVZV21..4FC198906-199007

main35409-32030iVZV21..4FC199007-199107

35410BODY ASSY, TRANSMISSION VALVE

main35410-32090iVZV21..4FC198906-199106

main35410-32091iVZV21..4FC199106-199107

sub35410-32092

35412ABODY, MANUAL VALVE

main35412-32020iVZV21..4FC198906-199107

35418VALVE, MANUAL

main35418-32010iVZV21..4FC198906-199107

35423PISTON, B-2 ACCUMULATOR

main35403-32010iVZV21..4FC198906-199107

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-21004iVZV21..4FC198906-199105

main90501-25031iVZV21..4FC199105-199107

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-21006iVZV21..4FC198906-199107

UPR

main90301-30005iVZV21..4FC198906-199107

LWR

35424CPISTON, C-1 ACCUMULATOR

main35424-32020iVZV21..4FC198906-199105

main35424-32021iVZV21..4FC199105-199107

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-29018iVZV21..4FC198906-199105

OUTER

main90501-29029iVZV21..4FC199105-199107

main90501-32026iVZV21..4FC198906-199105

INNER

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-30005iVZV21..4FC199105-199107

LWR

main90301-36006iVZV21..4FC198906-199105

main90301-36006iVZV21..4FC199105-199107

UPR

35425APISTON, C-2 ACCUMULATOR

main35405-32010iVZV21..4FC198906-199107

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-20094iVZV21..4FC198906-199105

main90501-20126iVZV21..4FC199105-199107

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-25002iVZV21..4FC198906-199107

UPR

main90301-34007iVZV21..4FC198906-199107

LWR

35426APISTON, C-0 ACCUMULATOR

main35426-32020iVZV21..4FC198906-199107

35426BRING, O (FOR C-0 ACCUMULATOR PISTON)

main90301-30005iVZV21..4FC198906-199107

35426CSPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON)

main90501-26036iVZV21..4FC198906-199107

INNER

main90501-29019iVZV21..4FC198906-199107

OUTER

35432PLATE, VALVE BODY, NO.1

main35406-32010iVZV21..4FC199106-199107

sub04032-32H01

main35432-32040iVZV21..4FC198906-199106

35433GASKET, VALVE BODY, NO.1

main35433-32031iVZV21..4FC198906-199003

sub35433-32040

main35433-32040iVZV21..4FC199003-199106

35434GASKET, VALVE BODY, NO.2

main35434-32031iVZV21..4FC198906-199003

sub35434-32040

main35434-32040iVZV21..4FC199003-199106

35469DSPACER (FOR C-0 ACCUMULATOR PISTON)

main35469-32020iVZV21..4FC198906-199107

35469ERING, SNAP (FOR C-0 ACCUMULATOR PISTON SPACER)

main96151-03700iVZV21..4FC198906-199107

35474ACOVER, ACCUMULATOR

main35474-32030iVZV21..4FC198906-199107

35478GASKET, ACCUMULATOR COVER

main35478-32020iVZV21..4FC198906-199107

35599COVER, MANUAL DETENT SPRING

main35599-32010iVZV21..4FC198906-199007

main35599-32020iVZV21..4FC199007-199107

827113H060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H060

25 parts on this diagram · 5 diagrams in section
