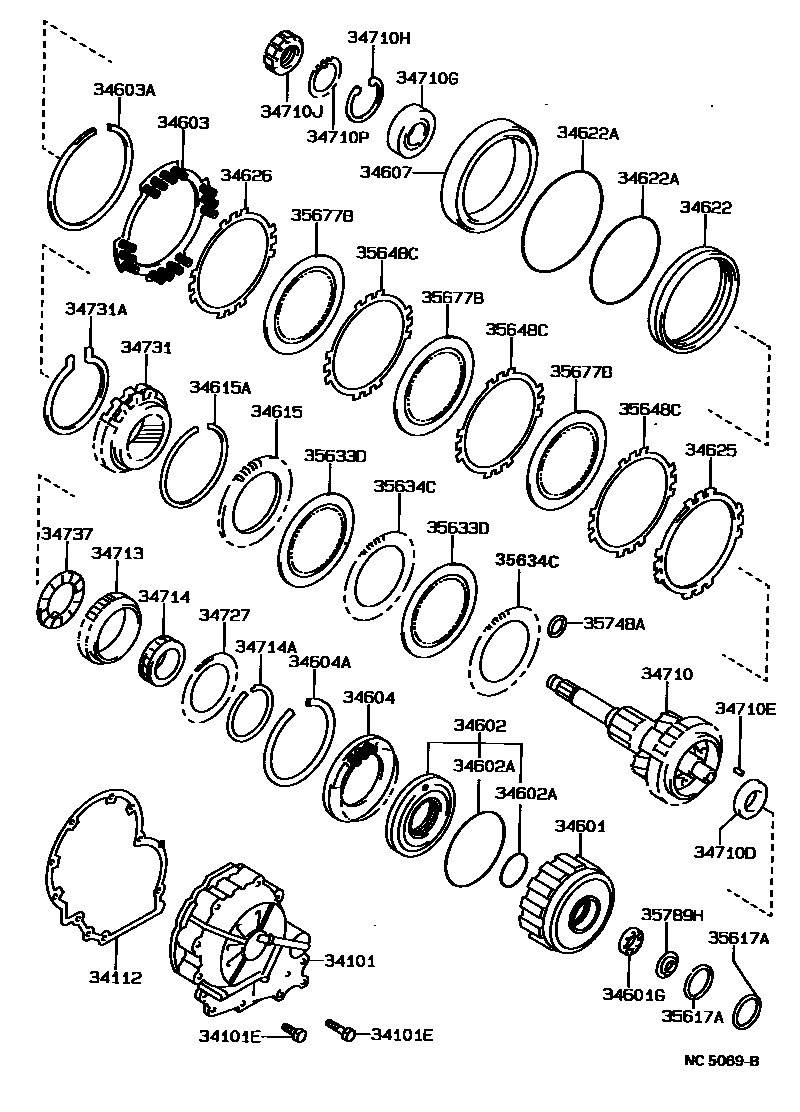

OVERDRIVE GEAR (ATM)

34101CASE SUB-ASSY, OVERDRIVE

main34101-32040iVZV21..4FC198906-199107

sub34101-32041

sub34115-20021

34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

main90105-08055×3iVZV21..4FC198906-199012

*8-1.25PX25-25

main90105-08056×3iVZV21..4FC199103-199107

*8-1.25PX40-40

main90105-08103×6iVZV21..4FC198906-199107

*8-1.25PX59-35

main90105-08167×4iVZV21..4FC199103-199107

*8-1.25PX23-23

34112GASKET, OVERDRIVE CASE

main34112-32020iVZV21..4FC198906-199012

main34112-32040iVZV21..4FC199012-199107

sub34112-32041

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-32021iVZV21..4FC198906-199107

34601GBEARING,THRUST NEEDLE ROLLER(FOR OVERDRIVE DIRECT CLUTCH)

main90374-28009iVZV21..4FC198906-199107

sub90374-28013

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-32020iVZV21..4FC198906-199107

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iVZV21..4FC198906-199107

INNER

main90301-99016iVZV21..4FC198906-199107

OUTER

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-20010iVZV21..4FC198906-199107

34603ARING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING)

main90521-99050iVZV21..4FC198906-199107

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-32010iVZV21..4FC198906-199107

34604ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH RETURN SPRING)

main90521-99060iVZV21..4FC198906-199107

34607DRUM SUB-ASSY, OVERDRIVE BRAKE

main34607-32010iVZV21..4FC198906-199107

34615FLANGE, OVERDRIVE CLUTCH

main34615-32010iVZV21..4FC198906-199107

T=3.6

sub34615-33020

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90521-99058iVZV21..4FC198906-199107

34622PISTON, OVERDRIVE BRAKE

main34622-20010iVZV21..4FC198906-199107

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99043iVZV21..4FC198906-199107

OUTER

main90301-99044iVZV21..4FC198906-199107

INNER

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-32020iVZV21..4FC198906-199107

T=3.8

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-20011iVZV21..4FC198906-199107

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-32020iVZV21..4FC198906-199107

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-39003iVZV21..4FC198906-199107

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001×4iVZV21..4FC198906-199107

34710GBEARING, RADIAL BALL(FOR OVERDRIVE PLANETARY GEAR)

main90363-40039iVZV21..4FC198906-199107

sub90363-40053

34710HRING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR BEARING)

main90521-78003iVZV21..4FC198906-199107

34710JNUT(FOR OVERDRIVE PLANETARY GEAR)

main90179-40005iVZV21..4FC198906-199107

34710PWASHER(FOR OVERDRIVE PLANETARY GEAR)

main90209-40001iVZV21..4FC198906-199107

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-32010iVZV21..4FC198906-199107

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main34714-32021iVZV21..4FC198906-199107

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-93002iVZV21..4FC198906-199107

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32020iVZV21..4FC198906-199107

34731GEAR, OVERDRIVE PLANETARY RING

main34731-32021iVZV21..4FC198906-199105

main34731-32022iVZV21..4FC199105-199107

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99059iVZV21..4FC198906-199107

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-32020iVZV21..4FC198906-199107

sub34737-33010

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010×2iVZV21..4FC198906-199107

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-20010×2iVZV21..4FC198906-199106

main35633-33030×2iVZV21..4FC199106-199107

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34615-20010×2iVZV21..4FC198906-199107

T=3.0

35648CPLATE, CLUTCH (FOR OVERDRIVE BRAKE)

main35648-32040×3iVZV21..4FC198906-199107

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main35677-32070×3iVZV21..4FC198906-199106

main35677-33010×3iVZV21..4FC199106-199107

35748ARING, INTERMEDIATE SHAFT OIL SEAL (FOR OVERDRIVE)

main35748-32010iVZV21..4FC198906-199107

35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)

main35789-20020iVZV21..4FC198906-199107
