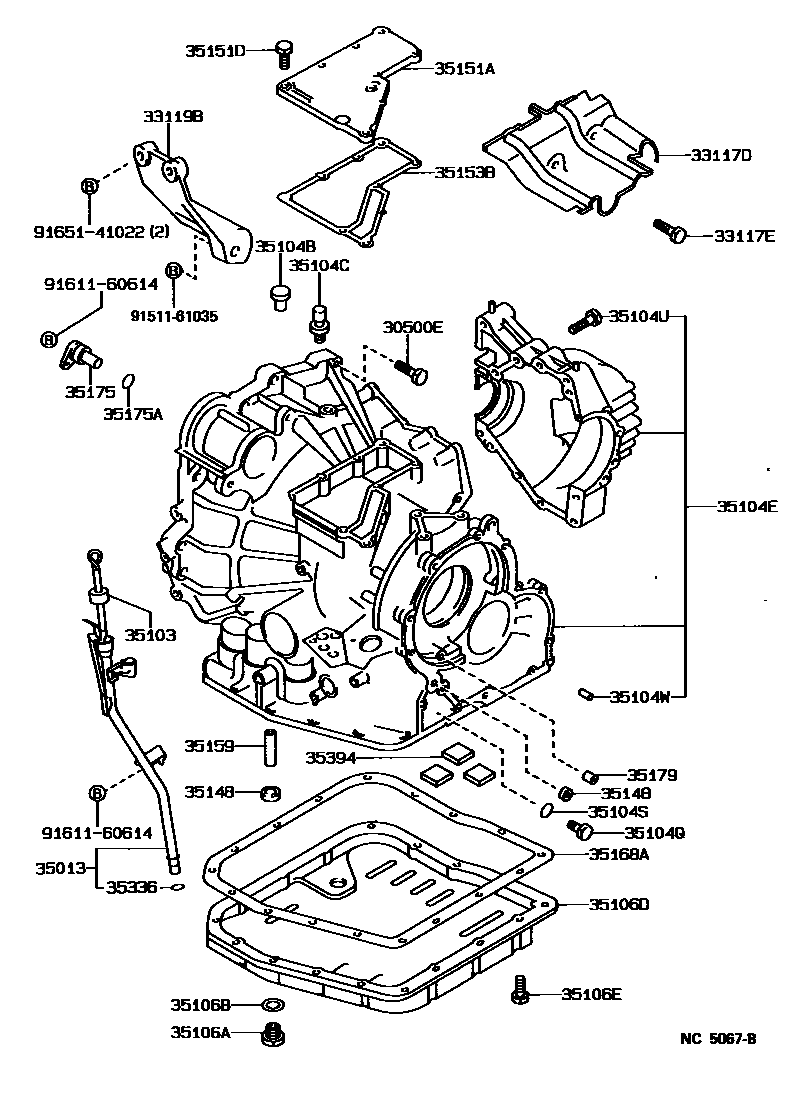

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-08040iVZV21..4FC198906-199107

*8-1.25PX18-15

sub91641-H0820

main90105-10077iVZV21..4FC198906-199107

*10-1.25PX43-26

main90119-12250iVZV21..4FC199105-199107

*12-1.25PX50-30

main91619-61245iVZV21..4FC198906-199105

*12-1.25PX45-30

main91619-61260iVZV21..4FC198906-199105

*12-1.25PX60-30

main91619-61265iVZV21..4FC199105-199107

*12-1.25PX65-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-32040iVZV21..4FC198906-199107

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iVZV21..4FC198906-199107

sub91641-H0820

33119BPLATE, STIFFENER, LH(ATM)

main33119-32040iVZV21..4FC198906-199107

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-32120iVZV21..4FC198906-199107

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-32090iVZV21..4FC198906-199105

main35103-32091iVZV21..4FC199105-199107

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iVZV21..4FC198906-199107

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03119iVZV21..4FC198906-199106

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-32091iVZV21..4FC198906-199005

sub35104-32092

sub32901-32050

main35104-32092iVZV21..4FC199005-199012

sub35104-32096

sub35424-32021

sub90301-30005

sub90501-29029

main35104-32094iVZV21..4FC199012-199106

sub35104-32095

main35104-33010iVZV21..4FC199106-199107

sub35104-33011

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iVZV21..4FC198906-199107

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iVZV21..4FC198906-199107

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10222iVZV21..4FC198906-199107

*10-1.25PX65-30

main90105-10223iVZV21..4FC198906-199107

*10-1.25PX75-30

main90105-10224iVZV21..4FC198906-199107

*10-1.25PX100-30

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10232iVZV21..4FC198906-199107

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iVZV21..4FC198906-199107

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iVZV21..4FC198906-199107

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-32040iVZV21..4FC198906-199102

sub35106-32041

main35106-32041iVZV21..4FC199102-199107

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iVZV21..4FC198906-199107

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iVZV21..4FC198906-199107

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-32011iVZV21..4FC198906-199106

main35151-33010iVZV21..4FC199106-199107

35151DBOLT (FOR TRANSAXLE CASE UPPER COVER)

main90105-06113iVZV21..4FC198906-199107

*6-1.00PX20-18

sub91511-H0620

main90109-08167iVZV21..4FC198906-199107

*8-1.25PX28-20

sub90105-08174

main90109-10120iVZV21..4FC198906-199107

*10-1.25PX30-22

35153BGASKET, TRANSAXLE CASE UPPER COVER

main35153-32010iVZV21..4FC198906-199106

main35153-33010iVZV21..4FC199106-199107

35159GASKET, BRAKE DRUM

main35159-32011iVZV21..4FC198906-199107

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-32020iVZV21..4FC198906-199107

sub35168-33020

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iVZV21..4FC198906-199107

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iVZV21..4FC198906-199107

35179GASKET, OVERDRIVE BRAKE

main35179-32010iVZV21..4FC198906-199107

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iVZV21..4FC198906-199107

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iVZV21..4FC198906-199107

9151161035

main91511-61035

9161160614

main91611-60614

9165141022

main91651-41022

31 parts on this diagram · 1 diagram in section
