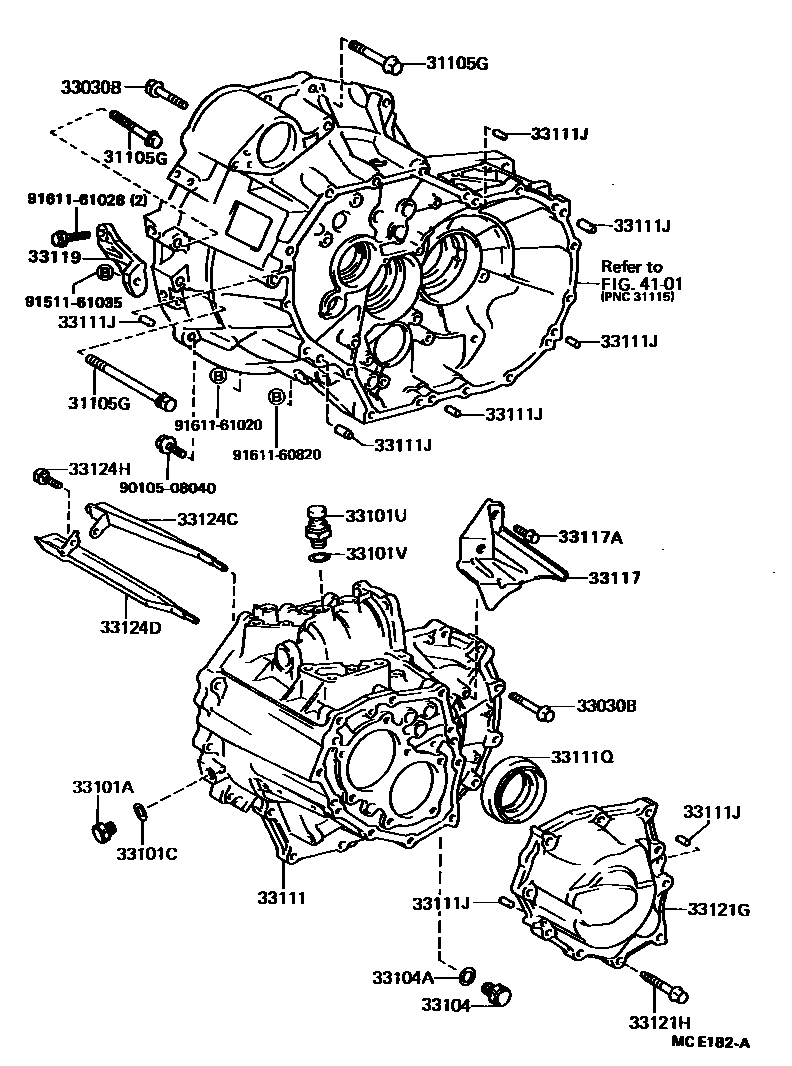

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*12-1.25PX72-25
*12-1.25PX55-30
*12-1.25PX60-30
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)
sub90930-03148
33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
sub33101-33010
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
L=24,OD=12
33111QSEAL, OIL(FOR TRANSMISSION CASE)
sub90311-50027
33117PROTECTOR, MANUAL TRANSMISSION CASE
33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
sub91641-H0820
33119PLATE, STIFFENER, LH(MTM)
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124HBOLT(FOR OIL RECEIVER PIPE)
sub90119-08830
4101
9010508040
main90105-08040
9151161035
main91511-61035
9161160820
main91611-60820
9161161020
main91611-61020
9161161028
main91611-61028
25 parts on this diagram · 1 diagram in section
