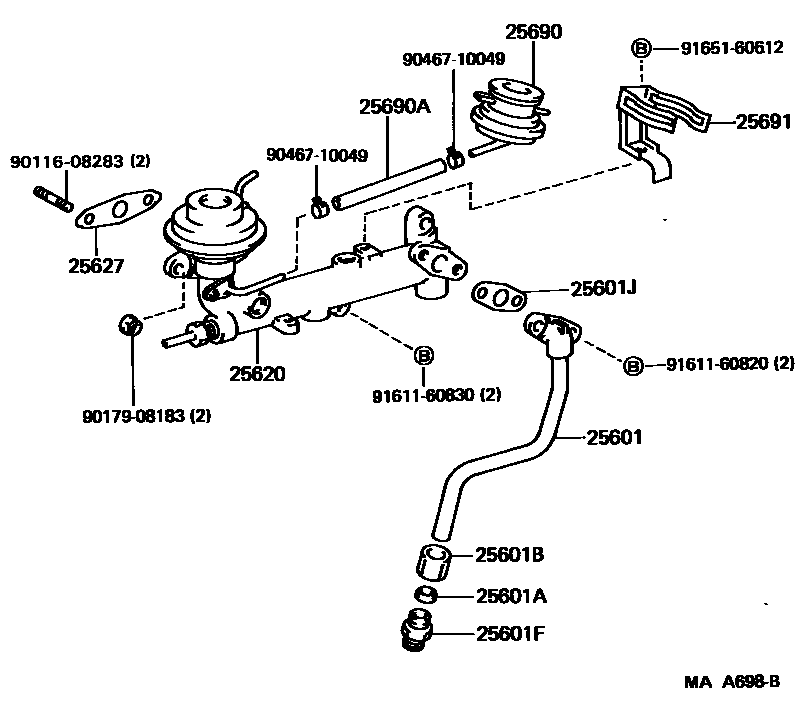

EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
25601ASLEEVE, BALL, EGR PIPE, NO.1
25601BNUT, UNION, EGR PIPE, NO.1
25601FUNION(FOR EGR PIPE, NO.1)
25601JGASKET(FOR EGR PIPE, NO.1)
25620VALVE ASSY, EGR
25627GASKET, EGR VALVE
25690MODULATOR ASSY, EGR VACUUM
25690AHOSE(FOR EGR VACUUM MODULATOR)
25691BRACKET, EGR VACUUM MODULATOR
9011608283
main90116-08283
9017908183
main90179-08183
9046710049
main90467-10049
9161160820
main91611-60820
9161160830
main91611-60830
9165160612
main91651-60612
16 parts on this diagram · 1 diagram in section
