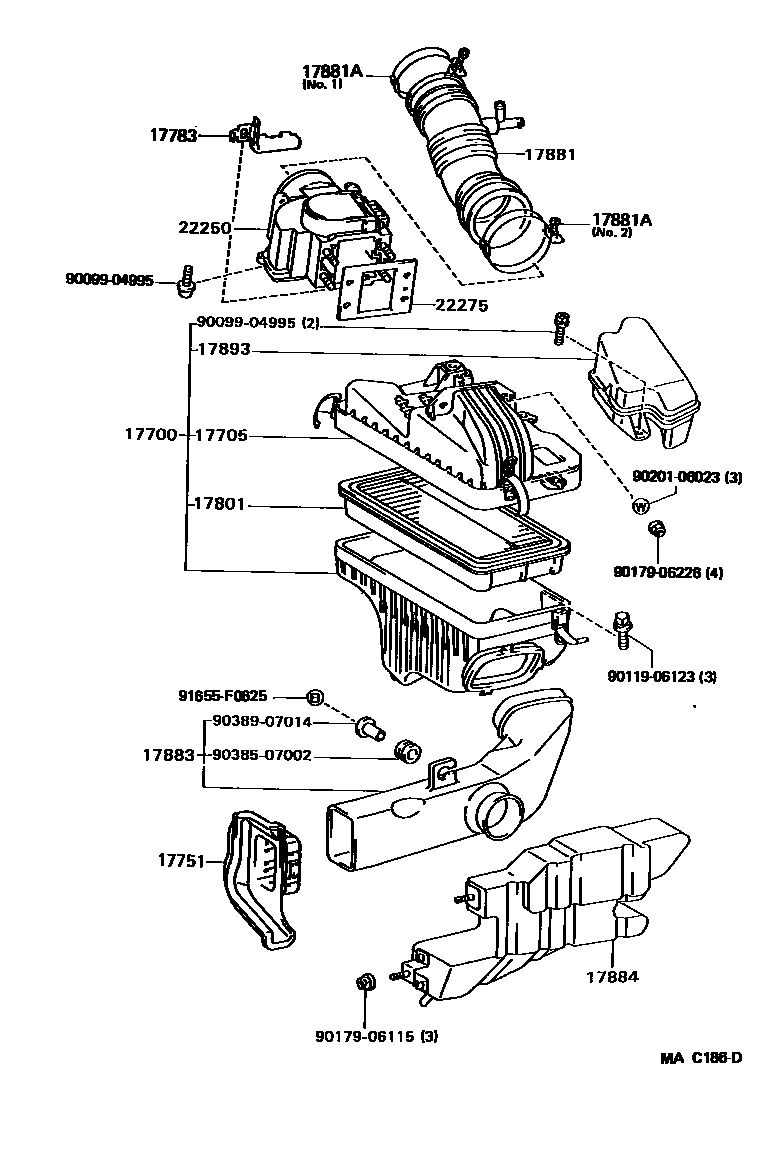

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-62020i2VZFE..VZV21198906-199107

17705CAP SUB-ASSY, AIR CLEANER

main17705-62020i2VZFE..VZV21198906-199107

17751INLET, AIR CLEANER, NO.1

main17751-62020i2VZFE..VZV21..CND199008-199107

17783PLATE, AIR CLEANER BAFFLE

main17783-74030i2VZFE..VZV21198906-199107

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74020i2VZFE..VZV21198906-199107

17881HOSE, AIR CLEANER, NO.1

main17881-62020i2VZFE..VZV21198906-199107

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i2VZFE..VZV21198906-199107

NO.1

main96111-10900i2VZFE..VZV21198906-199107

NO.2

17883HOSE, AIR CLEANER, NO.3

main17882-63110i2VZFE..VZV21198906-199107

17884HOSE, AIR CLEANER, NO.4

main17883-62010i2VZFE..VZV21198906-198908

sub17883-62011

main17883-62011i2VZFE..VZV21198908-199107

17893RESONATOR, INTAKE AIR

main17893-62010i2VZFE..VZV21198906-199107

22250METER ASSY, INTAKE AIR FLOW

main22250-62020i2VZFE..VZV21198906-199107

22275GASKET, AIR FLOW METER

main22275-43010i2VZFE..VZV21198906-199107

9009904995

main90099-04995

9011906123

main90119-06123

9017906115

main90179-06115

9017906226

main90179-06226

9020106023

main90201-06023

9038507002

main90385-07002

9038907014

main90389-07014

91655F0625

main91655-F0625

20 parts on this diagram · 1 diagram in section
