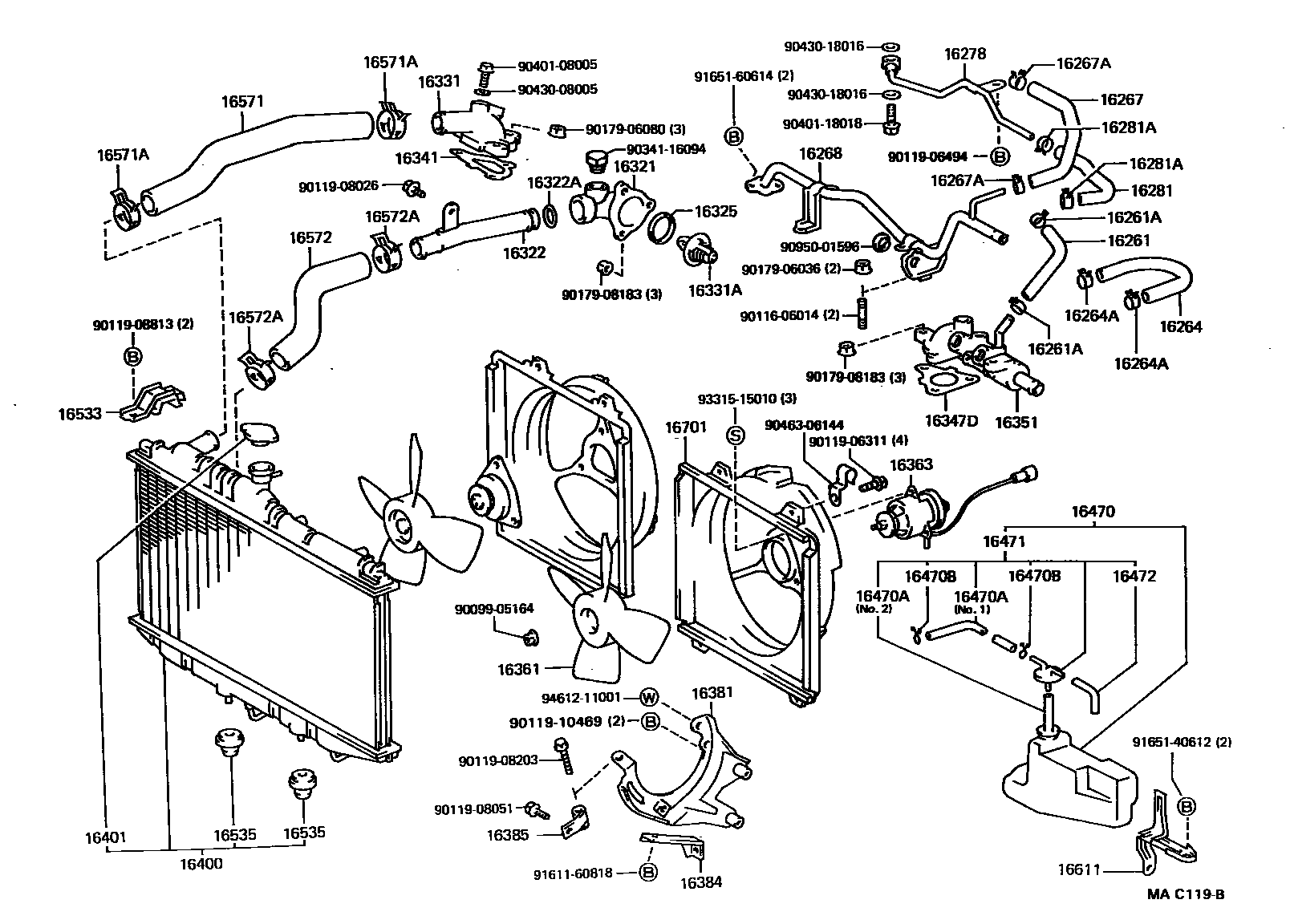

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51300
16278PIPE, WATER BY-PASS, NO.2
16281HOSE, WATER BY-PASS, NO.4
16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
sub96135-51300
16321INLET, WATER
16322PIPE, WATER INLET
16322ARING, O(FOR WATER INLET)
sub96761-35031
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
16347DGASKET, WATER BY-PASS
16351OUTLET, WATER BY-PASS
16361FAN
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
sub16381-62030
16384BRACKET, FAN BELT ADJUSTING BAR
16385SLIDER, FAN BELT ADJUSTING
16401CAP SUB-ASSY, RADIATOR
sub16401-20353
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
sub16405-62011
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37005
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-34004
16611BRACKET, RADIATOR RESERVE TANK
16701SHROUD SUB-ASSY, FAN
9009905164
main90099-05164
9011606014
main90116-06014
9011906311
main90119-06311
9011906494
main90119-06494
9011908026
main90119-08026
9011908051
main90119-08051
9011908203
main90119-08203
9011908813
main90119-08813
9011910469
main90119-10469
9017906036
main90179-06036
9017906080
main90179-06080
9017908183
main90179-08183
9034116094
main90341-16094
9040108005
main90401-08005
9040118018
main90401-18018
9043008005
main90430-08005
9043018016
main90430-18016
9046306144
main90463-06144
9095001596
main90950-01596
9161160818
main91611-60818
9165140612
main91651-40612
9165160614
main91651-60614
9331515010
main93315-15010
9461211001
main94612-11001
63 parts on this diagram · 2 diagrams in section
