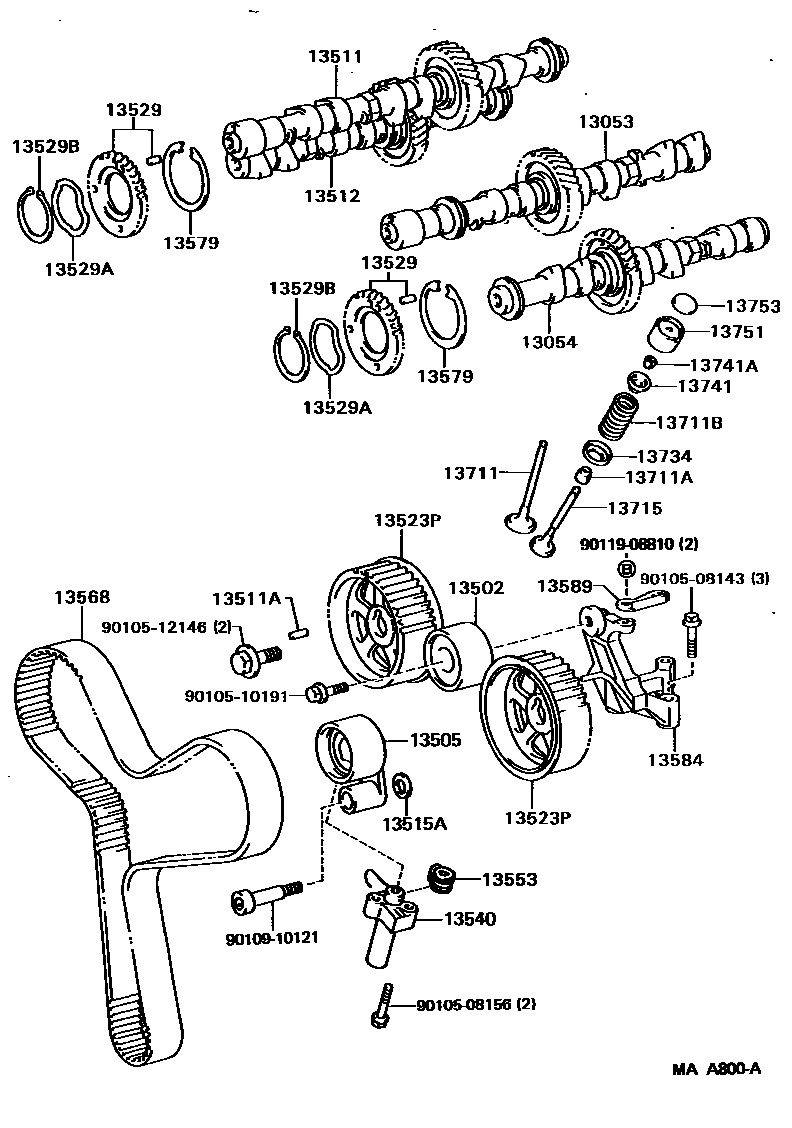

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
13512CAMSHAFT, NO.2
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13529GEAR, CAMSHAFT SUB
sub13529-62901
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13553COVER, CHAIN TENSIONER DUST
13579WASHER, CAMSHAFT TIMING GEAR BOLT
sub13579-50020
13584BRACKET, TIMING BELT IDLER
13589STAY, IDLER BRACKET
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.55
T=3.25
T=3.30
9010508143
main90105-08143
9010508156
main90105-08156
9010510191
main90105-10191
9010512146
main90105-12146
9010910121
main90109-10121
9011908810
main90119-08810
33 parts on this diagram · 1 diagram in section
