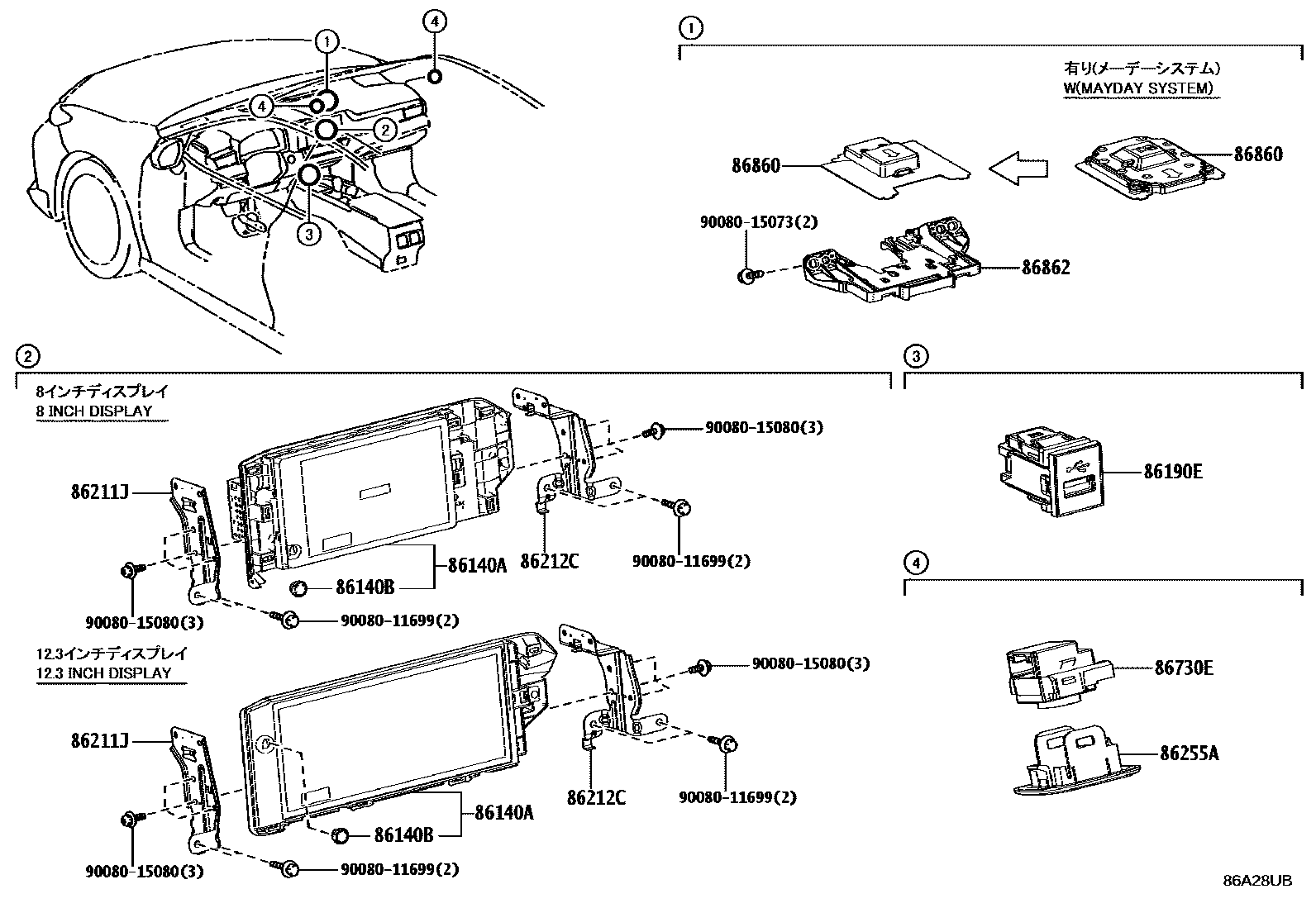

NAVIGATION & FRONT MONITOR DISPLAY
86140ARECEIVER ASSY, RADIO & DISPLAY
DENSO TEN
DENSO TEN,CONVENIENT PACKAGE&AUDIO-12.3INCH PREMIUM&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST)
DENSO TEN
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
86190EADAPTER ASSY, STEREO JACK
86211JBRACKET, RADIO RECEIVER, NO.1
86212CBRACKET, RADIO RECEIVER, NO.2
86255ACASE, MICROPHONE, NO.1
LT.GRAY,TRIM1#,2#
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#
86730EMICROPHONE ASSY
86860ANTENNA ASSY, NAVIGATION
86862BRACKET, NAVIGATION ANTENNA
9008011699
9008015073
main90080-15073
9008015080
12 parts on this diagram · 1 diagram in section
