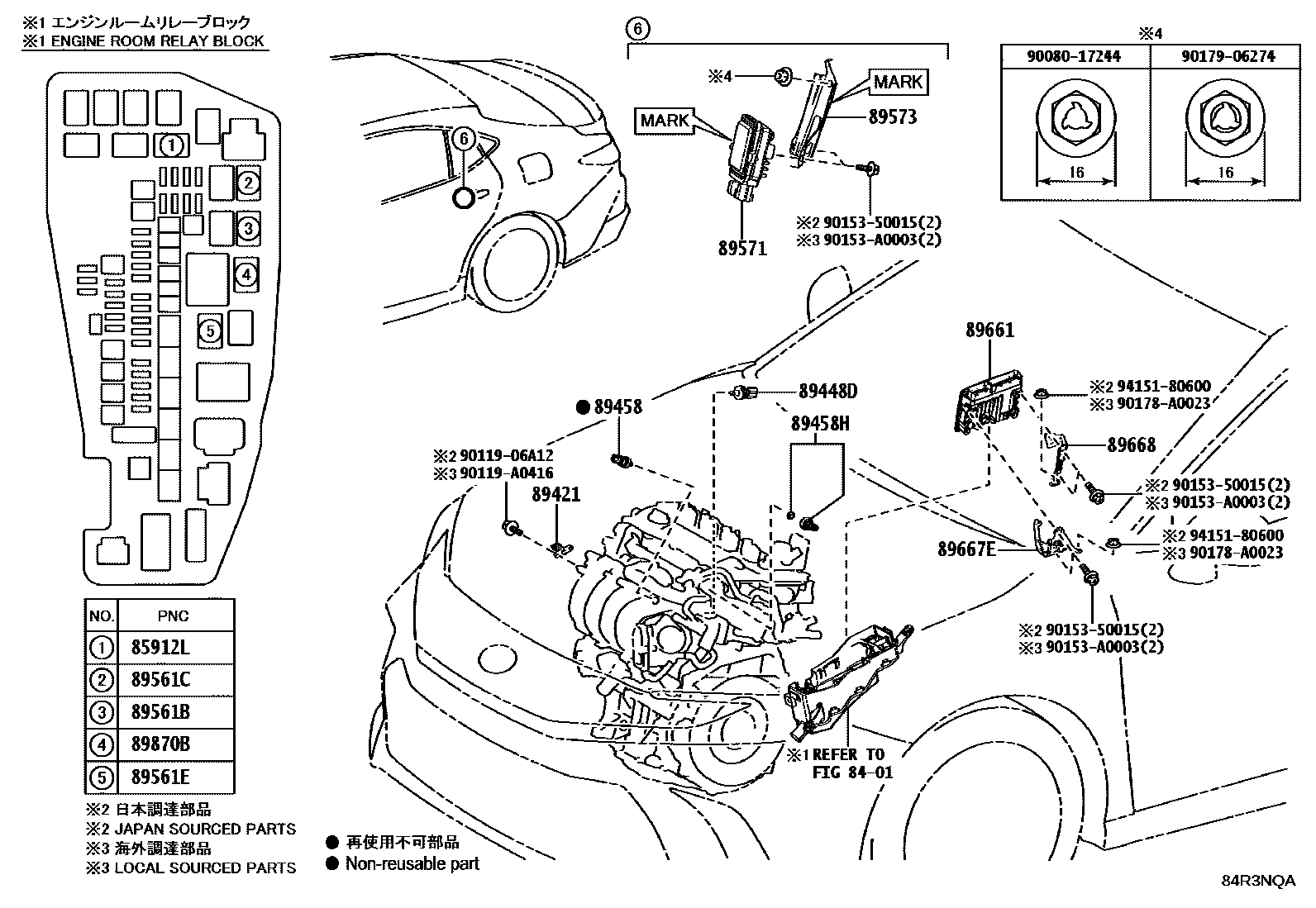

ELECTRONIC FUEL INJECTION SYSTEM

8401

85912LRELAY, VVT

main90080-87026iAXVH8#202404

sub90987-02027

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-06020iAXVH8#202404

(L)

main89421-33010iAXVH8#202404

(J)

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-06010iAXVH8#202404

(L)

main89448-33010iAXVH8#202404

(J)

89458SENSOR, FUEL PRESSURE

main89458-06010iAXVH8#202404

(L)

main89458-33030iAXVH8#202404

(J)

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-06022iAXVH8#202404

(L)

main89458-33042iAXVH8#202404

(J)

89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

main90080-87026iAXVH8#202404

sub90987-02027

89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

main90080-87026iAXVH8#202404

sub90987-02027

89561ERELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3

main90987-02033iAXVH8#202404

89571COMPUTER, FUEL PUMP CONTROL

main89571-0R010iAXVH8#202404

(L)

main89571-42010iAXVH8#202404

(J)

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-06100iAXVH8#202404

89661COMPUTER, ENGINE CONTROL

main89661-0XC00iAXVH8#202404

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-06370iAXVH8#202404

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06370iAXVH8#202404

89870BRELAY, ELECTRONIC DRIVER UNIT

main90080-87026iAXVH8#202404

sub90987-02027

9008017244

main90080-17244

9011906A12

main90119-06A12

90119A0416

main90119-A0416

9015350015

main90153-50015

90153A0003

main90153-A0003

90178A0023

main90178-A0023

9017906274

main90179-06274

9415180600

main94151-80600

23 parts on this diagram · 1 diagram in section
