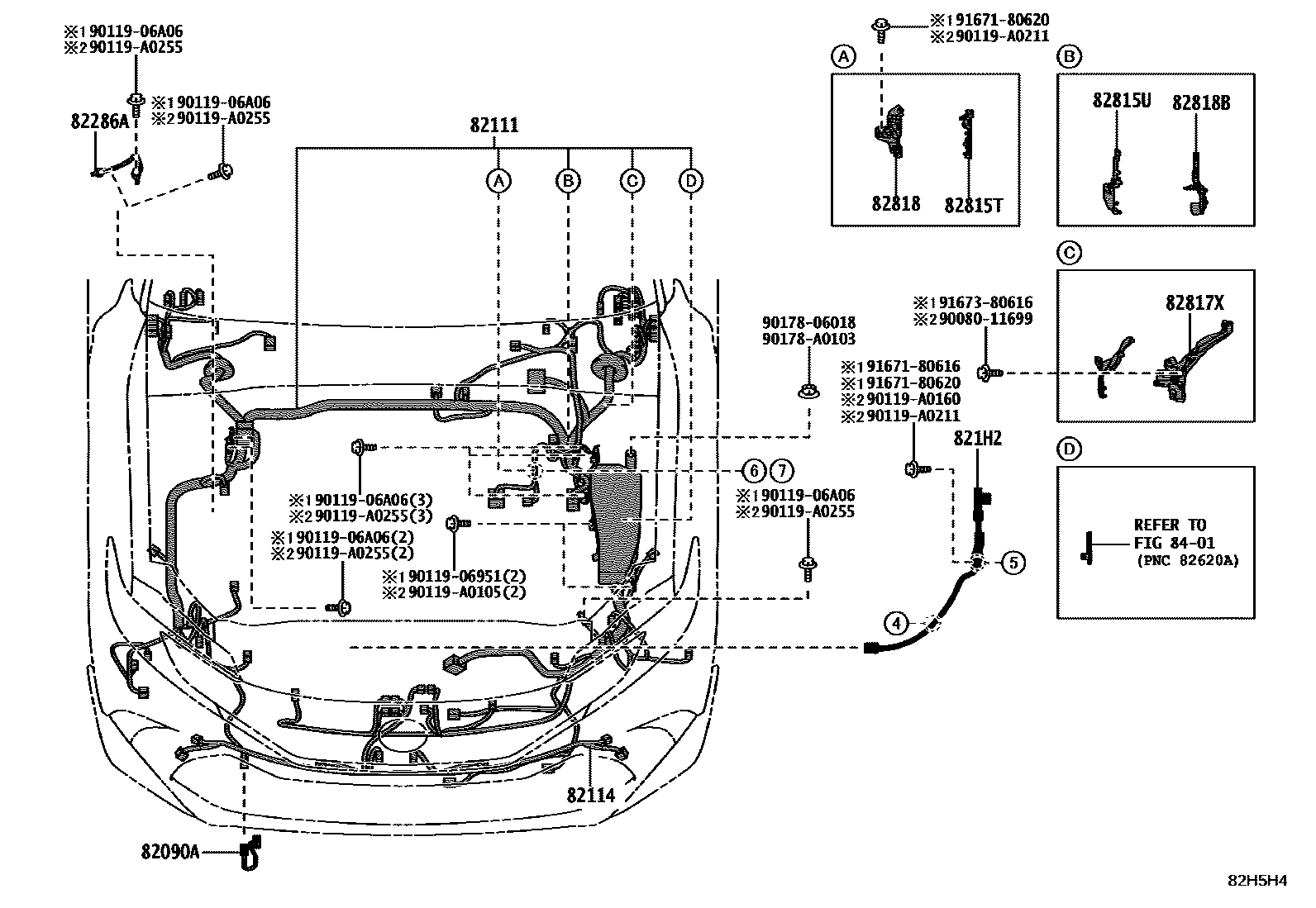

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 1/2 0003 1ENGINE 2/2 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1HIGH VOLTAGE CABLE 0008 1HIGH VOLTAGE CABLE 0009 1SEAT 0010 1CLAMP & BRACKET 0011 1CONNECTOR 1/2 0012 1CONNECTOR 2/2

82090AWIRE ASSY, EXTENSION

main82090-06030iAXVH8#202404

82111WIRE, ENGINE ROOM MAIN

main82111-AQ020iAXVH80..N,S202404

CANADA SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL

main82111-AQ040iAXVH80..G,P202404

main82111-AQ090iAXVH85..G,P202404

main82111-AQ110iAXVH85..N,S202404

82114WIRE, ENGINE ROOM, NO.4

main82114-AQ030iAXVH8#202404

821H2WIRE, HV AIR CONDITIONER

main821H2-06080iAXVH80202404

main821H2-06090iAXVH85202404

82286AWIRE, EARTH, NO.2

main82286-33020iAXVH8#202404

82815TCOVER, WIRING HARNESS PROTECTOR, NO.16

main82815-33Q80iAXVH8#202404

82815UCOVER, WIRING HARNESS PROTECTOR, NO.17

main82815-33R00iAXVH8#202404

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-33R20iAXVH8#202404

82817XPROTECTOR, WIRING HARNESS, NO.17

main82817-3T760iAXVH8#202404

82818PROTECTOR, WIRING HARNESS, NO.2

main82817-3T790iAXVH8#202404

82818BPROTECTOR, WIRING HARNESS, NO.3

main82817-3T810iAXVH8#202404

8401

9008011699

main90080-11699

9011906951

main90119-06951

9011906A06

main90119-06A06

90119A0105

main90119-A0105

90119A0160

main90119-A0160

90119A0211

main90119-A0211

90119A0255

main90119-A0255

9017806018

main90178-06018

90178A0103

main90178-A0103

9167180616

main91671-80616

9167180620

main91671-80620

9167380616

main91673-80616

24 parts on this diagram · 12 diagrams in section
