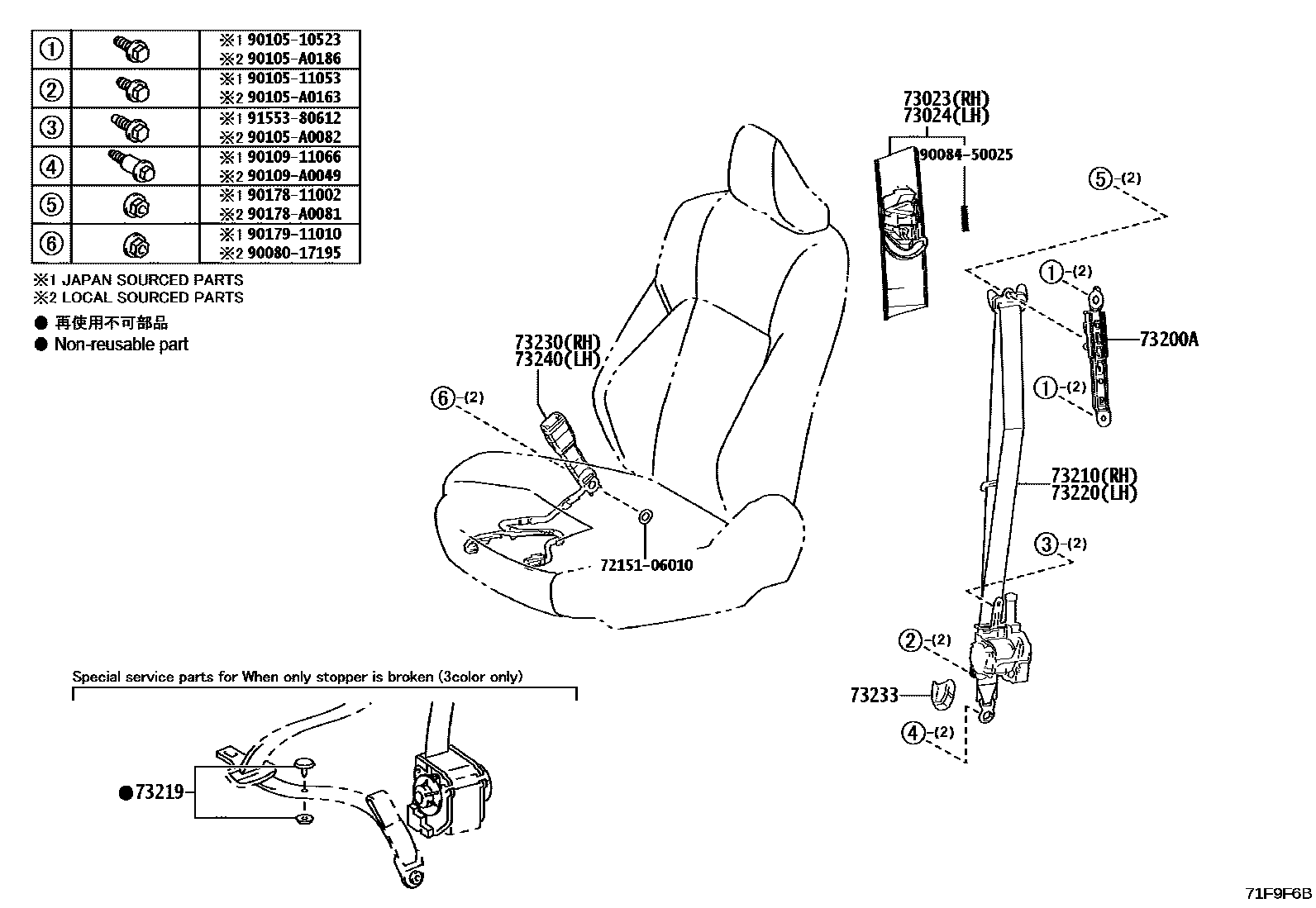

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM1#,2#
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM1#,2#
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM1#,2#
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM1#,2#
BLACK,TRIM2#,3#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#
CONVENIENT PACKAGE,BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL,BLACK,TRIM1#,2#
7215106010RAIL, SEAT TRACK, LOWER RH
main72151-06010
9008017195
main90080-17195
9008450025
main90084-50025
9010510523
main90105-10523
9010511053
main90105-11053
90105A0082
main90105-A0082
90105A0163
main90105-A0163
90105A0186
main90105-A0186
9010911066
main90109-11066
90109A0049
main90109-A0049
9017811002
main90178-11002
90178A0081
main90178-A0081
9017911010
main90179-11010
9155380612
main91553-80612
23 parts on this diagram · 2 diagrams in section
