EPC Data

FRONT SEAT & SEAT TRACK

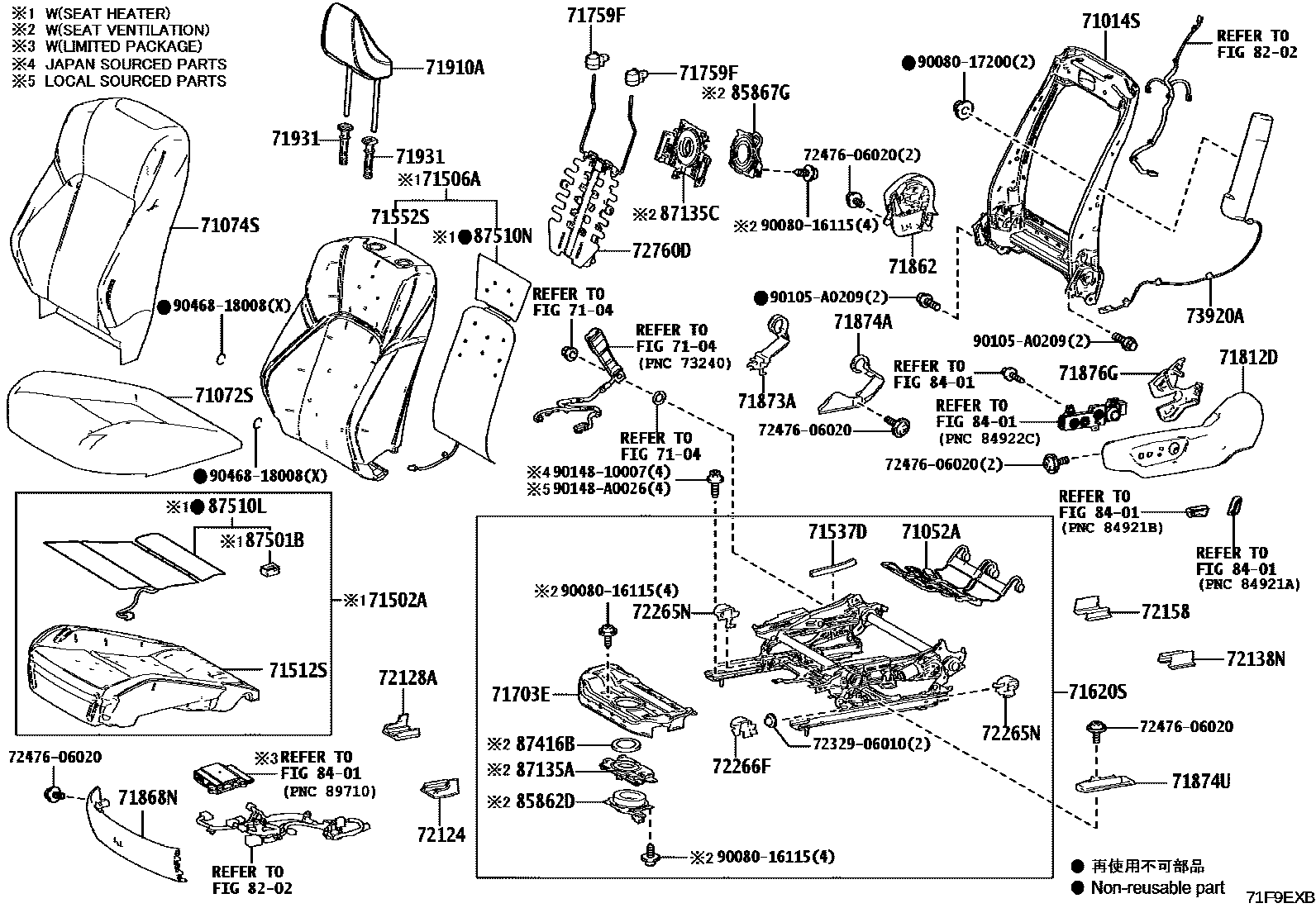

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-AQ010i202404
HAWAII SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL
main71014-AQ010i202404
PUERTO RICO SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL
main71014-AQ010i202404
CANADA SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL
main71014-AQ020i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71014-AQ020i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71014-AQ020i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71014-AQ020i202404
CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-06030i202404
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-AQ010-B3i202404
LT GRAY/GREEN,TRIM1#
main71072-AQ010-C3i202404
BLACK/BROWN,TRIM2#
main71072-AQ030-C3i202404
BLACK/BLUE BACKING,TRIM2#
main71072-AQ030-D1i202404
SENSUAL RED,TRIM3#
main71072-AQ040-B0i202404
MD.GRAY,TRIM1#
main71072-AQ040-C0i202404
BLACK,TRIM2#
main71072-AQ060-B0i202404
MD GRAY/WHITE,TRIM1#
main71072-AQ060-C0i202404
BLACK/WHITE,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-AQ020-B1i202404
LT GRAY/BLACK/GREEN,TRIM1#
main71074-AQ020-C2i202404
BLACK/BROWN,TRIM2#
main71074-AQ030-B0i202404
MD GRAY/BLACK/WHITE,TRIM1#
main71074-AQ030-C0i202404
BLACK/WHITE,TRIM2#
main71074-AQ040-C3i202404
BLACK/BLUE BACKING,TRIM2#
main71074-AQ040-D1i202404
SENSUAL RED/BLACK,TRIM3#
main71074-AQ050-B0i202404
MD.GRAY/BLACK,TRIM1#
main71074-AQ050-C0i202404
BLACK,TRIM2#
71502APAD SUB-ASSY, FRONT SEAT CUSHION, LH
main71502-AQ020i202404
CANADA SPEC
main71502-AQ020i202404
CANADA SPEC&HEATER PACKAGE
main71502-AQ020i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71502-AQ020i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71502-AQ020i202404
HEATER PACKAGE
main71502-AQ020i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
71506APAD SUB-ASSY, FRONT SEATBACK, LH
main71506-AQ020i202404-202410
CANADA SPEC
main71506-AQ020i202404-202410
CANADA SPEC&HEATER PACKAGE
main71506-AQ020i202404-202410
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71506-AQ020i202404-202410
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71506-AQ020i202404-202410
HEATER PACKAGE
main71506-AQ020i202404-202410
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71506-AQ021i202411
CANADA SPEC
main71506-AQ021i202411
CANADA SPEC&HEATER PACKAGE
main71506-AQ021i202411
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71506-AQ021i202411
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71506-AQ021i202411
HEATER PACKAGE
main71506-AQ021i202411
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-AQ010i202404
HAWAII SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL
main71512-AQ010i202404
PUERTO RICO SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL
main71512-AQ010i202404
CANADA SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL
main71512-AQ020i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71512-AQ020i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71512-AQ020i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71512-AQ020i202404
CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH
main71537-06210i202404
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-AQ010i202404-202410
main71552-AQ011i202411
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-AQ020i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71620-AQ020i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71620-AQ020i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71620-AQ020i202404
CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main71620-AQ040i202404
HAWAII SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL
main71620-AQ040i202404
PUERTO RICO SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL
main71620-AQ040i202404
CANADA SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL
71703EPANEL SUB-ASSY, FRONT SEAT CUSHION, LH
main71703-07020i202404
71759FHOOK, FRONT SEATBACK, LH
main71759-06020i202404-202405
main71759-AN010i202406
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-06550-C0i202404
BLACK,TRIM1#,2#
main71812-06550-C0i202404
HAWAII SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL,BLACK,TRIM1#,2#
main71812-06550-C0i202404
PUERTO RICO SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL,BLACK,TRIM1#,2#
main71812-06550-C0i202404
CANADA SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL,BLACK,TRIM1#,2#
main71812-AQ010-C0i202404
BLACK,TRIM2#,3#
main71812-AQ010-C0i202404
BLACK,TRIM1#,2#
main71812-AQ010-C0i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71812-AQ010-C0i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71812-AQ010-C0i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71812-AQ010-C0i202404
CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-06330-C0i202404
BLACK,TRIM1#,2#
main71862-06330-C0i202404
HAWAII SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL,BLACK,TRIM1#,2#
main71862-06330-C0i202404
PUERTO RICO SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL,BLACK,TRIM1#,2#
main71862-06330-C0i202404
CANADA SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL,BLACK,TRIM1#,2#
main71862-06420-C0i202404
BLACK,TRIM2#,3#
main71862-06420-C0i202404
BLACK,TRIM1#,2#
main71862-06420-C0i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71862-06420-C0i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71862-06420-C0i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71862-06420-C0i202404
CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
71868NSHIELD, FRONT SEAT CUSHION, FRONT LH
main71868-06170-C0i202404
BLACK,TRIM2#,3#
main71868-06170-C0i202404
BLACK,TRIM1#,2#
main71868-06170-C0i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71868-06170-C0i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71868-06170-C0i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71868-06170-C0i202404
CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-06600-C0i202404
BLACK
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-06610-C0i202404
BLACK
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06620-C0i202404
BLACK
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06630-C0i202404
BLACK
71874USHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06690i202404
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-06630-C0i202404
BLACK,TRIM1#,2#
main71876-06630-C0i202404
HAWAII SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL,BLACK,TRIM1#,2#
main71876-06630-C0i202404
PUERTO RICO SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL,BLACK,TRIM1#,2#
main71876-06630-C0i202404
CANADA SPEC&FRONT SEAT ADJUSTER-*DRP:6WAY MANUAL,BLACK,TRIM1#,2#
main71876-06640-C0i202404
BLACK,TRIM2#,3#
main71876-06640-C0i202404
BLACK,TRIM1#,2#
main71876-06640-C0i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71876-06640-C0i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71876-06640-C0i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
main71876-06640-C0i202404
CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL,BLACK,TRIM1#,2#
71910AHEADREST ASSY, FRONT SEAT
main71910-AQ010-B0i202404
MD.GRAY,TRIM1#
main71910-AQ010-C0i202404
BLACK,TRIM2#
main71910-AQ020-B0i202404
GRAY/WHITE,TRIM1#
main71910-AQ020-B2i202404
LT GRAY/WHITE,TRIM1#
main71910-AQ020-C0i202404
BLACK/WHITE,TRIM2#
main71910-AQ020-C3i202404
BLACK/BLUE,TRIM2#
main71910-AQ020-C4i202404
BLACK/BROWN,TRIM2#
main71910-AQ020-D0i202404
RED,TRIM3#
71931SUPPORT, FRONT SEAT HEADREST
main71930-06060-B2i202404
W(LOCK),LT.GRAY,TRIM1#
main71930-06060-C0i202404
W(LOCK),BLACK,TRIM2#,3#
main71930-06060-C0i202404
W(LOCK),BLACK,TRIM2#
main71930-06060-C0i202404
W(LOCK),BLACK,TRIM1#,2#
main71931-06050-B2i202404
W/O(LOCK),LT.GRAY,TRIM1#
main71931-06050-C0i202404
W/O(LOCK),BLACK,TRIM2#,3#
main71931-06050-C0i202404
W/O(LOCK),BLACK,TRIM2#
main71931-06050-C0i202404
W/O(LOCK),BLACK,TRIM1#,2#
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72127-06100i202404
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-06100i202404
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72138-06110i202404
72158COVER, SEAT TRACK BRACKET, INNER LH
main72158-06190i202404
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-06010i202404
72265NCOVER, SEAT TRACK UPPER RAIL, LH
main72265-06010i202404
72266FCOVER, SEAT TRACK UPPER RAIL, FRONT INNER(FOR LH SEAT)
main72266-06010i202404
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-0C010i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main72750-0C010i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main72750-0C010i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main72750-0C010i202404
CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-AQ010i202404
8202
8401
85862DBLOWER, SEAT CUSHION CLIMATE CONTROL, LH
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-AK010
85867GBLOWER, SEATBACK CLIMATE CONTROL, LH
87135ADAPTER, BLOWER FAN, RH(FOR SEAT CUSHION)
main87135-AQ010
main87135-07020
87135AADAPTER, BLOWER FAN, LH(FOR SEAT CUSHION)
87135CADAPTER, BLOWER FAN, LH(FOR SEATBACK)
87416BGASKET, AIR DUCT, LH
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-07010i202404
CANADA SPEC
main87501-07010i202404
CANADA SPEC&HEATER PACKAGE
main87501-07010i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main87501-07010i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main87501-07010i202404
HEATER PACKAGE
main87501-07010i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-AQ010i202404
CANADA SPEC
main87510-AQ010i202404
CANADA SPEC&HEATER PACKAGE
main87510-AQ010i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main87510-AQ010i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main87510-AQ010i202404
HEATER PACKAGE
main87510-AQ010i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-AQ010i202404
CANADA SPEC
main87530-AQ010i202404
CANADA SPEC&HEATER PACKAGE
main87530-AQ010i202404
CANADA SPEC&HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main87530-AQ010i202404
CANADA SPEC&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
main87530-AQ010i202404
HEATER PACKAGE
main87530-AQ010i202404
HEATER PACKAGE&CONVENIENT PACKAGE&FRONT SEAT ADJUSTER-*DRS:8WAY POWER/*PAS:6WAY MANUAL
7232906010COVER, SEAT ADJUSTER BOLT
main72329-06010
7247606020SCREW, HORIZONTAL JACK, INNER
main72476-06020
9008016115
main90080-16115¥60
9008017200
main90080-17200
90105A0209
main90105-A0209
9014810007
main90148-10007¥60
90148A0026
main90148-A0026
9046818008
main90468-18008¥80

53 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
