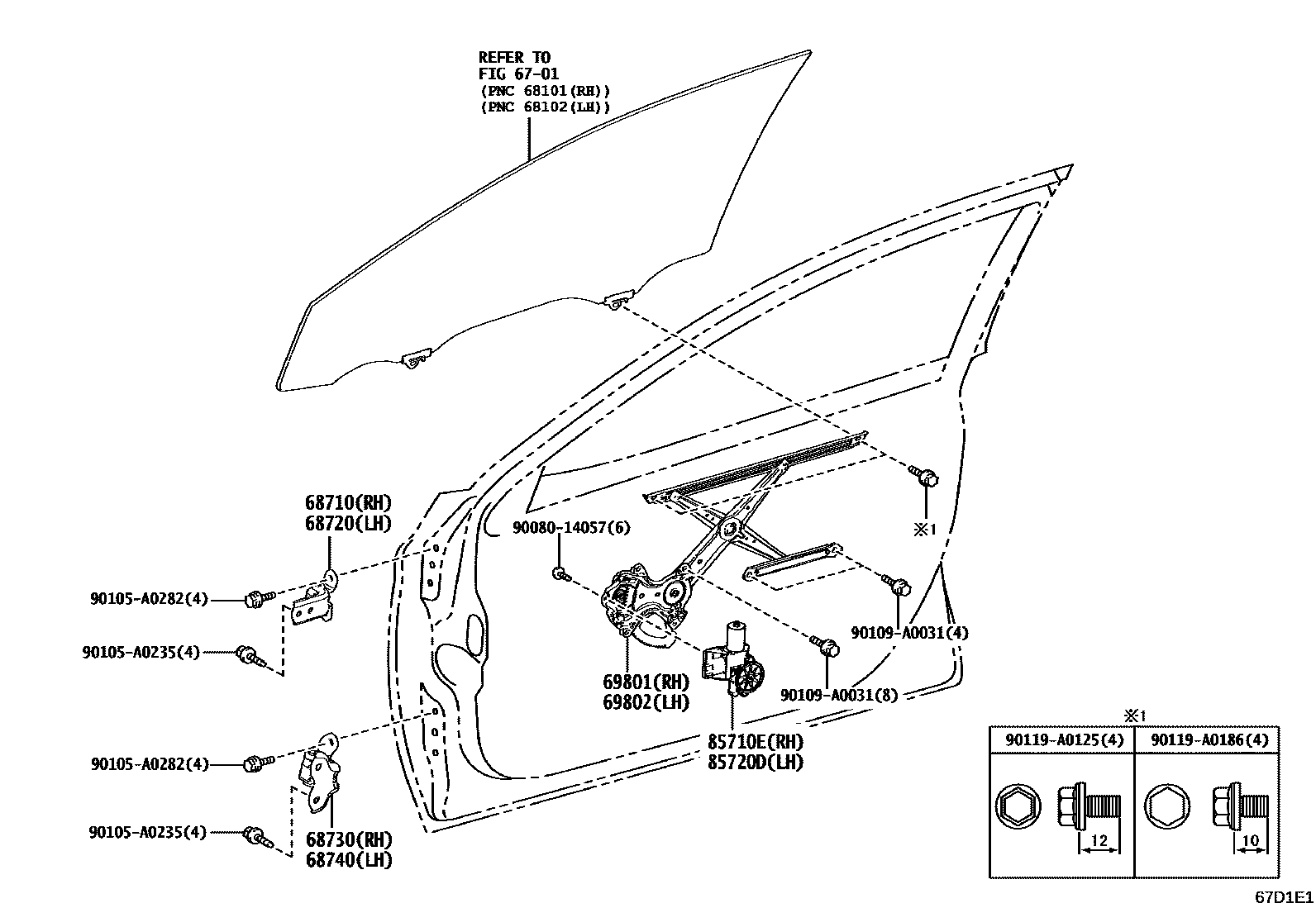

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iAXVH8#202404

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iAXVH8#202404

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02080iAXVH8#202404

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02080iAXVH8#202404

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06190iAXVH8#202404

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06190iAXVH8#202404

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AQ010iAXVH8#202404

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AQ010iAXVH8#202404

9008014057

main90080-14057

90105A0235

main90105-A0235

90105A0282

main90105-A0282

90109A0031

main90109-A0031

90119A0125

main90119-A0125

90119A0186

main90119-A0186

15 parts on this diagram · 1 diagram in section
