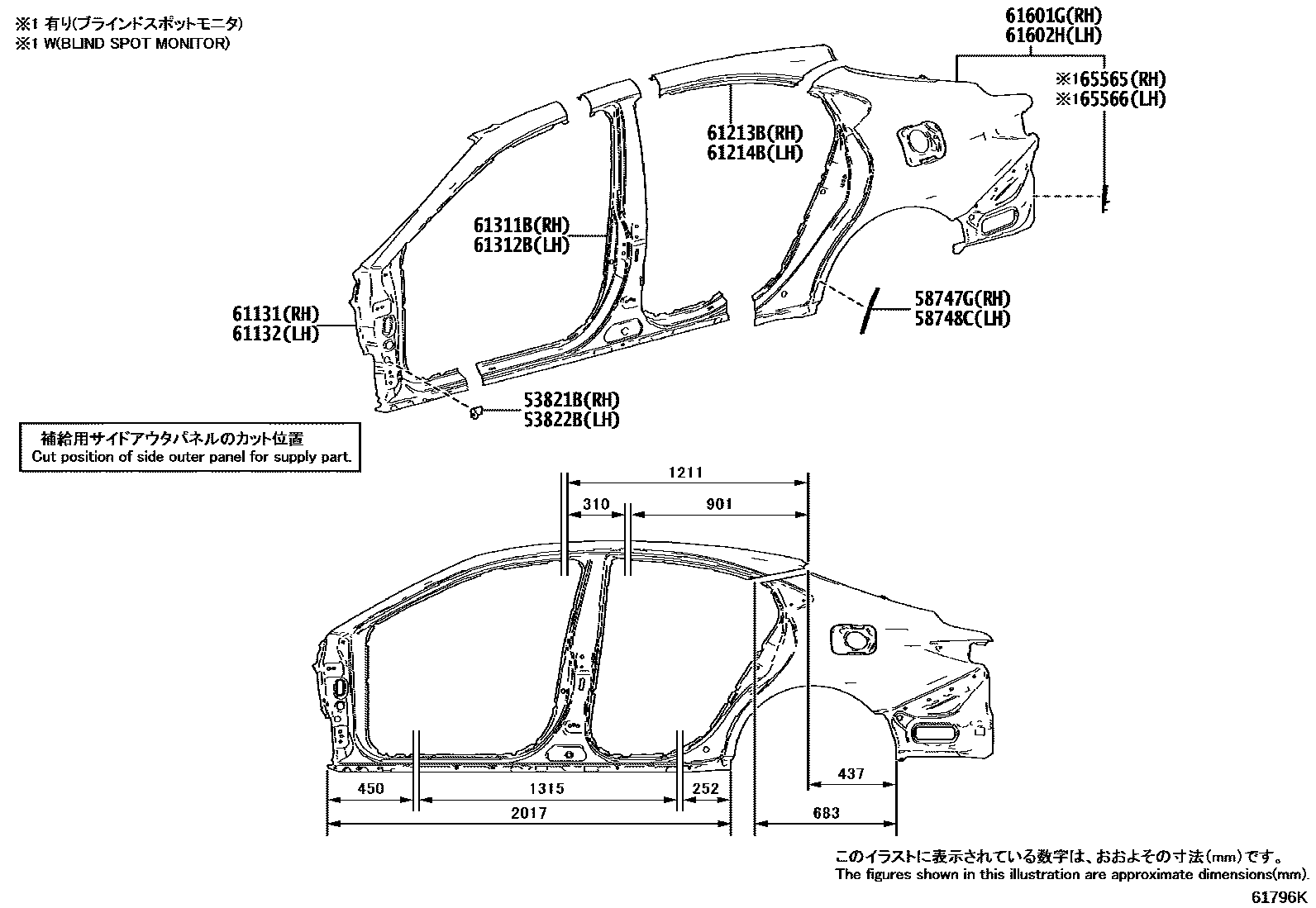

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-06180iAXVH8#202404

53822BBRACKET, FRONT FENDER, REAR LH

main53821-06180iAXVH8#202404

58747GPROTECTOR, QUARTER PANEL, REAR RH

main58747-06130iAXVH8#202404

58748CPROTECTOR, QUARTER PANEL, REAR LH

main58748-06130iAXVH8#202404

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-AQ010iAXVH8#202404

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-AQ010iAXVH8#202404

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-AQ020iAXVH8#202404

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-AQ020iAXVH8#202404

61311BPILLAR, CENTER BODY, OUTER RH

main61311-AQ010iAXVH8#202404

61312BPILLAR, CENTER BODY, OUTER LH

main61312-AQ010iAXVH8#202404

61601GPANEL SUB-ASSY, REAR BODY REAR SIDE, RH

main61601-AQ020iAXVH8#..G,P202404

REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST)

main61601-AQ030iAXVH8#..N,S202404

61602HPANEL SUB-ASSY, REAR BODY REAR SIDE, LH

main61602-AQ020iAXVH8#..G,P202404

REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST)

main61602-AQ030iAXVH8#..N,S202404

65565PATCH, SIDE PANEL REAR END, RH

main65565-06110iAXVH8#..G,P202404

REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST)

65566PATCH, SIDE PANEL REAR END, LH

main65565-06110iAXVH8#..G,P202404

REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST)

14 parts on this diagram · 3 diagrams in section
