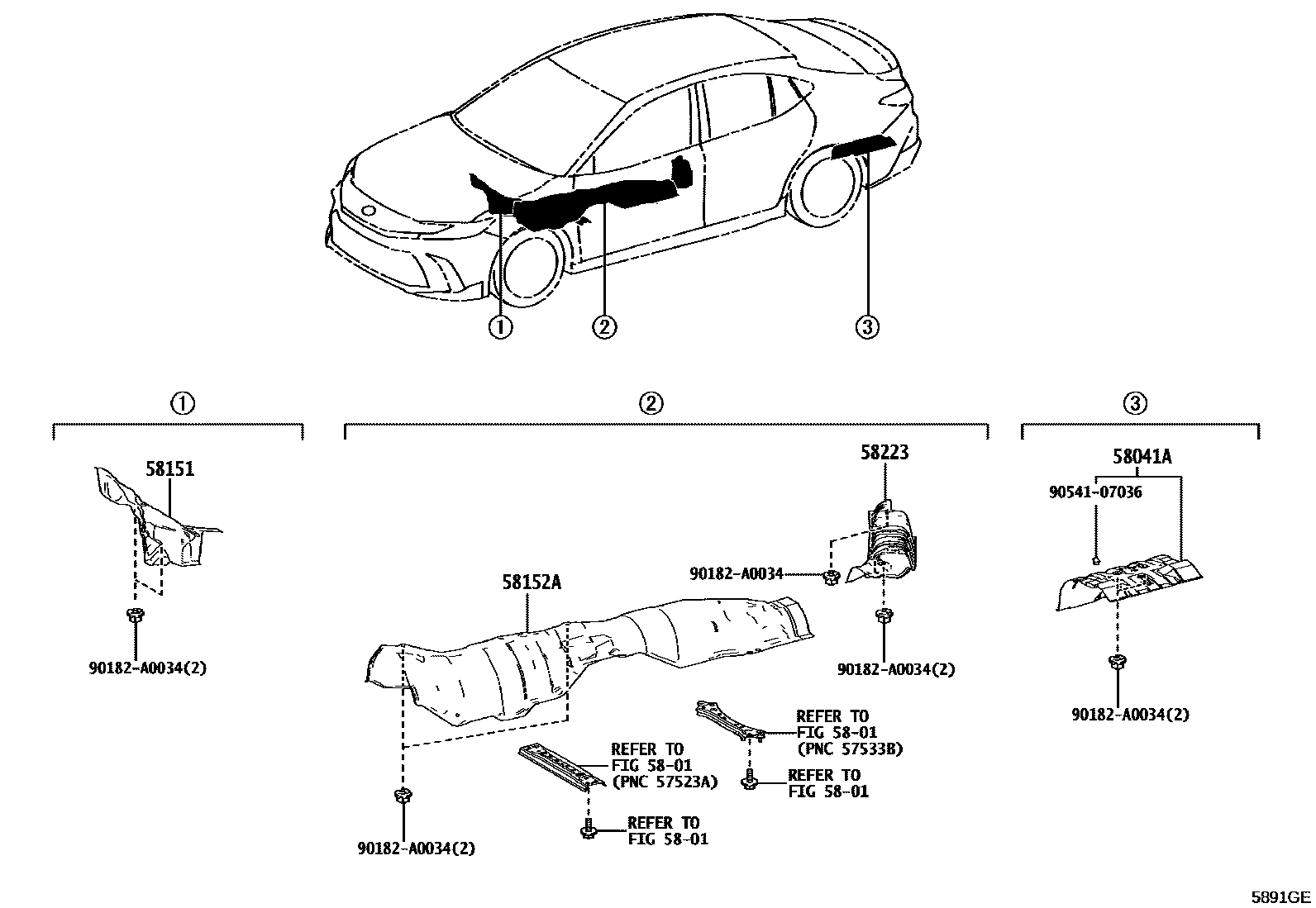

FLOOR INSULATOR

0001 1 0002 1

5801

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-06020iAXVH80202404

main58041-06030iAXVH85202404

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-06010iAXVH8#202404

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-06161iAXVH80202404

main58152-06240iAXVH85202404

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-06051iAXVH80202404

main58223-06090iAXVH85202404

90182A0034

main90182-A0034

9054107036

main90541-07036

7 parts on this diagram · 2 diagrams in section
