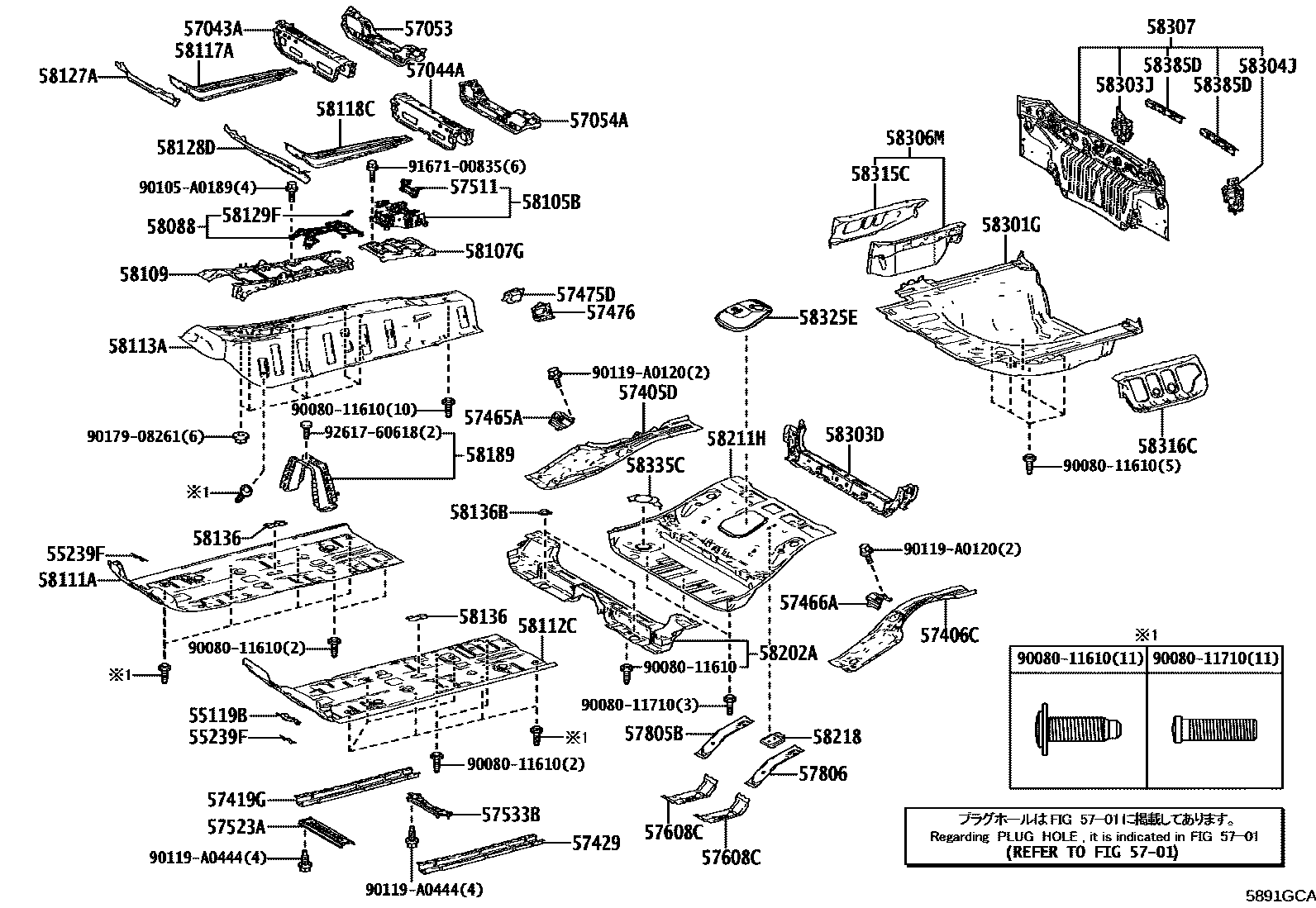

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55119BEXTENSION, DASH PANEL, LH

main55119-06050iAXVH8#202404

55239FPLATE, DASH PANEL INSULATOR, NO.3

main55239-06050iAXVH8#202404

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-06100iAXVH8#202404

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-06100iAXVH8#202404

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-06090iAXVH8#202404

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-06100iAXVH8#202404

57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH

main57405-06010iAXVH8#202404

57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH

main57406-06060iAXVH8#202404

57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-06090iAXVH8#202404

57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57419-06090iAXVH8#202404

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-06010iAXVH8#202404

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-06010iAXVH8#202404

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-06060iAXVH8#202404

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-06050iAXVH8#202404

57511REINFORCEMENT, FRONT FLOOR, CENTER

main57511-06110iAXVH8#202404

57523ABRACE, CENTER FLOOR CROSSMEMBER

main57523-06010iAXVH8#202404

57533BBRACE, FRONT FLOOR, CENTER

main57533-06070iAXVH8#202404

57608CBRACKET SUB-ASSY, FUEL TANK MOUNTING

main57608-06130iAXVH80202404

main57608-06170iAXVH85202404

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-06040iAXVH80202404

main57805-06120iAXVH85202404

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57805-06040iAXVH80202404

main57805-06120iAXVH85202404

58088BRACKET SUB-ASSY, FLOOR SHIFT LINK

main58088-06070iAXVH8#202404

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-06120iAXVH8#202404

58107GREINFORCE SUB-ASSY, PARKING BRAKE BASE

main58107-06050iAXVH8#202404

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-06010iAXVH8#202404

58111APAN, FRONT FLOOR, RH

main58111-06141iAXVH8#202404

58112CPAN, FRONT FLOOR, LH

main58112-06011iAXVH8#202404

58113APANEL, FRONT FLOOR, CENTER

main58113-06080iAXVH8#202404

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-06010iAXVH8#202404

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58117-06010iAXVH8#202404

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-06020iAXVH8#202404

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-06090iAXVH8#202404

58129FCLAMP, SHIFT & SELECT CABLE

main58129-06050iAXVH8#202404

58136COVER, FRONT FLOOR HOLE

main58136-06050iAXVH8#202404

58136BCOVER, CENTER FLOOR HOLE

main58136-06070iAXVH8#202404

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-06140iAXVH8#202404

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-06160iAXVH8#202404

58211HPAN, CENTER FLOOR

main58211-06340iAXVH85202404

main58211-06370iAXVH80202404

58218PLATE, SEAT FLOOR PANEL

main58218-06070iAXVH8#202404

58301GPAN SUB-ASSY, REAR FLOOR

main58301-06910iAXVH80202404

main58301-06913iAXVH85202404

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-06120iAXVH8#202404

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-06030iAXVH8#202404

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-06050iAXVH8#202404

58306MPANEL SUB-ASSY, REAR FLOOR SIDE

main58306-06120iAXVH8#202404

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-06221iAXVH8#202404

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-06010iAXVH8#202404

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-06040iAXVH8#202404

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06090iAXVH8#202404

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-06050iAXVH8#202404

58385DBRACKET, REAR BUMPER COVER

main58385-06150iAXVH8#202404

9008011610

main90080-11610

9008011710

main90080-11710

90105A0189

main90105-A0189

90119A0120

main90119-A0120

90119A0444

main90119-A0444

9017908261

main90179-08261

9167100835

main91671-00835

9261760618

main92617-60618

58 parts on this diagram · 2 diagrams in section
