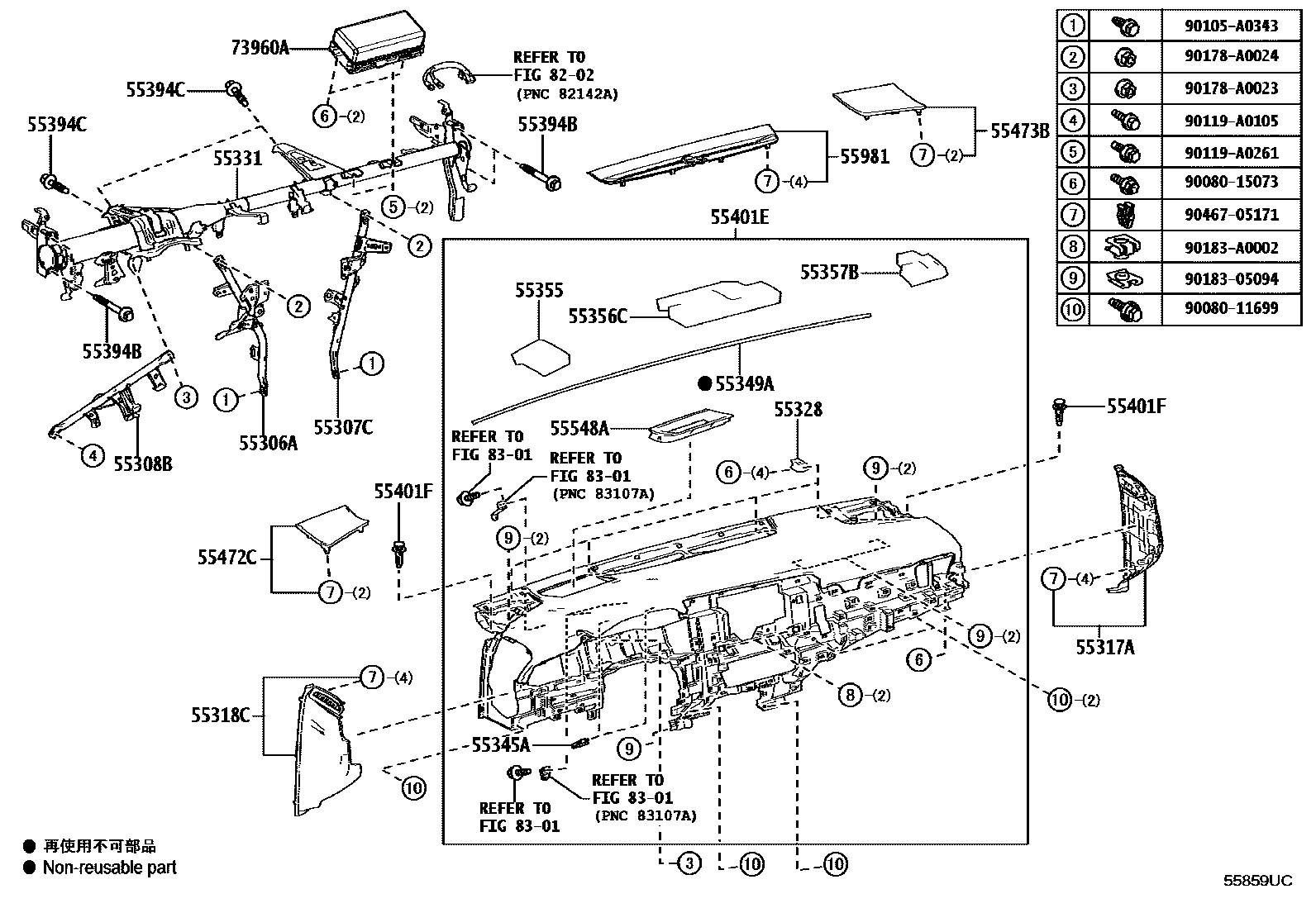

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM1#,2#
BLACK,TRIM2#,3#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#,3#
55328PIN, INSTRUMENT PANEL, NO.1
55331REINFORCEMENT, INSTRUMENT PANEL
55345ACLIP, INSTRUMENT PANEL, NO.1
55349ACUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
SOFT BLACK,TRIM1#,2#
SOFT BLACK,TRIM2#,3#
55401FCLIP(FOR SAFETY PAD)
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
55548ACOVER, INSTRUMENT PANEL HOLE
55981GARNISH, DEFROSTER NOZZLE, NO.1
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
8301
9008011699
main90080-11699
9008015073
main90080-15073
90105A0343
main90105-A0343
90119A0105
main90119-A0105
90119A0261
main90119-A0261
90178A0023
main90178-A0023
90178A0024
main90178-A0024
9018305094
main90183-05094
90183A0002
main90183-A0002
9046705171
main90467-05171
33 parts on this diagram · 4 diagrams in section
