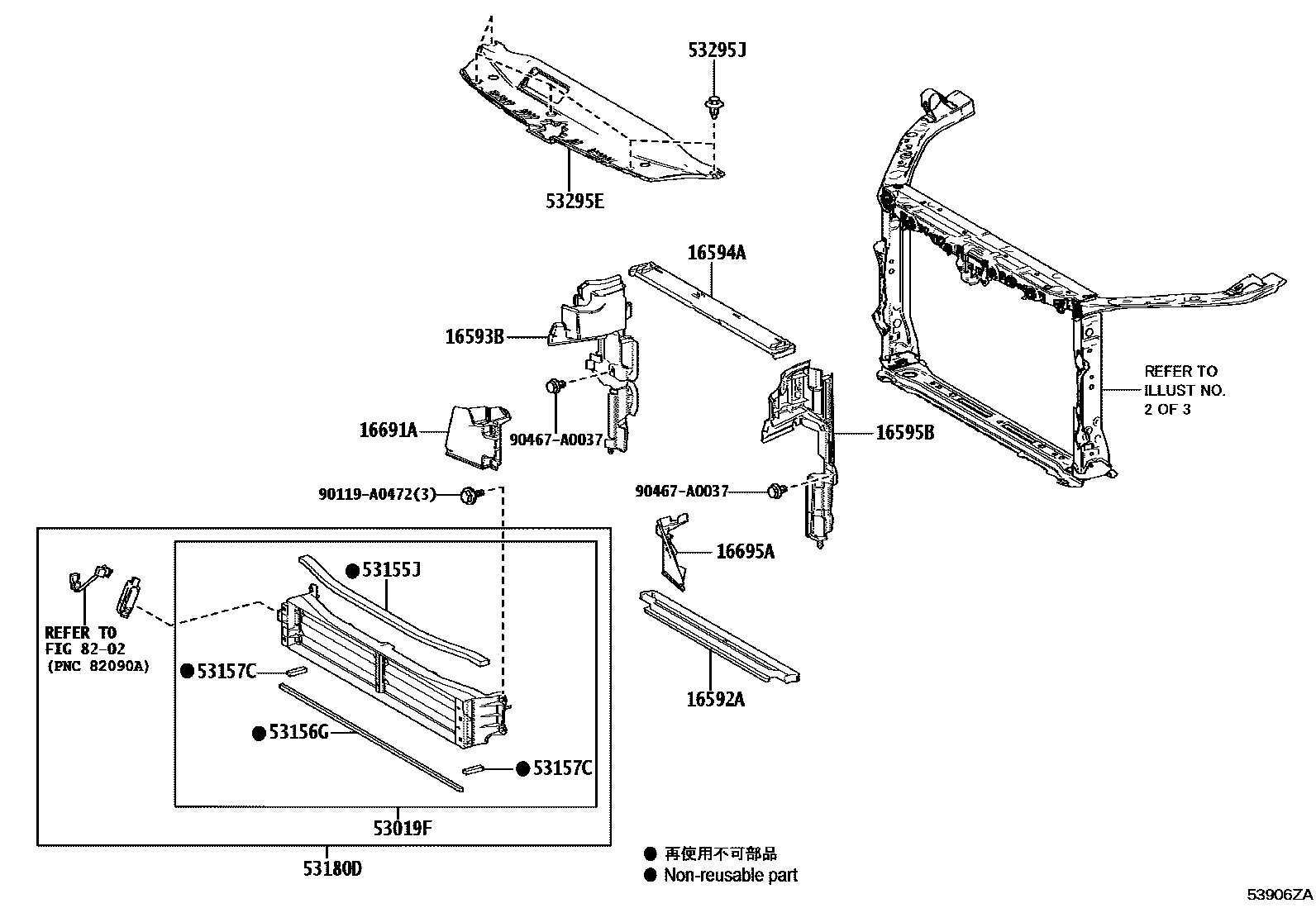

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-F0010iA25..AXVH8#202404

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-F0640iA25..AXVH8#202404

16594AGUIDE, RADIATOR AIR, NO.2

main16594-F0010iA25..AXVH8#202404

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-F0660iA25..AXVH8#202404

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-F0290iA25..AXVH8#202404

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-F0350iA25..AXVH8#202404

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-06010iAXVH8#202404

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-06040iAXVH8#202404

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-06030iAXVH8#202404

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-06050iAXVH8#202404

53180DSHUTTER ASSY, RADIATOR

main53180-06091iAXVH8#202404-202406

sub53180-06092

main53180-06092iAXVH8#202407

53295ESEAL, COOL AIR INTAKE DUCT

main53295-06180iAXVH8#202404

53295JCLIP, COOL AIR INTAKE DUCT SEAL

main90467-07217iAXVH8#202404

8202

90119A0472

main90119-A0472

90467A0037

main90467-A0037

16 parts on this diagram · 3 diagrams in section
