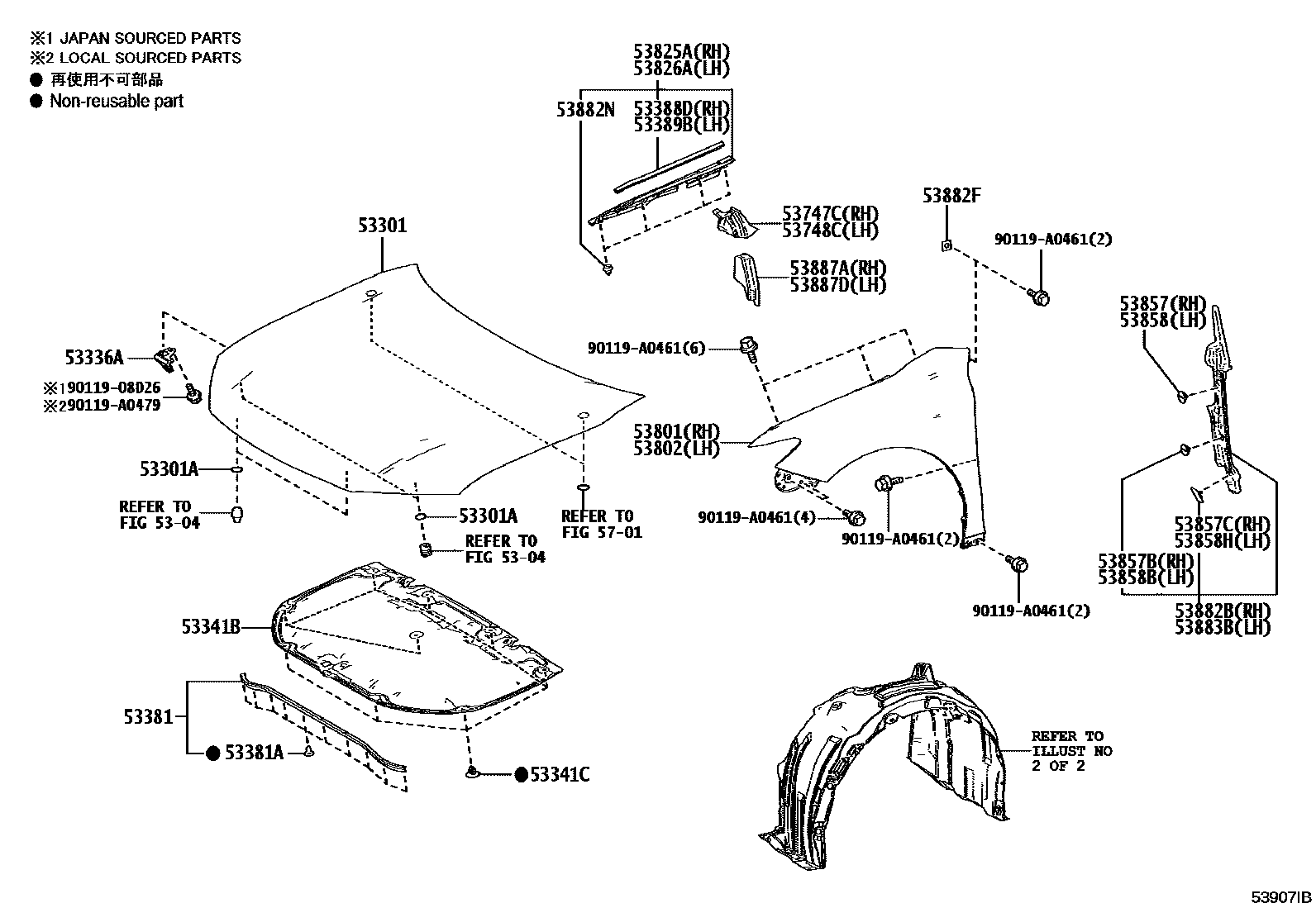

HOOD & FRONT FENDER

0001 1 0002 1

5304

53301HOOD SUB-ASSY

main53301-AQ010iAXVH8#202404

53301APLUG, HOLE(FOR HOOD)

main90950-06124iAXVH8#202404

53336ABRACKET, HOOD STAY

main53336-06140iAXVH8#202404

53341BINSULATOR, HOOD

main53341-AQ010iAXVH8#202404

53341CCLIP(FOR HOOD INSULATOR)

main90467-A0003iAXVH8#202404

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-06190iAXVH8#202404

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90080-46010iAXVH8#202404

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-06190iAXVH8#202404

53389BSEAL, HOOD TO FRONT FENDER, LH

main53388-06190iAXVH8#202404

53747CPLATE, AIR SEALED, RH

main53747-06060iAXVH8#202404

53748CPLATE, AIR SEALED, LH

main53748-06060iAXVH8#202404

53801FENDER SUB-ASSY, FRONT RH

main53801-AQ010iAXVH8#202404

53802FENDER SUB-ASSY, FRONT LH

main53802-AQ010iAXVH8#202404

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-AQ010iAXVH8#202404

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-AQ010iAXVH8#202404

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAXVH8#202404

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAXVH8#202404

53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iAXVH8#202404

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAXVH8#202404

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAXVH8#202404

53858HRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iAXVH8#202404

53882BSEAL, FRONT FENDER, RH

main53882-06170iAXVH8#202404

53882FSEAL, FRONT FENDER

main53882-30030iAXVH8#202404

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-A0006iAXVH8#202404

53883BSEAL, FRONT FENDER, LH

main53883-06160iAXVH8#202404

53887ASEAL, FRONT FENDER SPLASH SHIELD, NO.1

main53887-06010iAXVH8#202404

53887DSEAL, FRONT FENDER SPLASH SHIELD, NO.1

main53889-06100iAXVH8#202404

5701

9011908D26

main90119-08D26

90119A0461

main90119-A0461

90119A0479

main90119-A0479

32 parts on this diagram · 2 diagrams in section
