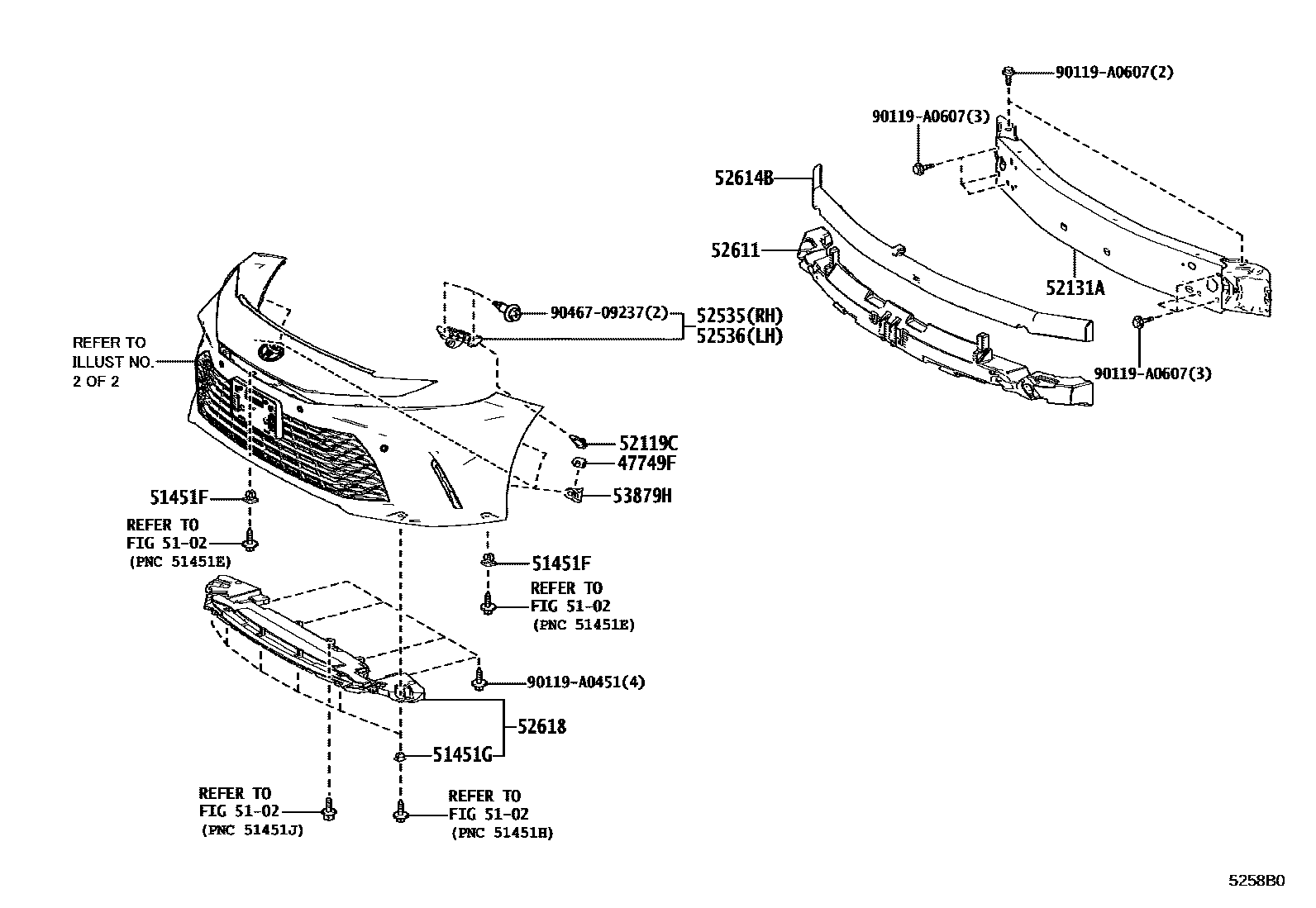

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
5102
51451FGROMMET, NO.1
51451GGROMMET, NO.2
52119CCLIP, FRONT BUMPER COVER
52131AREINFORCEMENT, FRONT BUMPER
52535RETAINER, FRONT BUMPER SIDE, RH
NO PAINT REQ.
52536RETAINER, FRONT BUMPER SIDE, LH
NO PAINT REQ.
52611ABSORBER, FRONT BUMPER ENERGY
52614BABSORBER, FRONT BUMPER ENERGY, NO.2
52618ABSORBER, FRONT BUMPER, LOWER
53879HRETAINER, FRONT FENDER LINER
90119A0451
main90119-A0451
90119A0607
main90119-A0607
9046709237
main90467-09237
15 parts on this diagram · 4 diagrams in section
