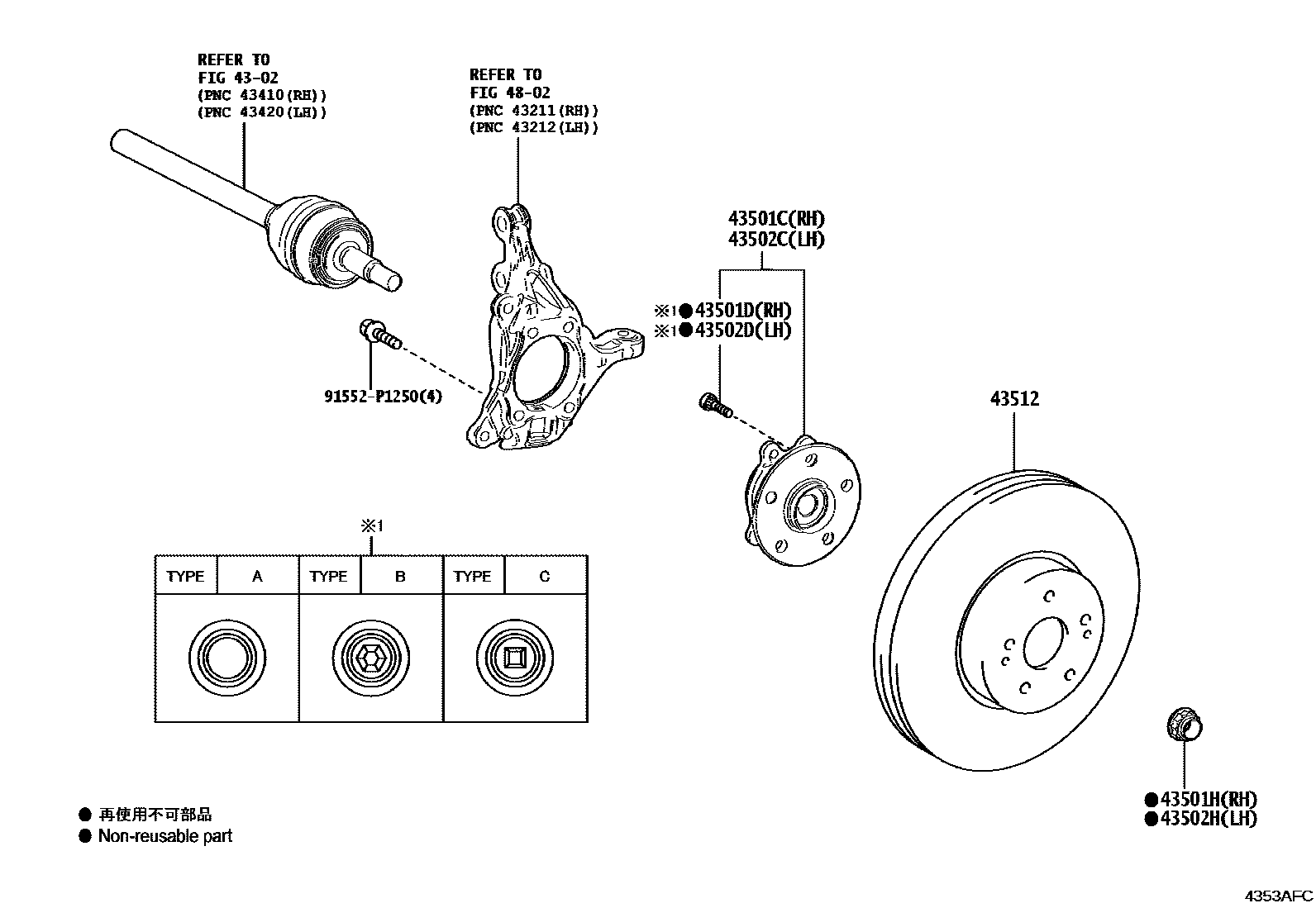

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

43501DBOLT, HUB (FOR FRONT AXLE RH)

MEXICO SPEC&TIRE&DISK WHEEL-205/65R16 6.5J IS40 ALUMINUM SUMMER,TYPE A:REFER ILLUST.

MEXICO SPEC&TIRE&DISK WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER,TYPE A:REFER ILLUST.

MEXICO SPEC&TIRE&DISK WHEEL-205/65R16 6.5J IS40 ALUMINUM SUMMER,TYPE B:REFER ILLUST.

MEXICO SPEC&TIRE&DISK WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER,TYPE B:REFER ILLUST.

MEXICO SPEC&TIRE&DISK WHEEL-205/65R16 6.5J IS40 ALUMINUM SUMMER,TYPE C:REFER ILLUST.

MEXICO SPEC&TIRE&DISK WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER,TYPE C:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

(L)

(J)

43502CHUB SUB-ASSY, FRONT AXLE, LH

43502DBOLT, HUB (FOR FRONT AXLE LH)

43502HNUT (FOR FRONT AXLE SHAFT LH)

(L)

(J)

43512DISC, FRONT

4802

91552P1250

10 parts on this diagram · 1 diagram in section
