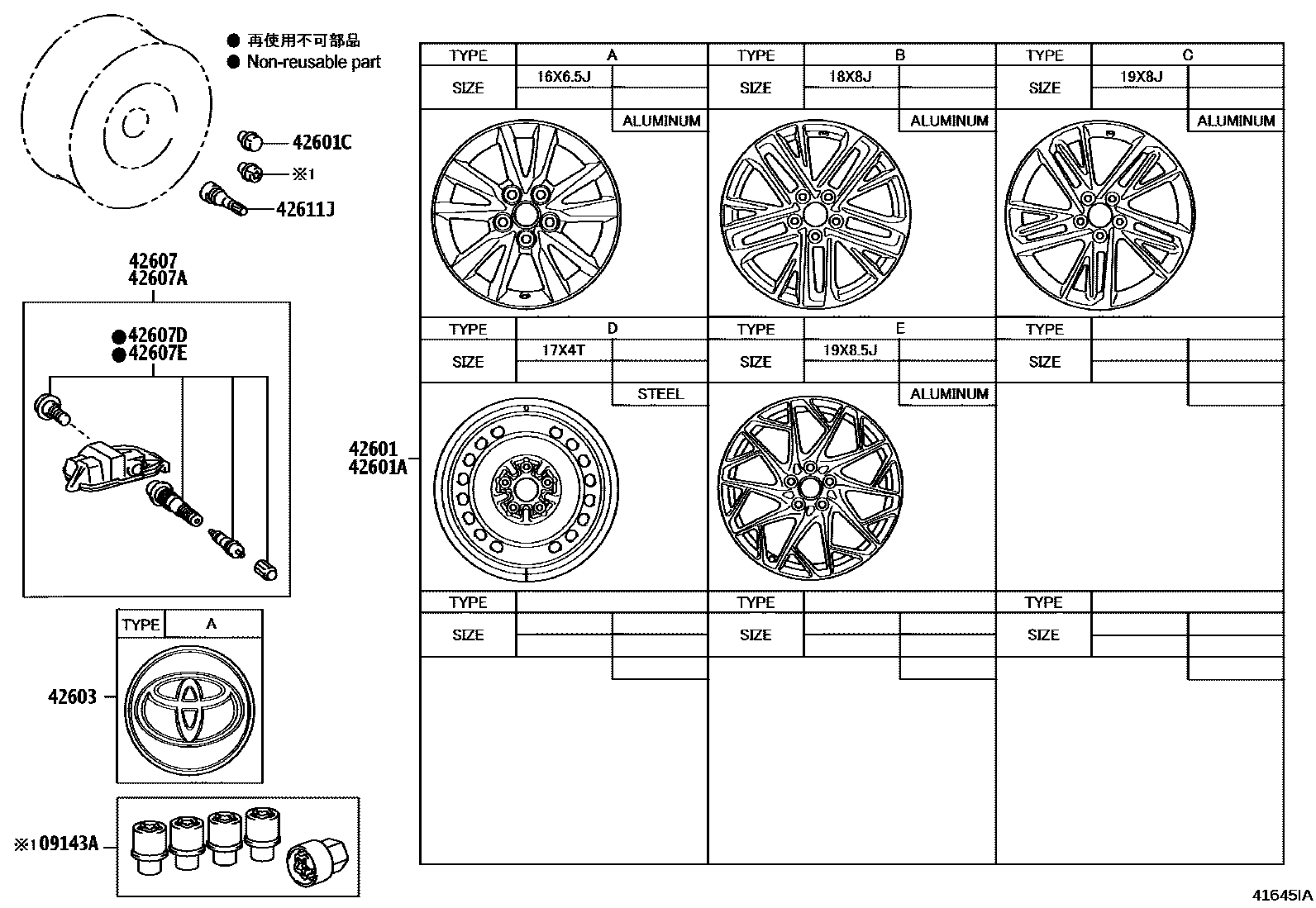

DISC WHEEL & WHEEL CAP
09143ANUT, WHEEL LOCK W/SOCKET WRENCH
42601WHEEL, DISC
16X5.5J,TYPE A:REFER ILLUST.
16X5.5J,TIRE&DISK WHEEL-205/65R16 6.5J IS40 ALUMINUM ALL SEASON,TYPE A:REFER ILLUST.
18X8J,TYPE B:REFER ILLUST.
18X8J,MEXICO SPEC&TIRE&DISK WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER,TYPE B:REFER ILLUST.
18X8J,TIRE&DISK WHEEL-235/45R18 8J IS50 ALUMINUM ALL SEASON,TYPE B:REFER ILLUST.
18X8J,TYPE B:REFER ILLUST.
18X8J,MEXICO SPEC&TIRE&DISK WHEEL-235/45R18 8J IS50 ALUMINUM SUMMER,TYPE B:REFER ILLUST.
19X8J,TYPE C:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
WHEEL LOCKS-WITH(CHROME)
WHEEL LOCKS-WITH(BLACK)
WHEEL LOCKS-WITH(CHROME)&TIRE&DISK WHEEL-205/65R16 6.5J IS40 ALUMINUM ALL SEASON
TIRE&DISK WHEEL-205/65R16 6.5J IS40 ALUMINUM ALL SEASON
WHEEL LOCKS-WITH(BLACK)
WHEEL LOCKS-WITH(BLACK)&TIRE&DISK WHEEL-235/40R19 8.5J IS45AS ILA
TIRE&DISK WHEEL-235/40R19 8.5J IS45AS ILA
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
42607DVALVE, TIRE PRESSURE MONITOR
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
10 parts on this diagram · 1 diagram in section
