FUEL INJECTION SYSTEM

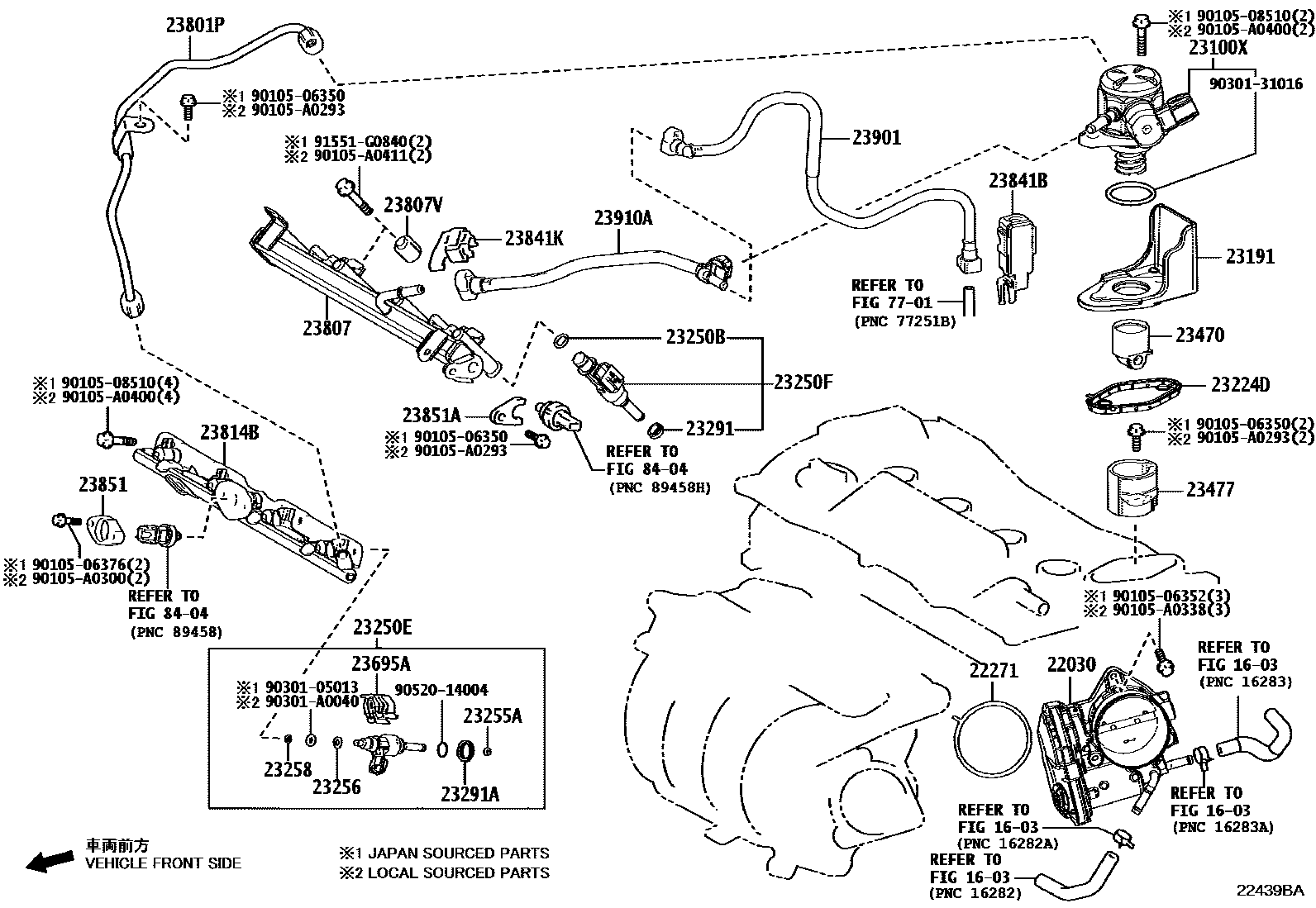

Parts diagram

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-25020i202404

*636

main22030-F0020i202404

*744 OR *745

22271GASKET, THROTTLE BODY

main22271-25020i202404

*636

main22271-F0020i202404

*744 OR *745

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-25040i202404

*636

main23101-F0010i202404

*744 OR *745

23191FLANGE, FUEL PUMP

main23191-25050i202404

*636,(J),*744 OR *745

main23214-F2080i202404

(L),*744 OR *745

23224DGASKET, FUEL PUMP SPACER

main23224-25011i202404

*636

main23224-F0011i202404

*744 OR *745

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i202404

(J),*636

main90301-A0036i202404

(L),*636,*744 OR *745

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-25010-01i202404

MARK 1,*636:REFER R/M

main23209-25010-02i202404

MARK 2,*636:REFER R/M

main23209-25010-03i202404

MARK 3,*636:REFER R/M

main23209-25010-04i202404

MARK 4,*636:REFER R/M

main23209-25010-05i202404

MARK 5,*636:REFER R/M

main23209-25010-06i202404

MARK 6,*636:REFER R/M

main23209-25010-07i202404

MARK 7,*636:REFER R/M

main23209-25010-08i202404

MARK 8,*636:REFER R/M

main23209-25010-09i202404

MARK 9,*636:REFER R/M

main23209-F0010-01i202404

MARK 1,*744OR*745:REFER R/M

main23209-F0010-02i202404

MARK 2,*744OR*745:REFER R/M

main23209-F0010-03i202404

MARK 3,*744OR*745:REFER R/M

main23209-F0010-04i202404

MARK 4,*744OR*745:REFER R/M

main23209-F0010-05i202404

MARK 5,*744OR*745:REFER R/M

main23209-F0010-06i202404

MARK 6,*744OR*745:REFER R/M

main23209-F0010-07i202404

MARK 7,*744OR*745:REFER R/M

main23209-F0010-08i202404

MARK 8,*744OR*745:REFER R/M

main23209-F0010-09i202404

MARK 9,*744OR*745:REFER R/M

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29175i202404

*636,(J),*744 OR *745

main23209-F9080i202404

(L),*744 OR *745

23255ASEAL, FUEL INJECTOR

main23255-25010i202404

*636,(J),*744 OR *745

main23255-F0010i202404

(L),*744 OR *745

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010i202404

*636,(J),*744 OR *745

main23256-F0010i202404

(L),*744 OR *745

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31010i202404

*636

main23258-36010i202404

*744 OR *745

23291INSULATOR, INJECTOR VIBRATION

main23291-0V020i202404

*744 OR *745

main23291-28020i202404

*636

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020i202404

*636,*744 OR *745

23470LIFTER ASSY, FUEL PUMP

main23470-25010i202404

*636

main23470-F0010i202404

*744 OR *745

23477GUIDE, FUEL PUMP LIFTER

main23477-25010i202404

*636,(J),*744 OR *745

main23477-F2010i202404

(L),*744 OR *745

23695ACLAMP, NOZZLE HOLDER

main23695-25010i202404

*636,*744 OR *745

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-25031i202404

*636

main23801-F0011i202404

*744 OR *745

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-25023i202404

*636

main23814-F0023i202404

*744 OR *745

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-25010i202404

*636,*744 OR *745

23814BPIPE, FUEL DELIVERY

main23814-25011i202404

*636,*744 OR *745

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31070i202404

23841KCLAMP, FUEL PIPE

main23841-F0010i202404

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202404

*636

main23851-F2010i202404

*744 OR *745

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i202404

*636,(J),*744 OR *745

main23851-F2080i202404

(L),*744 OR *745

23901TUBE SUB-ASSY, FUEL

main23901-F0022i202404

23910ATUBE SUB-ASSY, FUEL

main23901-F0111i202404

7701

8404

9010506350

main90105-06350

9010506352

main90105-06352

9010506376

main90105-06376

9010508510

main90105-08510

90105A0293

main90105-A0293

90105A0300

main90105-A0300

90105A0338

main90105-A0338

90105A0400

main90105-A0400

90105A0411

main90105-A0411

9030105013

main90301-05013

9030131016

main90301-31016

90301A0040

main90301-A0040

9052014004

main90520-14004

91551G0840

main91551-G0840

43 parts on this diagram · 1 diagram in section
