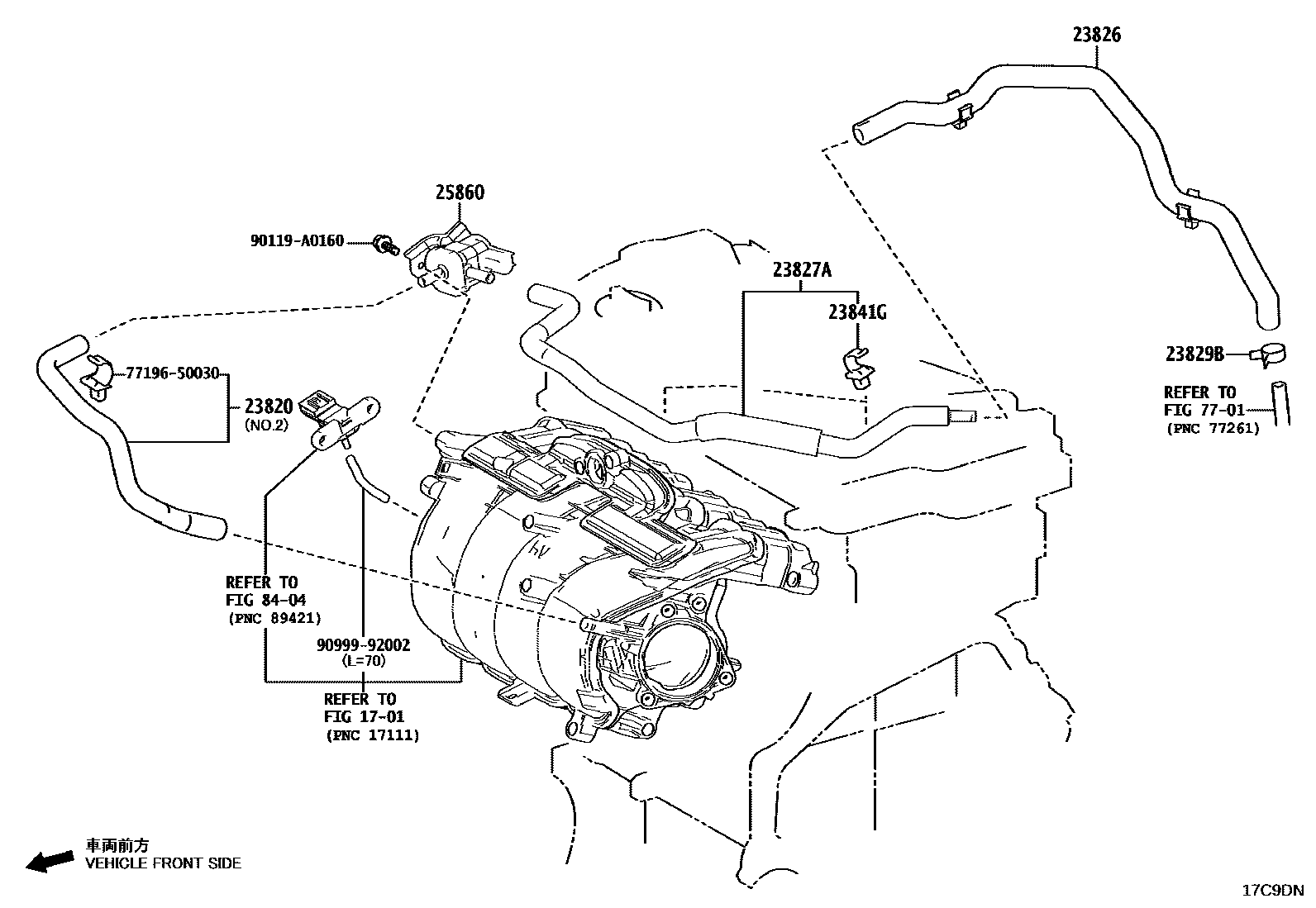

VACUUM PIPING

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-F0150iA25..AXVH8#202404

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-F0580iA25..AXVH80202404

main23820-F0590iA25..AXVH85202404

23827AHOSE, FUEL VAPOR FEED, NO.2

main23820-F0680iA25..AXVH8#202404

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-A0032iA25..AXVH8#202404

(L)

main96136-41901iA25..AXVH8#202404

(J)

23841GCLAMP, FUEL HOSE

main23841-15040iA25..AXVH8#202404

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-F0020iA25..AXVH8#202404

7701

8404

7719650030CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-50030

90119A0160

main90119-A0160

9099992002

main90999-92002

12 parts on this diagram · 1 diagram in section
