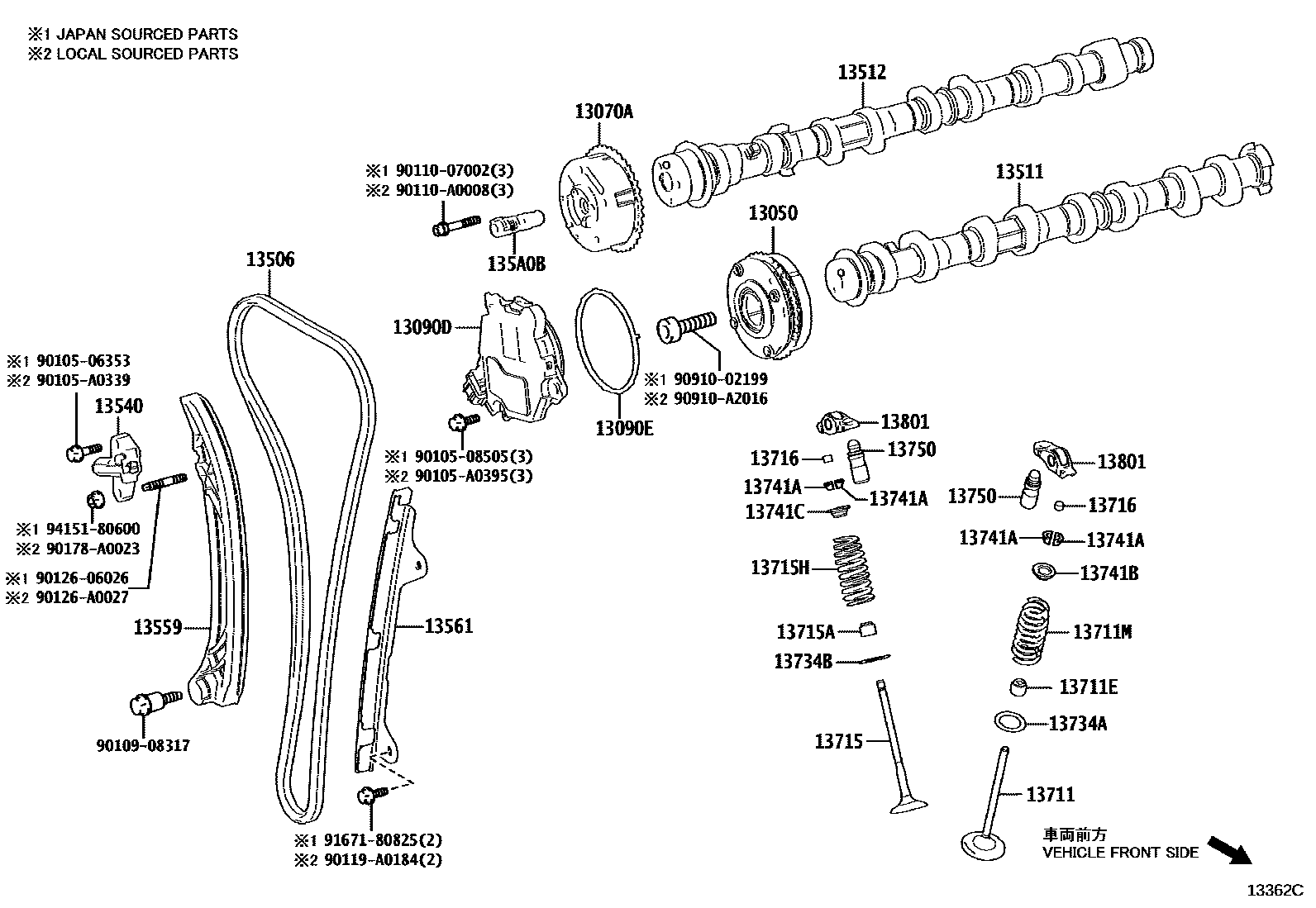

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
*636
*744 OR *745
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
*636
*744 OR *745
13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU
*636
*744 OR *745
13090ERING, O(FOR CAM TIMING CONTROL MOTOR)
*636,*744 OR *745
13506CHAIN SUB-ASSY
*636
*744 OR *745
13512CAMSHAFT, NO.2
*636
*744 OR *745
13540TENSIONER ASSY, CHAIN, NO.1
*636
*744 OR *745
13559SLIPPER, CHAIN TENSIONER
*636
*744 OR *745
13561DAMPER, CHAIN VIBRATION, NO.1
*636
*744 OR *745
135A0BVALVE ASSY, CAMSHAFT TIMING
*636
*744 OR *745
13711VALVE, INTAKE
*636
*744 OR *745
13711ESEAL, INTAKE VALVE STEM OIL
*744 OR *745
*636
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
*636
*744 OR *745
13715VALVE, EXHAUST
*636
*744 OR *745
13715ASEAL, EXHAUST VALVE STEM OIL
*744 OR *745
*636
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
*636
*744 OR *745
13716CAP, VALVE STEM
*636
*744 OR *745
13734ASEAT, INTAKE VALVE SPRING
*744 OR *745
*636
13734BSEAT, EXHAUST VALVE SPRING
*744 OR *745
*636
13741ALOCK, VALVE SPRING RETAINER
*636
*744 OR *745
13741BRETAINER, INTAKE VALVE SPRING
*744 OR *745
*636
13741CRETAINER, EXHAUST VALVE SPRING
*744 OR *745
*636
13750ADJUSTER ASSY, VALVE LASH
*636
*744 OR *745
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
*636
*744 OR *745
9010506353
main90105-06353
9010508505
main90105-08505
90105A0339
main90105-A0339
90105A0395
main90105-A0395
9010908317
main90109-08317
9011007002
main90110-07002
90110A0008
main90110-A0008
90119A0184
main90119-A0184
9012606026
main90126-06026
90126A0027
main90126-A0027
90178A0023
main90178-A0023
9091002199
main90910-02199
90910A2016
main90910-A2016
9167180825
main91671-80825
9415180600
main94151-80600
40 parts on this diagram · 1 diagram in section
