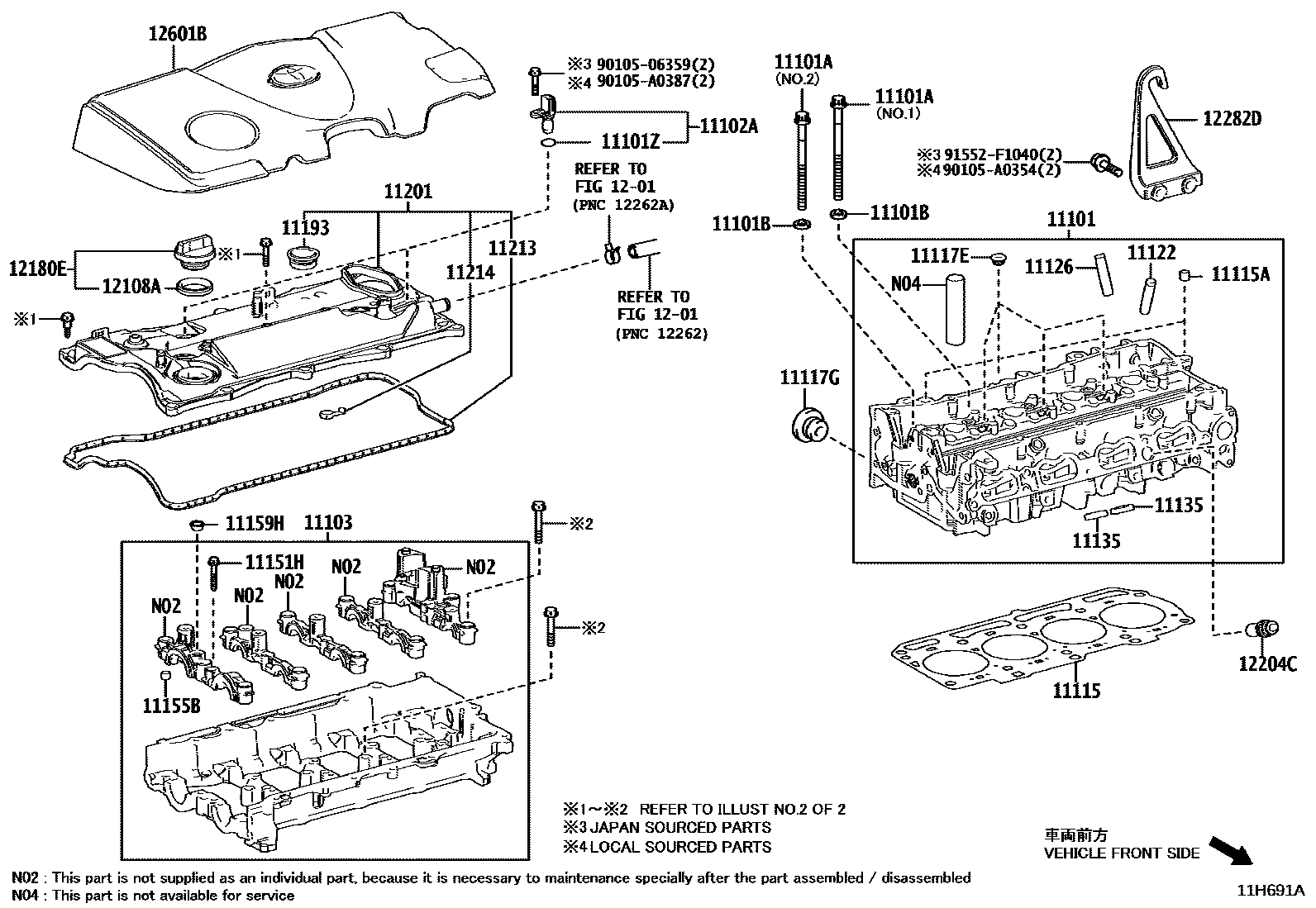

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
*636
(J),*636
*744 OR *745
(L),*636
11101ABOLT(FOR CYLINDER HEAD SET)
*636,NO.1:REFER ILL.
*636,NO.2:REFER ILL.
*744 OR *745,NO.1
*744 OR *745,NO.2
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*636,*744 OR *745
11101ZO RING, CAM POSITION SENSOR
*636,*744 OR *745
11102ASENSOR, CAMSHAFT POSITION
*636
*744 OR *745
11103HOUSING SUB-ASSY, CAMSHAFT
*636
*744 OR *745
11115GASKET, CYLINDER HEAD
*636
*744 OR *745
11115APIN, RING
*636,*744 OR *745
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J),*636
*744 OR *745
(L),*636
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
*636,*744 OR *745
11122BUSH, INTAKE VALVE GUIDE
STD,*636,*744 OR *745
O/S 0.05,*636,*744 OR *745
11126BUSH, EXHAUST VALVE GUIDE
STD,*744 OR *745
O/S 0.05,*636
O/S 0.05,*744 OR *745
11135SEAT, EXHAUST VALVE
STD,*636,*744 OR *745
O/S 0.03,*636,*744 OR *745
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*744 OR *745
11155BPIN, RING
*744 OR *745
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*636,*744 OR *745
11193GASKET, SPARK PLUG TUBE
*636
*744 OR *745
11201COVER SUB-ASSY, CYLINDER HEAD
*636
*744 OR *745
11213GASKET, CYLINDER HEAD COVER
*744 OR *745
*636
11214GASKET, CYLINDER HEAD COVER, NO.2
*744 OR *745
*636
1201
12108AGASKET(FOR OIL FILLER CAP)
*636,*744 OR *745
12180ECAP ASSY, OIL FILLER
*636,*744 OR *745
12204CVALVE SUB-ASSY, VENTILATION
*636,*744 OR *745
12282DHANGER, ENGINE, NO.2
*636,*744 OR *745
12601BCOVER SUB-ASSY, ENGINE, NO.1
9010506359
90105A0354
main90105-A0354
90105A0387
main90105-A0387
91552F1040
30 parts on this diagram · 2 diagrams in section
