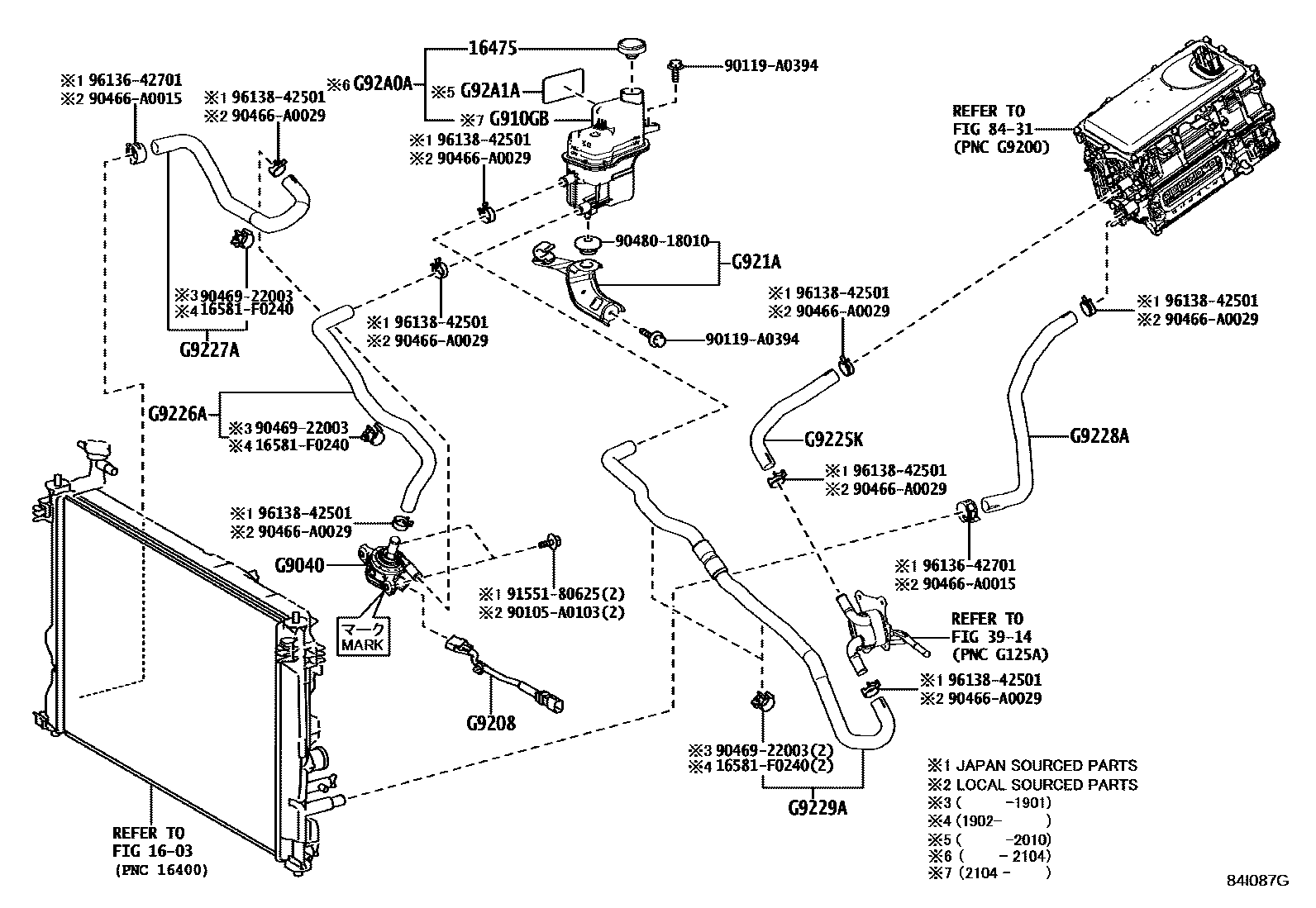

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXVH7#201706-202010

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904028020iAXVH7#202208-202304

MARK=B

subG9040-48060

mainG904033050iAXVH7#202010-202208

MARK=E

mainG904033050iAXVH7#201706-202010

mainG904048060iAXVH7#202305

MARK=B

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G06010iAXVH7#202104

G9208WIRE SUB-ASSY, INVERTER

mainG920806010iAXVH7#201706-202010

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H206010iAXVH7#201706-202301

subG91H2-06011

mainG91H206011iAXVH7#202302

G9225KHOSE, INVERTER COOLING, NO.1

mainG922506080iAXVH7#201706-202010

G9226AHOSE, INVERTER COOLING, NO.2

mainG922606041iAXVH7#201706-201901

subG9226-06042

mainG922606042iAXVH7#201902-202010

G9227AHOSE, INVERTER COOLING, NO.3

mainG922706040iAXVH7#201706-201901

subG9227-06041

mainG922706041iAXVH7#201902-202010

G9228AHOSE, INVERTER COOLING, NO.4

mainG922806090iAXVH7#201706-202010

G9229AHOSE, INVERTER COOLING, NO.5

mainG922906051iAXVH7#201706-201901

subG9229-06052

mainG922906052iAXVH7#201902-202010

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H006010iAXVH7#201706-202104

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iAXVH7#201706-202010

16581F0240CLAMP, HOSE(FOR WATER HOSE)

main16581-F0240

90105A0103

main90105-A0103

90119A0394

main90119-A0394

90466A0015

main90466-A0015

90466A0029

main90466-A0029

9046922003

main90469-22003

9048018010

main90480-18010

9155180625

main91551-80625

9613642701

main96136-42701

9613842501

main96138-42501

25 parts on this diagram · 1 diagram in section
