HEV INVERTER

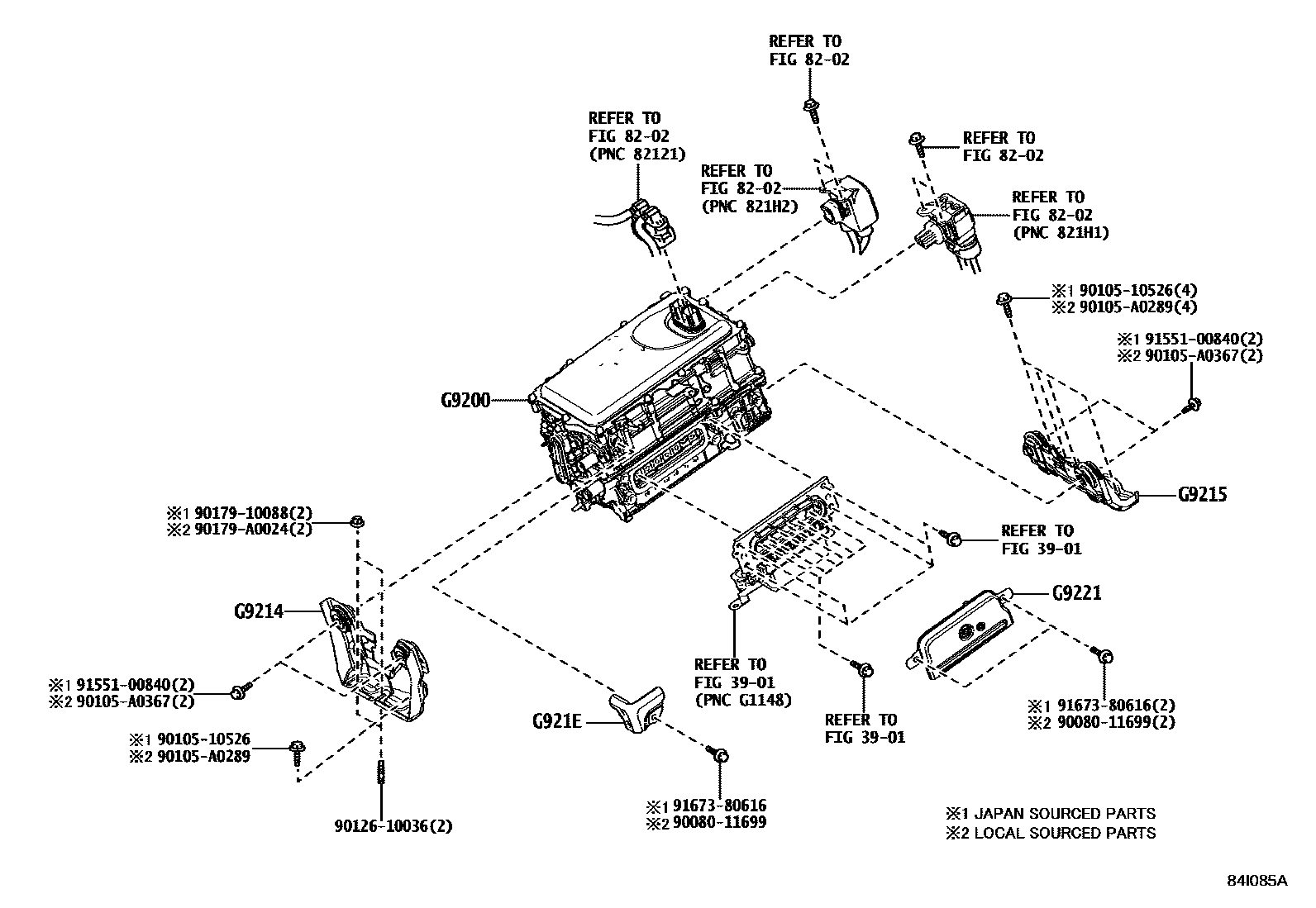

Parts diagram

3901

8202

G9200INVERTER ASSY, W/CONVERTER

mainG92A033030i201706-201801

subG92A0-33031¥341,000

mainG92A033031i201801-202106

subG92A0-33032¥341,000

mainG92A033032i202107-202204

subG92A0-33033¥309,000

mainG92A033033i202205

G9214BRACKET, INVERTER, NO.1

mainG921433040i201706-202010

G9215BRACKET, INVERTER, NO.2

mainG921533040i201706-202010

G921EPROTECTOR, INVERTER

mainG921E47010i201706-202010

G9221COVER, INVERTER

mainG902247050i201706-202010

9008011699

main90080-11699¥110

9010510526

main90105-10526¥100

90105A0289

main90105-A0289

90105A0367

main90105-A0367

9012610036

main90126-10036¥100

9017910088

main90179-10088¥100

90179A0024

main90179-A0024

9155100840

main91551-00840¥80

9167380616

main91673-80616¥60

16 parts on this diagram · 2 diagrams in section
