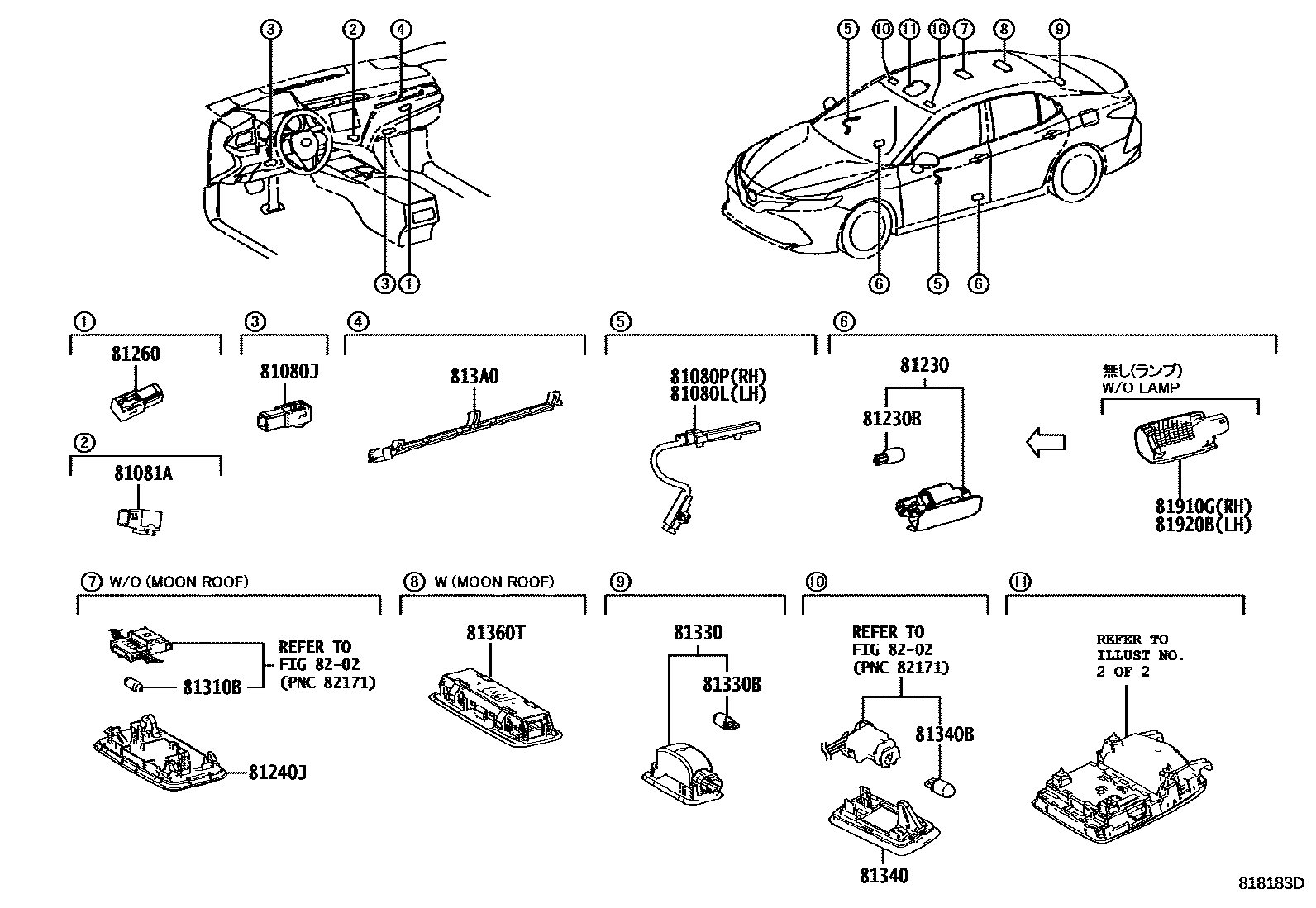

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33280iAXVA75..XLE,XSE201706-202010

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-33160iAXVA7#,AXVH7#,GSV70..XLE,XSE201706-202010

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-33150iAXVA70,AXVH7#,GSV70..XLE,XSE201706-202010

81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2

main81080-33300iAXVA70,AXVH7#,GSV70..XLE,XSE201706-202010

81230LAMP ASSY, COURTESY

main81230-06040iAXVA70,AXVH7#,GSV70..XLE,XSE201706-202010

81230BBULB(FOR COURTESY LAMP)

main90981-12010iAXVA70,AXVH7#,GSV70..XLE,XSE201706-202010

12V 5W

81240JLAMP ASSY, ROOM

main81240-35020-B2iAXVH70..LE;AXVA70,AXVH71..LE,SE201706-202010

MOON ROOF-WITH,GRAY,TRIM1#,2#

sub81240-35020

sub81240-42020

main81240-35020-B2iAXVH70..LE;AXVA70,AXVH71..LE,SE201706-202010

GRAY,TRIM1#,2#

sub81240-35020

sub81240-42020

main81240-35020-B2iGSV70..XSE201909-202010

MOON ROOF-WITHOUT,GRAY,TRIM2#

sub81240-35020

sub81240-42020

main81240-35020-E1iAXVA70,AXVH70..LE201706-202010

NEUTRAL BEIGE,TRIM4#

sub81240-35020

sub81240-42020

main81240-35020-E1iAXVA70,AXVH70..LE201706-202010

MOON ROOF-WITH,NEUTRAL BEIGE,TRIM4#

sub81240-35020

sub81240-42020

main81240-42020-B1iAXVA7#,AXVH7#..LE,SE202010

TRD PACKAGE,GRAY,TRIM2#

main81240-42020-B1iAXVA7#,AXVH7#..LE,SE202010

GRAY,TRIM1#,2#

main81240-42020-E1iAXVA7#,AXVH70..LE202010

NEUTRAL BEIGE,TRIM4#

81260LAMP ASSY, GLOVE BOX

main81080-33290iAXVA7#,AXVH7#,GSV70201706-202010

81310BBULB, REAR ROOM LAMP

main90981-14011iAXVA75..LE,SE201706-202010

12V 8W

main90981-14011iAXVA70,AXVH7#..LE,N,SE201706-202010

12V 8W,MOON ROOF-WITH

main90981-14011iGSV70..XSE202010

12V 8W,TRD PACKAGE

main90981-14011iGSV70..XSE201909-202010

12V 8W,MOON ROOF-WITHOUT

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iAXVA70,AXVH7#,GSV70201706-202010

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAXVA70,AXVH7#,GSV70201706-202010

12V 5W

81340LAMP ASSY, VANITY

main81340-06030iAXVH70;AXVA75..LE,SE;AXVA70,AXVH71..LE,SE,XLE202010-202108

TRD PACKAGE

main81340-06030iAXVH70;AXVA75..LE,SE;AXVA70,AXVH71..LE,SE,XLE201706-202108

MOON ROOF-WITH

main81340-06030iAXVH70;AXVA75..LE,SE;AXVA70,AXVH71..LE,SE,XLE201706-202108

MOON ROOF-WITH(PANORAMA ROOF)

main81340-06030iGSV70201706-202010

MOON ROOF-WITHOUT

main81340-33170iAXVA7#,AXVH7#..LE,SE202108

RV PACKAGE&MOON ROOF-WITH

main81340-33170iAXVA70..XLE202108-202208

MOON ROOF-WITH

main81340-33170iGSV70..XSE202108-202407

TRD PACKAGE

main81340-33170iGSV70202108

MOON ROOF-WITH(PANORAMA ROOF)

main81340-33170iGSV70202108

RV PACKAGE

81340BBULB (FOR VANITY LAMP)

main90981-11062iGSV70201706-202108

12V 8W

main90981-11062iGSV70201706-202108

12V 8W,MOON ROOF-WITH

main90981-11062iGSV70201706-202108

12V 8W,MOON ROOF-WITH(PANORAMA ROOF)

main90981-11062iGSV70201706-202010

12V 8W,MOON ROOF-WITHOUT

main90981-11062iGSV70202010-202108

12V 8W,TRD PACKAGE

81360TLAMP ASSY, SPOT

main81360-07040-B2iAXVA70..XSE202003-202010

GRAY,TRIM1#,2#,3#

main81360-07040-B2iAXVA70,AXVH71..XLE202003-202010

GRAY,TRIM1#,2#

main81360-07040-B2iAXVA70,AXVH71..XLE202003-202010

MOON ROOF-WITH,GRAY,TRIM1#,2#

main81360-07040-B2iAXVA75..XLE202003-202010

MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM1#,2#,3#

main81360-07040-B2iAXVA75..XLE202003-202010

MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM1#,2#

main81360-07040-E0iAXVA75..XLE202003-202010

MOON ROOF-WITH(PANORAMA ROOF),NEUTRAL BEIGE,TRIM4#

main81360-07040-E0iAXVA75..XLE202003-202010

MOON ROOF-WITH,NEUTRAL BEIGE,TRIM4#

main81360-07040-E0iAXVA75..XLE202003-202010

NEUTRAL BEIGE,TRIM4#

main81360-33070-B0iAXVA70,GSV70..XSE201706-202003

MOON ROOF-WITH,GRAY,TRIM1#,2#

main81360-33070-B0iAXVA70,GSV70..XSE201706-202003

MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM1#,2#,3#

main81360-33070-B0iAXVA70,GSV70..XSE201706-202003

MOON ROOF-WITH(PANORAMA ROOF),GRAY,TRIM1#,2#

main81360-33070-B0iAXVA70,AXVH7#,GSV70..XLE201706-202003

GRAY,TRIM1#,2#,3#

main81360-33070-B0iAXVA70,AXVH7#,GSV70..XLE201706-202003

GRAY,TRIM1#,2#

main81360-33070-E0iAXVA70,AXVH7#,GSV70..XLE201706-202003

NEUTRAL BEIGE,TRIM4#

main81360-33070-E0iAXVA70,AXVH71..XLE201706-202003

MOON ROOF-WITH,NEUTRAL BEIGE,TRIM4#

main81360-33070-E0iAXVA70,AXVH70..LE201706-202003

MOON ROOF-WITH(PANORAMA ROOF),NEUTRAL BEIGE,TRIM4#

813A0LAMP ASSY, INSTRUMENT PANEL

main813A0-06010iAXVA7#,AXVH7#,GSV70..XLE,XSE202003-202010

main813A0-06010iGSV70..XSE201706-202407

TRD PACKAGE

81910GLENS, REFLEX REFLECTOR, FRONT RH

main81911-28020iAXVA75..LE,SE202003-202010

main81911-28020iGSV70..XSE201909-202010

TRD PACKAGE

81920BLENS, REFLEX REFLECTOR, FRONT LH

main81911-28020iGSV70..XSE201909-202010

TRD PACKAGE

main81911-28020iAXVA75..LE,SE202003-202010

8202

18 parts on this diagram · 2 diagrams in section
