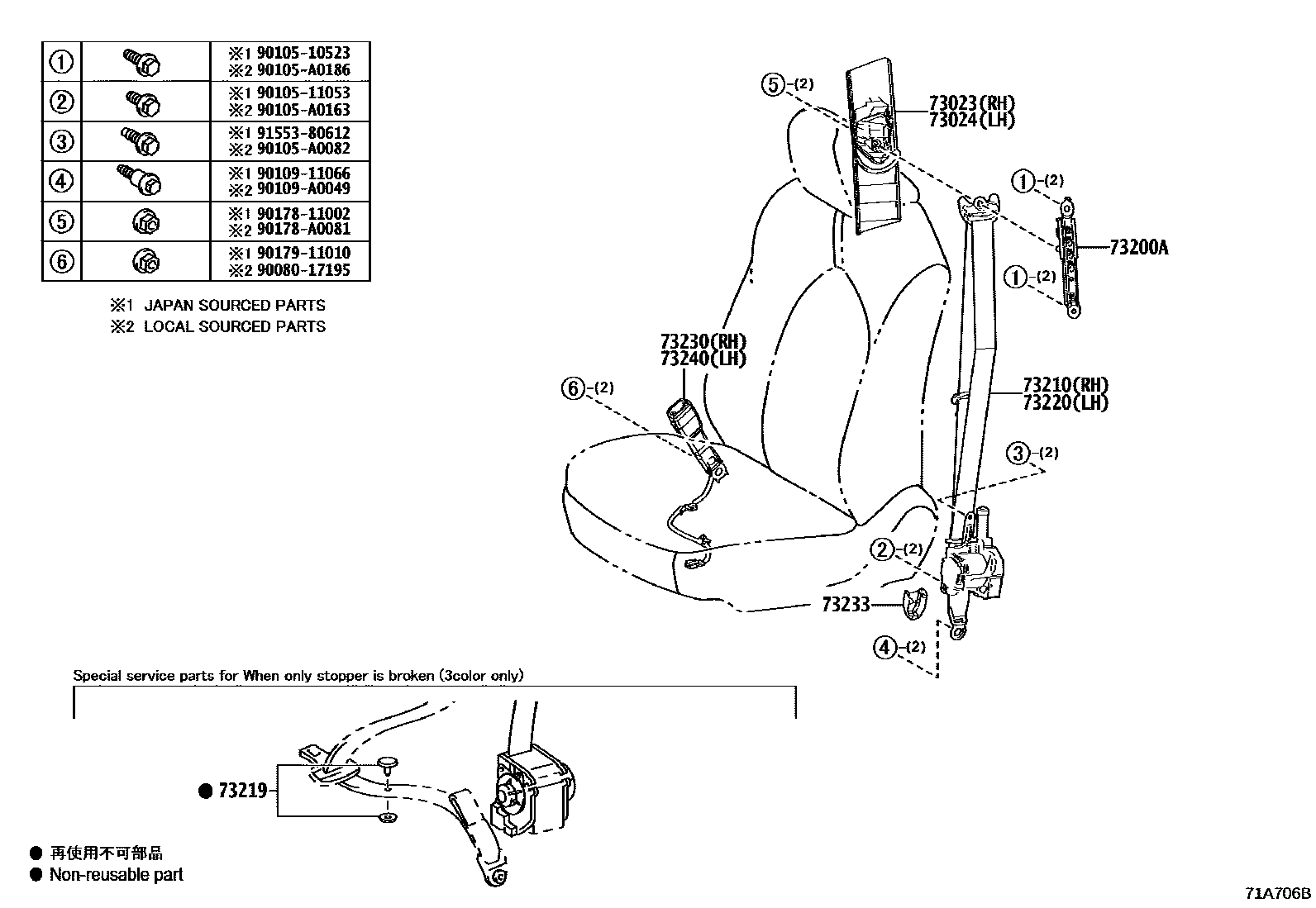

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-04040-B3iAXVA70,AXVH7#,GSV70..LE,N,SE,XLE201706-202010

GRAY,TRIM1#,2#,3#

main73023-04040-B3iAXVA70,AXVH7#,GSV70..LE,N,SE,XLE201706-202010

GRAY,TRIM1#,2#

main73023-04040-E0iAXVA70,AXVH7#,GSV70..LE,N,XLE201706-202010

NEUTRAL BEIGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-04040-B3iAXVA75..LE,SE,XLE201706-202010

GRAY,TRIM1#,2#

main73024-04040-B3iAXVA70,GSV70..XSE201706-202010

GRAY,TRIM1#,2#,3#

main73024-04040-E0iAXVA7#,AXVH7#,GSV70..LE,XLE201706-202010

NEUTRAL BEIGE,TRIM4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0C020iAXVA75201706-202010

main73200-0R010iAXVA7#,AXVH7#,GSV70202010

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-06420-A0iAXVA70,AXVH7#,GSV70..LE,N,XLE201706-201808

BEIGE,TRIM4#

sub73210-06420

main73210-06420-A1iAXVA70,AXVH7#,GSV70..LE,XLE201808-202010

IVORY,TRIM4#

sub73210-06420

main73210-06420-C1iAXVA70,GSV70..XSE201706-201808

BLACK,TRIM1#,2#,3#

sub73210-06420

main73210-06420-C1iAXVA70,GSV70..XSE201706-201808

BLACK,TRIM1#,2#

sub73210-06420

main73210-06420-C4iAXVA70,AXVH7#,GSV70..LE,SE,XLE201808-202010

BLACK,TRIM1#

sub73210-06420

main73210-06420-C4iAXVA70,AXVH7#,GSV70..LE,SE,XLE201808-202010

BLACK,TRIM1#,2#

sub73210-06420

main73210-06420-C4iAXVA70,GSV70..XSE201808-202010

BLACK,TRIM1#,2#,3#

sub73210-06420

73219STOPPER, TONGUE PLATE

main73219-02010iAXVA7#,AXVH7#,GSV70201706-202010

BLACK

main73219-02020iAXVA7#,AXVH7#,GSV70201706-202010

GRAY

main73219-02030iAXVA75201706-202010

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-06390-A0iAXVA70,AXVH7#,GSV70..LE,N,XLE201706-201808

BEIGE,TRIM4#

sub73220-06390

main73220-06390-A3iAXVA7#,AXVH7#,GSV70..LE,XLE201808-202010

IVORY,TRIM4#

sub73220-06390

main73220-06390-C1iAXVA70,AXVH7#,GSV70..LE,N,SE,XLE201706-201808

BLACK,TRIM1#,2#

sub73220-06390

main73220-06390-C1iAXVA70,GSV70..XSE201706-201808

BLACK,TRIM1#,2#,3#

sub73220-06390

main73220-06390-C3iAXVA75..XSE201808-202010

BLACK,TRIM1#,2#

sub73220-06390

main73220-06390-C3iAXVA70,GSV70..XSE201808-202010

BLACK,TRIM1#,2#,3#

sub73220-06390

main73220-06390-C3iAXVA70,GSV70..XSE201808-202010

BLACK,TRIM1#

sub73220-06390

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-06750-C0iAXVA70,AXVH7#..LE,N,SE201706-202010

BLACK,TRIM1#,2#

main73230-06750-C0iAXVA7#,AXVH7#..LE,SE202010

TRD PACKAGE,BLACK,TRIM2#

main73230-06750-E0iAXVA75..LE201706-202010

NEUTRAL BEIGE,TRIM4#

main73230-06B20-C0iAXVA75..XLE201706-202010

BLACK,TRIM1#,2#

main73230-06B20-C0iAXVA75..XLE201706-202010

BLACK,TRIM1#,2#,3#

main73230-06B20-E0iAXVA7#,AXVH7#,GSV70..XLE201706-202010

NEUTRAL BEIGE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-C1iAXVA75..SE201706-202010

BLACK,TRIM1#,2#,4#

main73233-0C010-C1iAXVA75..XSE201706-202010

BLACK,TRIM1#,2#

main73233-0C010-C1iAXVA75..XSE201706-202010

BLACK,TRIM1#,2#,3#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-06740-C0iAXVA70..N201706-202010

BLACK,TRIM1#,2#

main73230-06740-C0iAXVA70..N201706-202010

CANADA SPEC&WITH(*DRP:MANUAL SEAT),BLACK,TRIM1#,2#

main73230-06740-C0iAXVA70..N201706-202010

MEXICO SPEC&WITH(*DRP:MANUAL SEAT),BLACK,TRIM1#,2#

main73230-06740-C0iAXVA70..N201706-202010

USA POSSESSION SPEC&WITH(*DRP:MANUAL SEAT),BLACK,TRIM1#,2#

main73230-06740-C0iAXVA70..N201706-202010

PUERTO RICO SPEC&WITH(*DRP:MANUAL SEAT),BLACK,TRIM1#,2#

main73230-06740-E0iAXVA70..LE201706-202010

NEUTRAL BEIGE,TRIM4#

main73230-06740-E0iAXVA70..N201706-202010

CANADA SPEC&WITH(*DRP:MANUAL SEAT),NEUTRAL BEIGE,TRIM4#

main73230-06740-E0iAXVA70..N201706-202010

MEXICO SPEC&WITH(*DRP:MANUAL SEAT),NEUTRAL BEIGE,TRIM4#

main73230-06740-E0iAXVA70..N201706-202010

USA POSSESSION SPEC&WITH(*DRP:MANUAL SEAT),NEUTRAL BEIGE,TRIM4#

main73230-06740-E0iAXVA70..N201706-202010

PUERTO RICO SPEC&WITH(*DRP:MANUAL SEAT),NEUTRAL BEIGE,TRIM4#

main73230-06760-C0iAXVA70,AXVH7#,GSV70..LE,SE,XLE201706-202010

BLACK,TRIM1#,2#

main73230-06760-C0iAXVA70,AXVH7#,GSV70..LE,SE,XLE201706-202010

BLACK,TRIM1#,2#,3#

main73230-06760-E0iAXVA70,AXVH7#,GSV70..LE,XLE201706-202010

NEUTRAL BEIGE,TRIM4#

9008017195

main90080-17195

9010510523

main90105-10523

9010511053

main90105-11053

90105A0082

main90105-A0082

90105A0163

main90105-A0163

90105A0186

main90105-A0186

9010911066

main90109-11066

90109A0049

main90109-A0049

9017811002

main90178-11002

90178A0081

main90178-A0081

9017911010

main90179-11010

9155380612

main91553-80612

21 parts on this diagram · 2 diagrams in section
