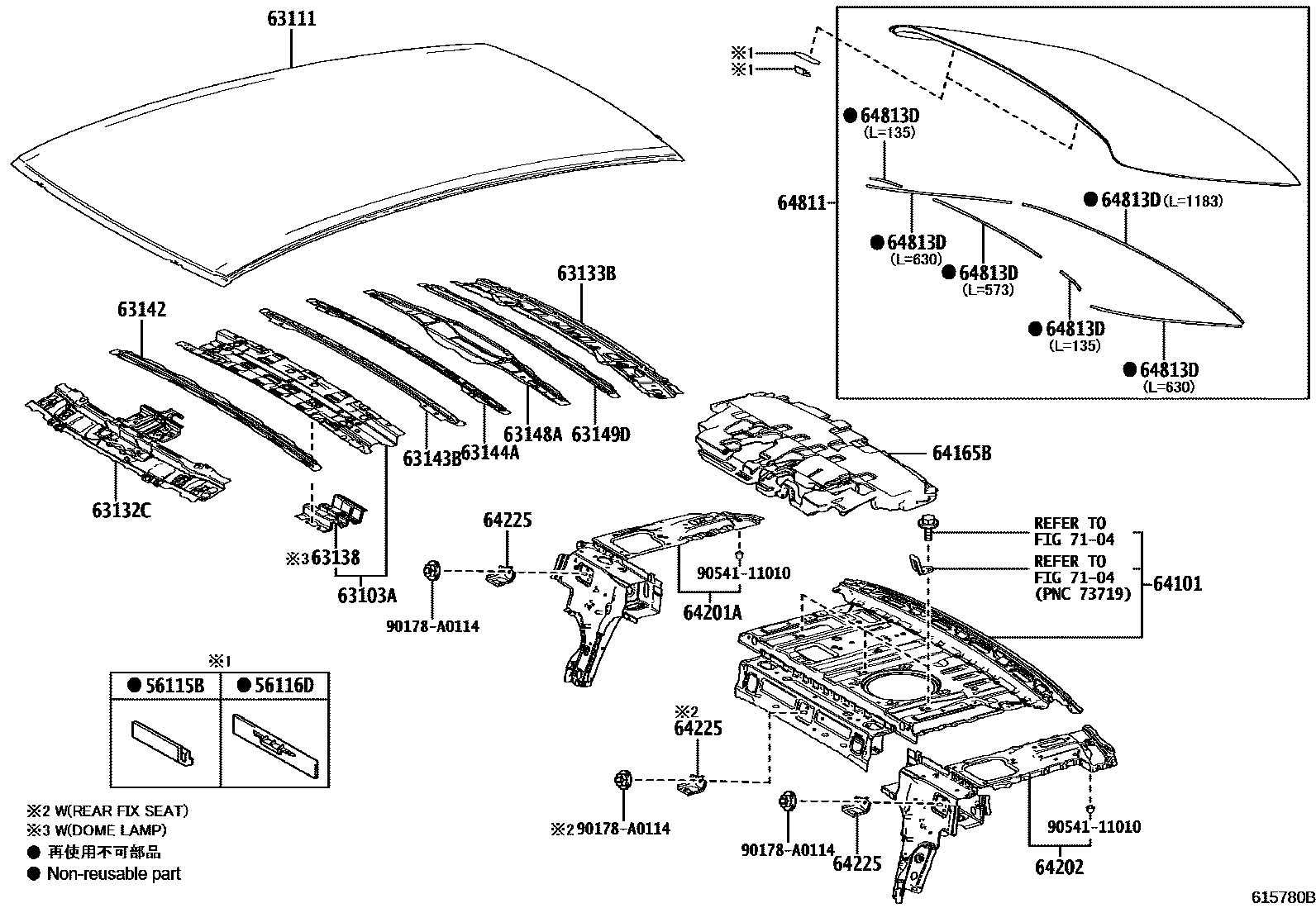

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL) 0002 1ROOF PANEL(MOON) 0003 1ROOF PANEL(PANORAMA) 0004 1SLIDING ROOF(MOON) 0005 1SLIDING ROOF(PANORAMA)

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iAXVA70,AXVH7#,GSV70201706-202010

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iAXVA70,AXVH7#,GSV70201706-202010

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-06130iAXVA75..LE,SE202003-202010

main63103-06160iAXVA7#,AXVH7#..XLE,XSE202010

63111PANEL, ROOF

main63111-06600iAXVH71202010

TRD PACKAGE

main63111-06650supersedes 63111-06600iAXVA70,AXVH7#201706-201809

main63111-06660supersedes 63111-06600iAXVH71201809-201909

CANADA SPEC&MOON ROOF-WITH&MAYDAY SYSTEM-WITHOUT

63132CPANEL, WINDSHIELD HEADER, INNER

main63102-06916iAXVA70,AXVH7#201706-202010

63133BFRAME, BACK WINDOW

main63133-06160iGSV70..XSE202010

TRD PACKAGE

63138BRACKET, DOME LAMP, NO.2

main63138-06130iGSV70..XSE202010

TRD PACKAGE

63142REINFORCEMENT, ROOF PANEL, NO.2

main63143-06120iGSV70..XSE202010

TRD PACKAGE

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63128-06010iGSV70..XSE202010

TRD PACKAGE

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-06230iGSV70..XSE202010

TRD PACKAGE

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-06130iAXVA70,AXVH7#,GSV70201706-202010

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-06080iAXVA70,AXVH7#,GSV70201706-202010

64101PANEL SUB-ASSY, UPPER BACK

main64101-06430iAXVA70,AXVH7#,GSV70201706-202010

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-06290iGSV70..XSE202010

AUDIO-7INCH *DA & 6SPEAKER & XM TUNER

main64165-06360iGSV70202010

AUDIO-9INCH *DA & JBL & 9SPEAKER

64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH

main64201-06180iAXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE201706-201806

main64201-06230iAXVA75202003-202010

64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH

main64202-06180iAXVA70..N201706-202010

main64202-06230iAXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE201806-202010

64225HANGER, REAR SEAT CUSHION SUPPORT

main64225-06010×2iGSV70..XSE202010

TRD PACKAGE

64811GLASS, BACK WINDOW

main64801-06220iAXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE201706-201907

main64801-06221iAXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE201908-202010

main64801-06230iAXVA70..N201706-201907

main64801-06231iAXVA70..N201908-202010

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-06180iAXVA70,AXVH7#,GSV70201706-202010

L=1183

main64813-06220×2iAXVA7#,AXVH7#,GSV70202010

L=630

main64813-06230iAXVA7#,AXVH7#,GSV70202010

L=573

main64813-06440×2iAXVA75202003-202010

L=135

7104

90178A0114

main90178-A0114

9054111010

main90541-11010

22 parts on this diagram · 5 diagrams in section
